Oldsmobile
>>
1983
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Panel Circuit Board
>>
Less Gauges
Less Gauges

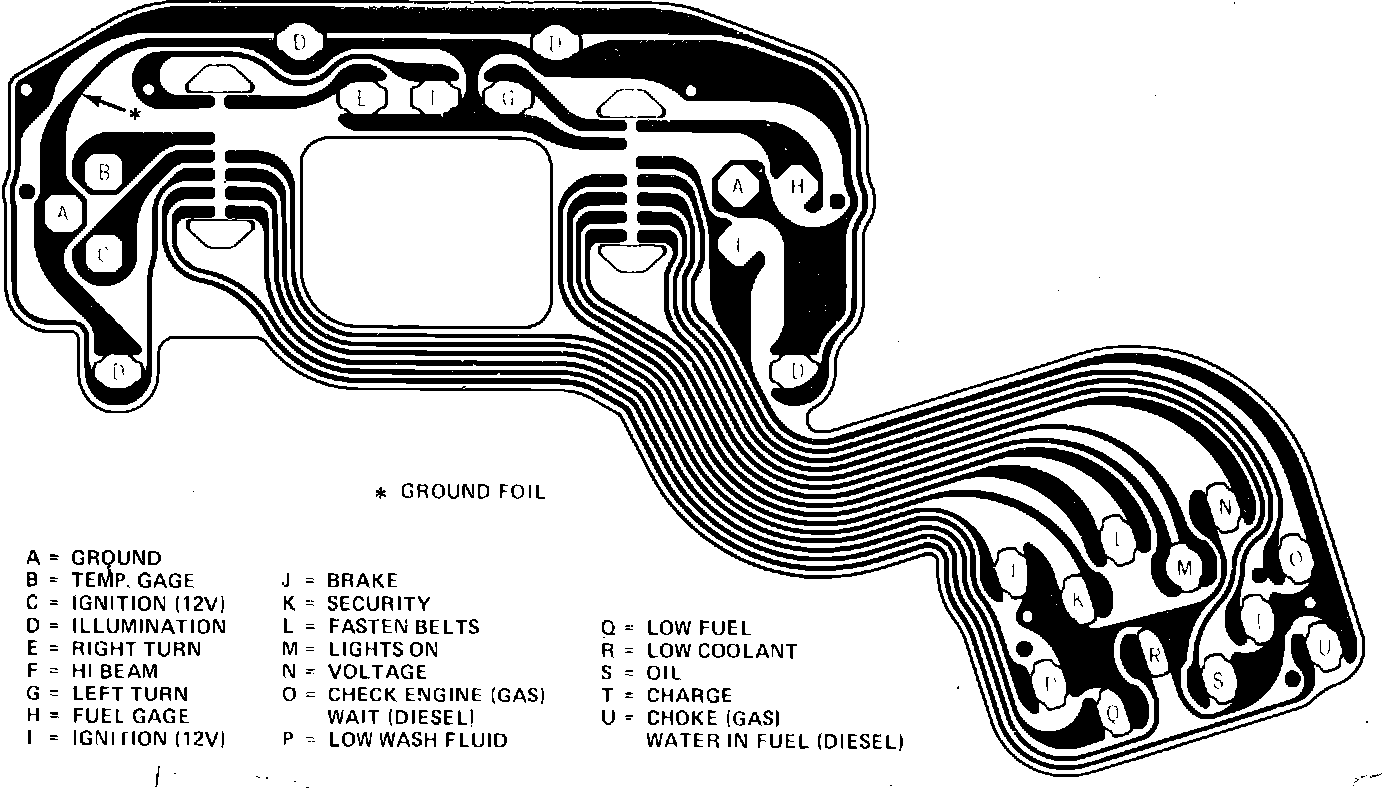

Instrument Panel Printed Circuit (Less Gauges):
