Inner Constant Velocity Joint & Seal

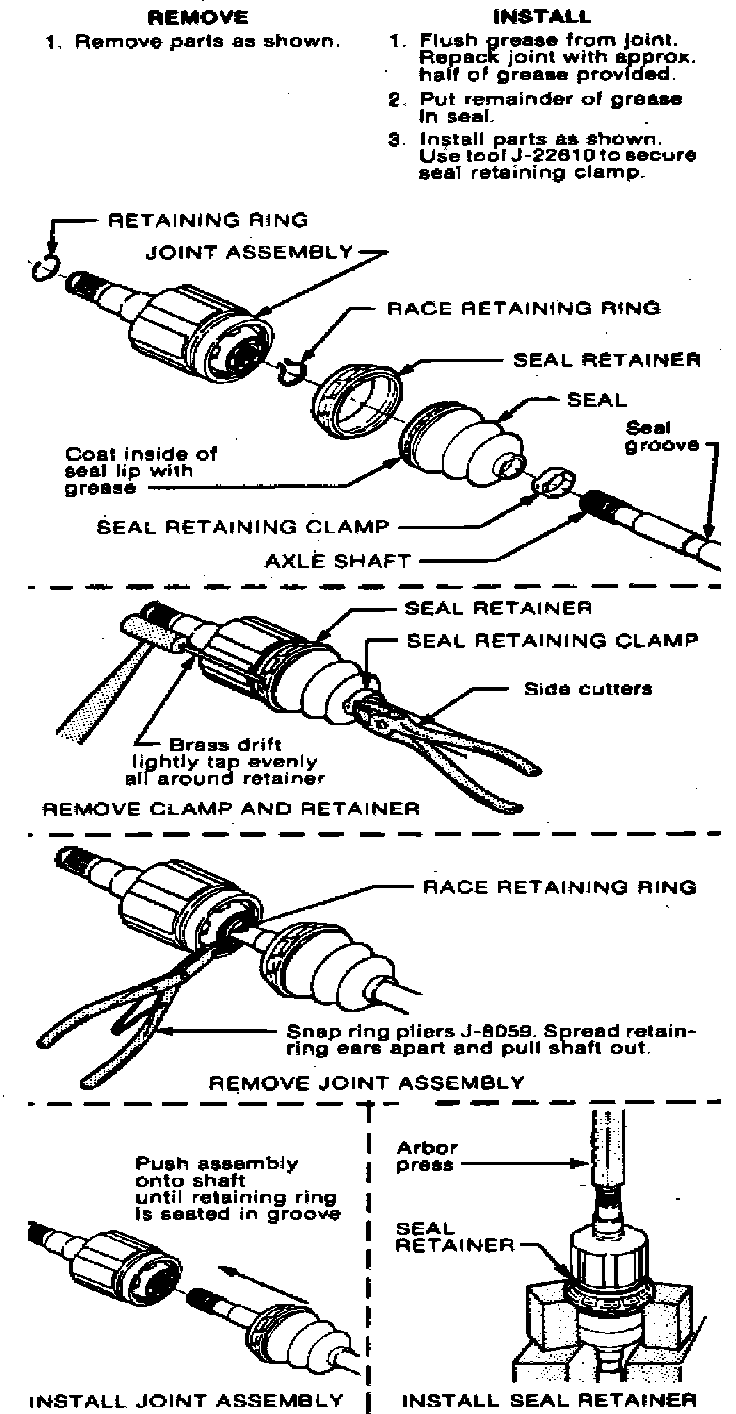

Fig. 15 Inner constant velocity joint seal removal & installation. 1982-84 Citation, Omega, Phoenix & Skylark; 1982-84 Cavalier, Celebrity, Century, Cimarron, Cutlass Ciera, Firenza, 2000, Skyhawk & 6000:

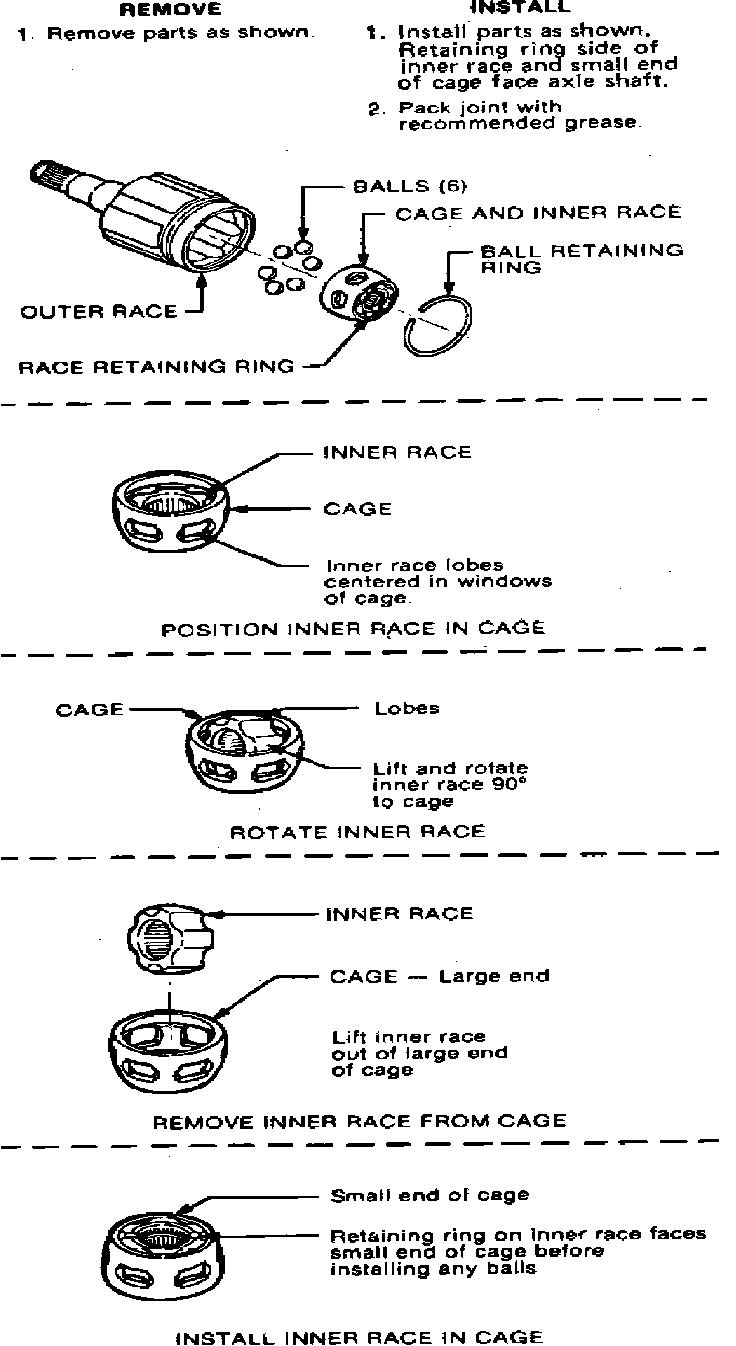

Fig. 16 Inner constant velocity joint removal & installation. 1982-84 Citation, Omega, Phoenix & Skylark; 1982-84 Cavalier, Celebrity, Century, Cimarron, Cutlass Ciera, Firenza, 2000, Skyhawk & 6000:





1982-84 CITATION, OMEGA, PHOENIX & SKYLARK; 1982-84 CAVALIER, CELEBRITY, CENTURY, CIMARRON, CUTLASS CIERA, FIRENZA, 2000, SKYHAWK & 6000
For removal and installation procedures, refer to Figs. 15 and 16.
