Engine Cooling Fan Relay - Inoperative
84olds1SUBJECT ENGINE COOLING FAN RELAY REPLACEMENT NUMBER: 83-C-8
DATE: June 8, 1984
MODELS/YEARS 1982-83 CUTLASS CIERA & OMEGA MODELS SECTION: 1B
W/2.5L ENGINES (LR8) & AIR CONDITIONING
CONDITION
Some late 1982 and all 1983 Cutlass Ciera and Omega models equipped with 2.5 liter engines and air conditioners were assembled with engine cooling fan relays which could cause the engine cooling fan and air conditioning system to be inoperative.
VEHICLES INVOLVED
All 1982 and 1983 Cutlass Ciera and Omega models equipped with 2.5 liter engines and air conditioners and built within the following VIN breakpoints:
Year Models Assembly Plant Beginning VIN Ending VIN
1982 Ciera Doraville CD355286 End of Production
1982 Omega Willow Run CW345236 End of Production
1983 Ciera Doraville DD300001 End of Production
1983 Ciera Framingham DG300001 End of Production
1983 Omega Willow Run DW300001 End of Production
DEALER ACTION
To prevent the possibility of this occurring, dealers are to replace the cooling fan relays on all involved vehicles.
Dealers are to service all vehicles subject to this campaign at no charge to owners, regardless of mileage, age of vehicle or ownership, from this time forward.
Whenever a vehicle subject to this campaign is taken into your new or used vehicle inventory, or it is in your dealership for service in the future you should take the steps necessary to be sure the campaign correction has been made before reselling or releasing the vehicle.
Owners of vehicles recently sold from your new vehicle inventory are to be contacted by the dealer, and arrangements made to make the required modification according to instructions contained in this bulletin.
SERVICE PROCEDURE
Part I - Replacement of Cooling Fan Relay
REMOVAL
1.. Disconnect negative battery cable.

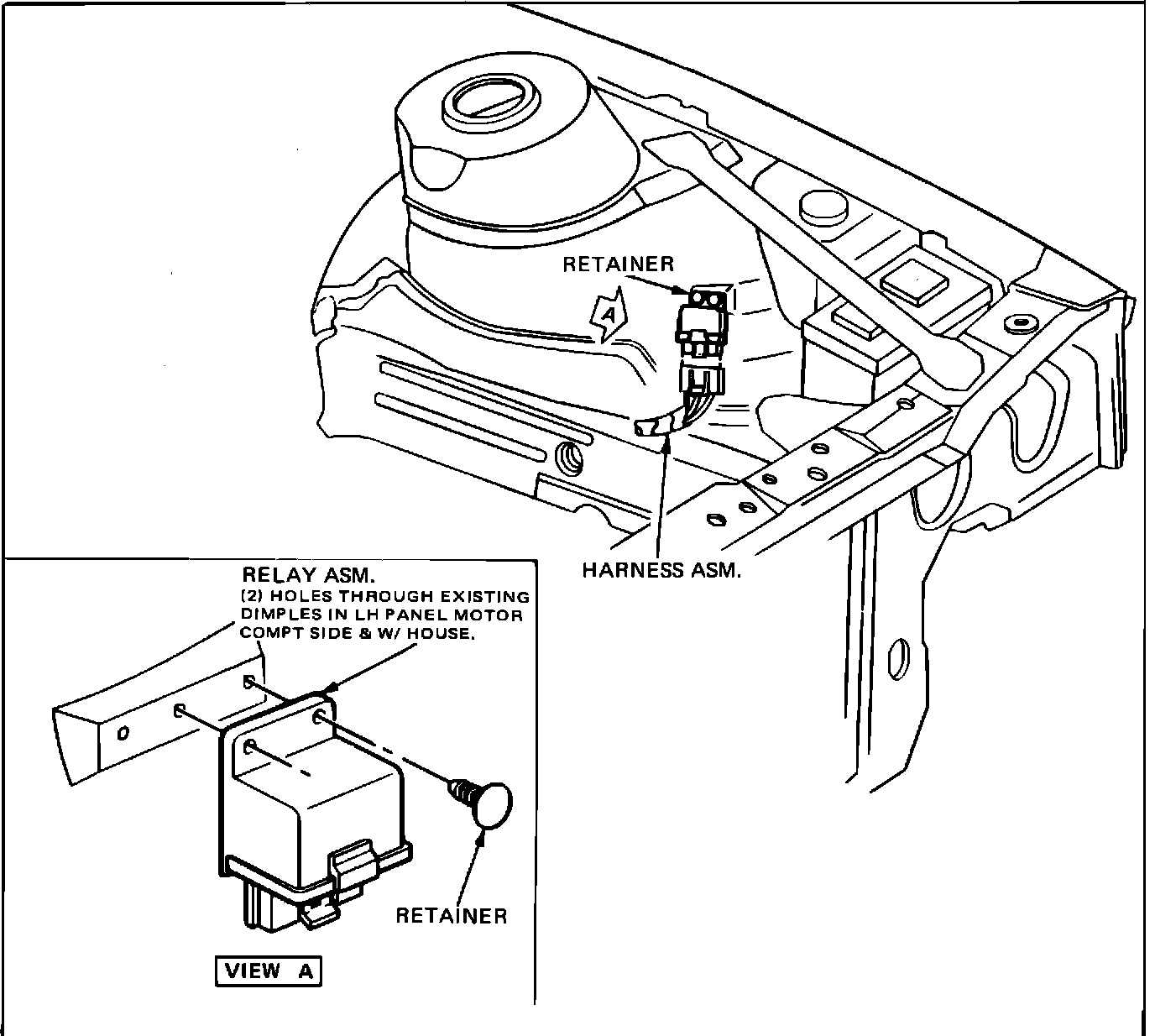

FIGURE 1:
2. Unplug connector from cooling fan relay (see Figure 1).
3. Remove two cooling fan relay retainers (save retainers) and remove relay.
INSTALLATION
Refer to Parts Information Section of this bulletin to obtain new relay, part number 10033118.

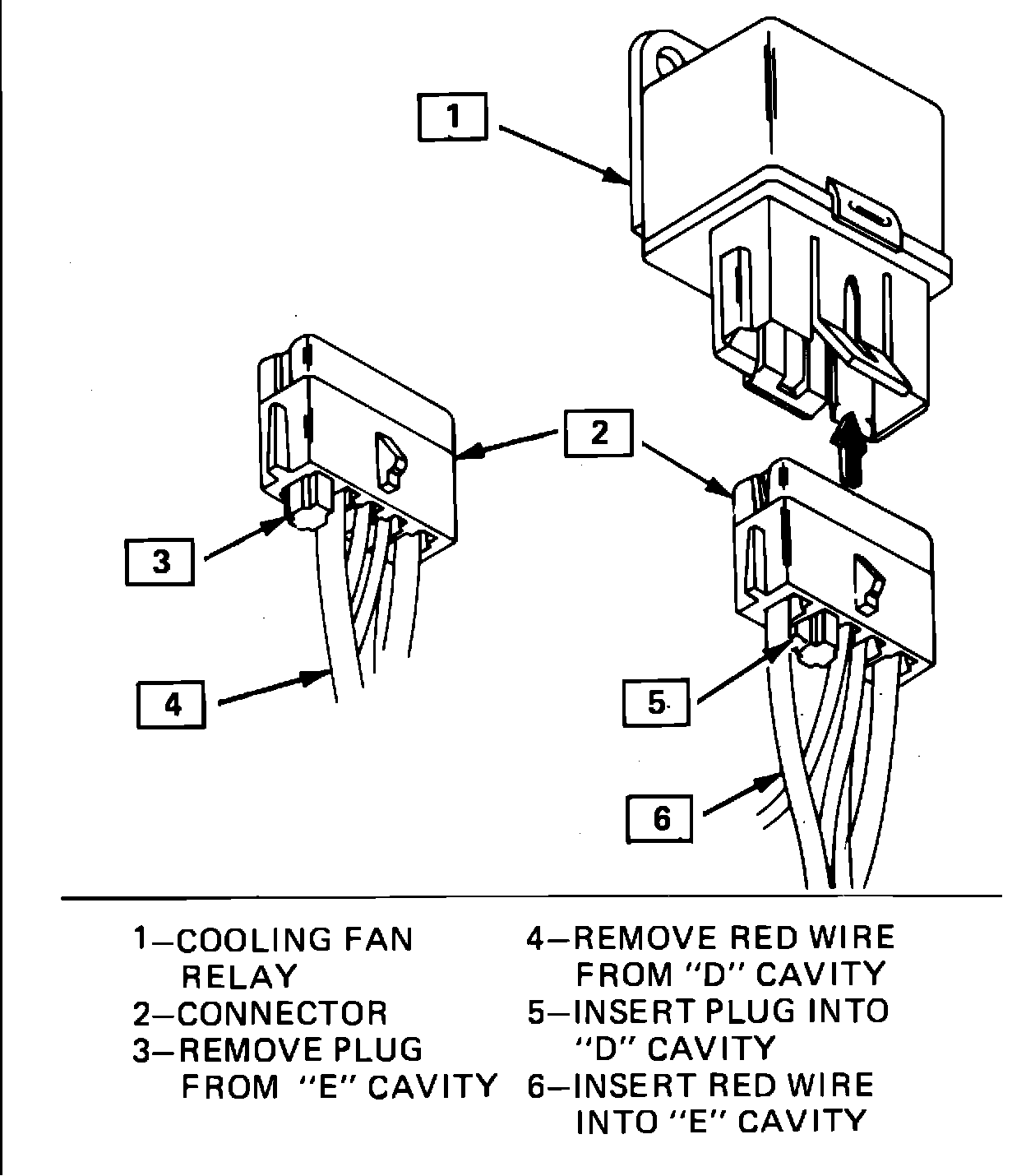

FIGURE 2:
1. Change wire location in connector as shown in Figure 2.
2. Besure to insert plastic plug into cavity "D" as shown in Figure 2. (A package of plastic plugs has been included with this bulletin in the event they are needed.)
3. Install new relay using the two retainers removed from the old relay.
4. Snap connector into relay. Be sure connector seats properly.
5. Reconnect negative battery cable.
Part II - Cooling Fan Operation Should be Checked After Installation of the New Relay Using the Following Procedure:
1. Engine should be cool enough that engine cooling fan is not running. (Engine cooling fan will operate if the engine temperature switch senses coolant at or above 110~ C. (230~ F.).
2. Ground under-dash diagnostic connector by jumping TEST terminal B to GROUND terminal A.
3. Turn ignition switch to "ON" position only. DO NOT START ENGINE.
4. Operate the air control (upper) lever of the A/C control. Engine cooling fan should be operating when lever is in the A/C positions of "MAX," "NORM," or "BI-LEVEL." (The engine cooling fan will also operate in the "DEFROST" position on 1982-83 Cutlass Ciera and Omega models that include relay part number 14047112, added for engine cooling fan operation in July 1983 Service Guild, page 77, and October 1983, page 6).
5. Remove ground specified in Step 2.
6. If engine cooling fan does not operate as outlined in Step 4 above, re-check for proper installation of cooling fan relay wiring outlined in Part I - Replacement of Cooling Fan Relay.
7. If relay wiring is correct and engine cooling fan still does not operate, review the normal diagnostic procedures for cooling fan operation in appropriate service manual.
Part III - Installation of Campaign Identification Label
Each vehicle modified in accordance with the instructions outlined in this service procedure will require a campaign identification label. Each label provides a space to include the campaign number, the five digit dealer code of the dealer performing the campaign service, and the date vehicle was, campaigned.This information may be inserted with a typewriter or ballpoint pen. Install the label on the radiator baffle where it is readily visible.
PARTS INFORMATION
The relay required to complete this campaign is to be ordered from WDDGM.
To ensure this part will be obtained as soon as possible, it should be ordered from WDDGM ON A C.I.O. ORDER WITH NO special instruction code, but order on all advise code (2).
Description Model Year Part Number
Relay Asm. Package 1982 and 1983 10033118
WARRANTY CLAIM INFORMATION
Failure Labor Labor
Description Code Operation Hours
Replace Relay and 96 V2030 .3
Wire Relocation
Parts will be credited at dealer cost plus 30%.
.1 hour for clerical administration may be added to the above operation numbers.
To All Oldsmobile Dealers:
Oldsmobile Division is releasing Campaign 83-C-8 involving 1982 and 1983 Cutlass Ciera and Omega models equipped with 2.5L engines (LR8) and air conditioning. These vehicles were assembled with engine cooling fan relays which could cause the engine cooling fan and air conditioning system to be inoperative.
To reduce the possibility of this occurring dealers are to replace the cooling fan relays on all involved vehicles.
Dealers are to order parts from WDDGM for each vehicle requiring a relay.
Enclosed with the campaign material going to each dealer is a package of plastic terminal connector plugs to be used, if needed, as directed in Part I Step 2 of the Installation Procedure of the bulletin.
Enclosed with this letter are:
Two Product Campaign Bulletins 83-C-8 Copy of Owner Letter
Dealers with cars to correct will also receive:
One printout of vehicles in VIN sequence One printout of vehicles in owner alphabetical sequence
Your cooperation in completing this campaign as soon as possible will be greatly appreciated.
