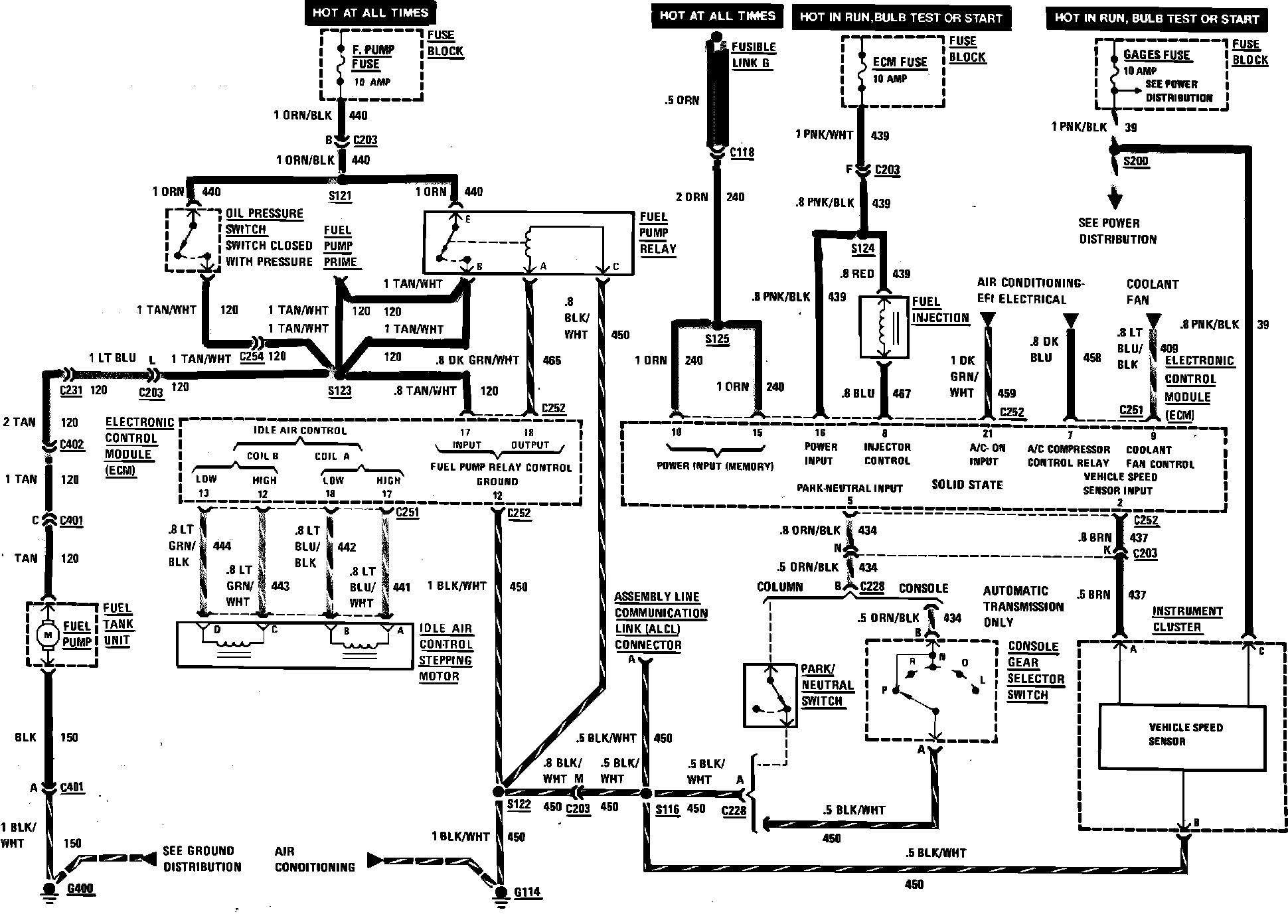

Fuel Control, Idle Air Control (IAC) & Vehicle Speed Sensors
Fuel Control, Idle Air Control (IAC) & Vehicle Speed Sensors
Electronic Fuel Injection (Fuel Control, Idle Air Control & Vehicle Data Sensors):
