Choke Heater
>>
With Gauges
With Gauges

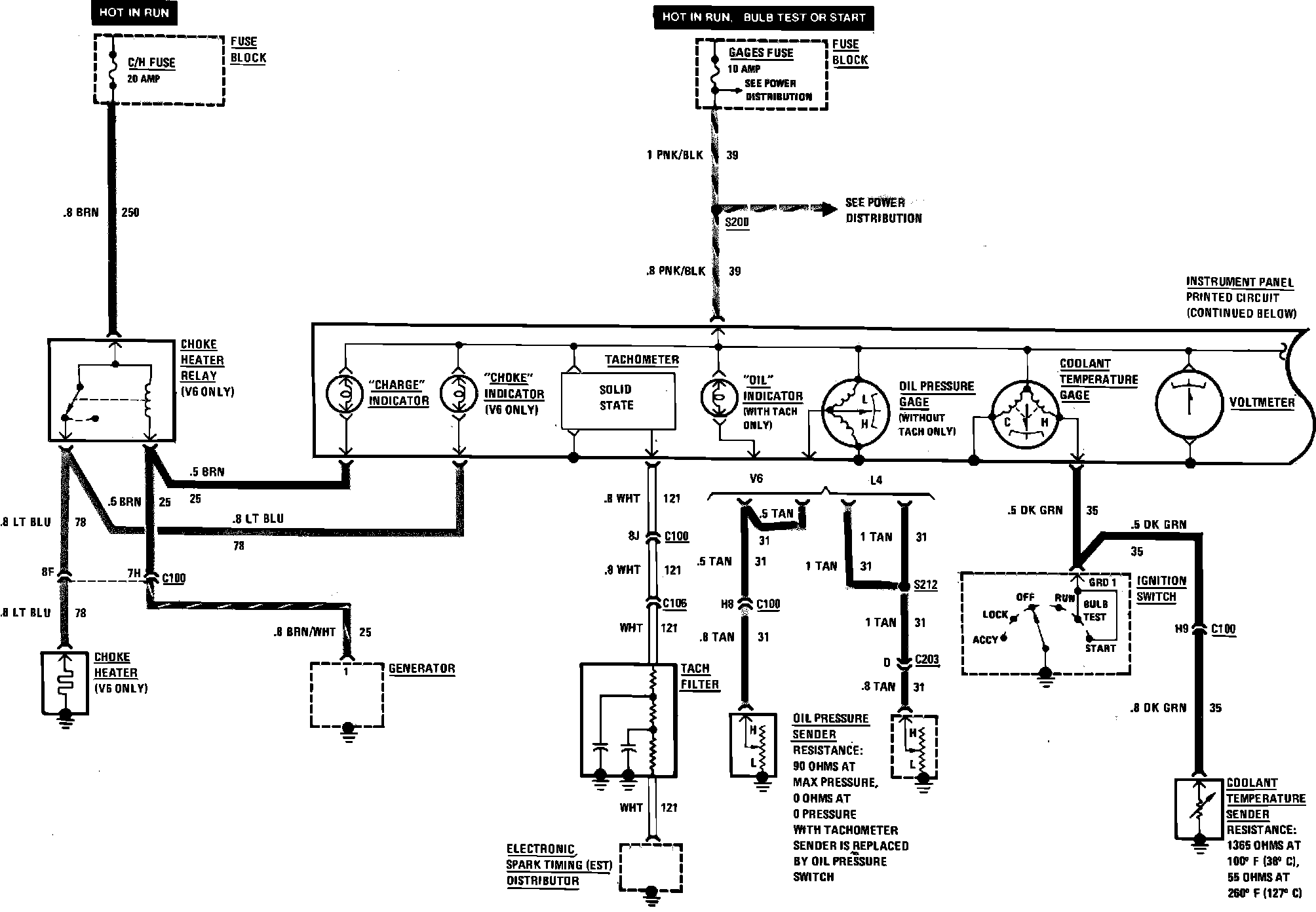

Choke Heater & Instrument Panel Indicators Wiring Circuit (W/Gauges):
