Oldsmobile
>>
1983
>>
Omega L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Four Door
Four Door

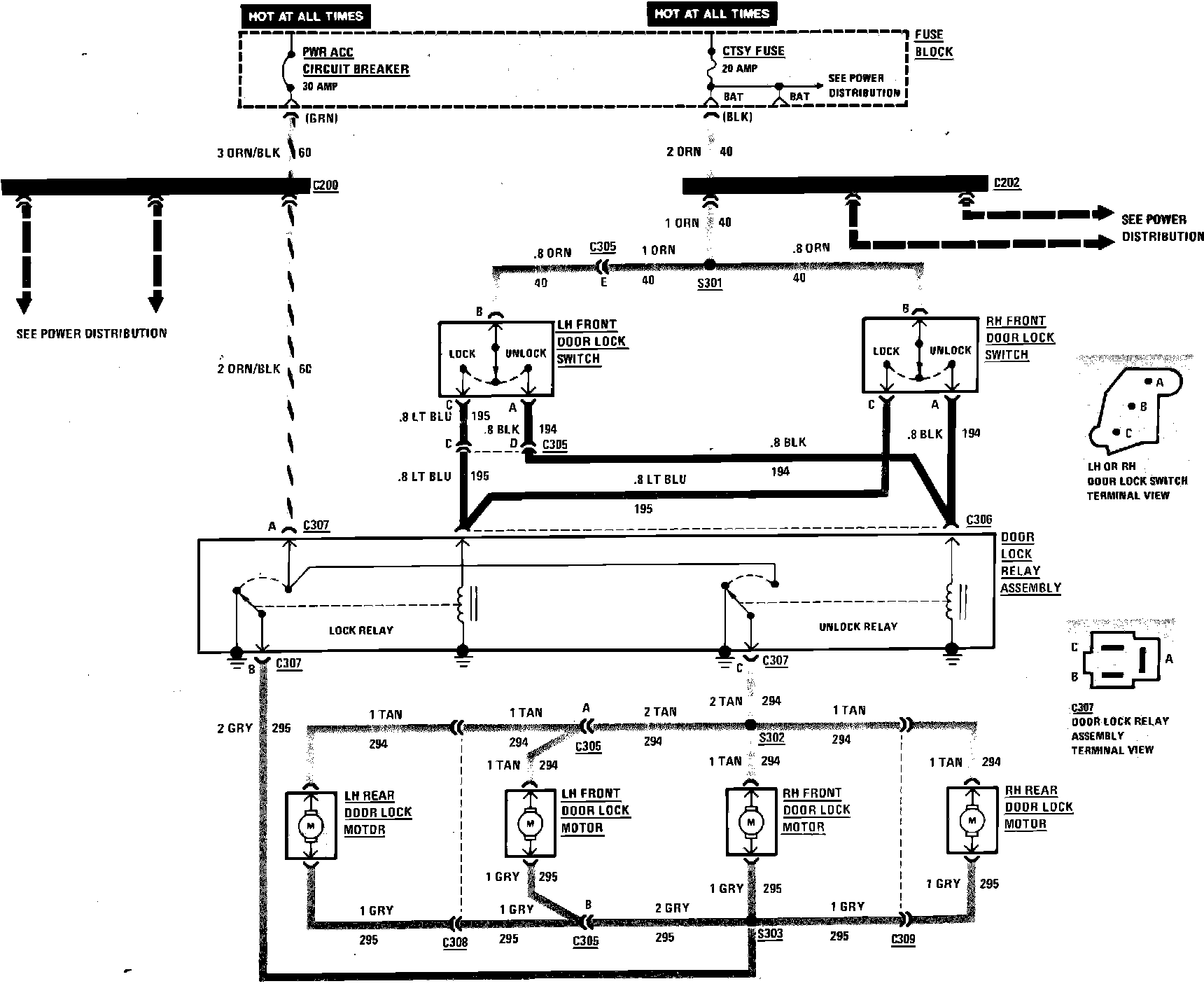

Power Door Locks Wiring Circuit (4 Door):
