Brake Warning Indicator
>>
Less Vacuum Pump
Less Vacuum Pump

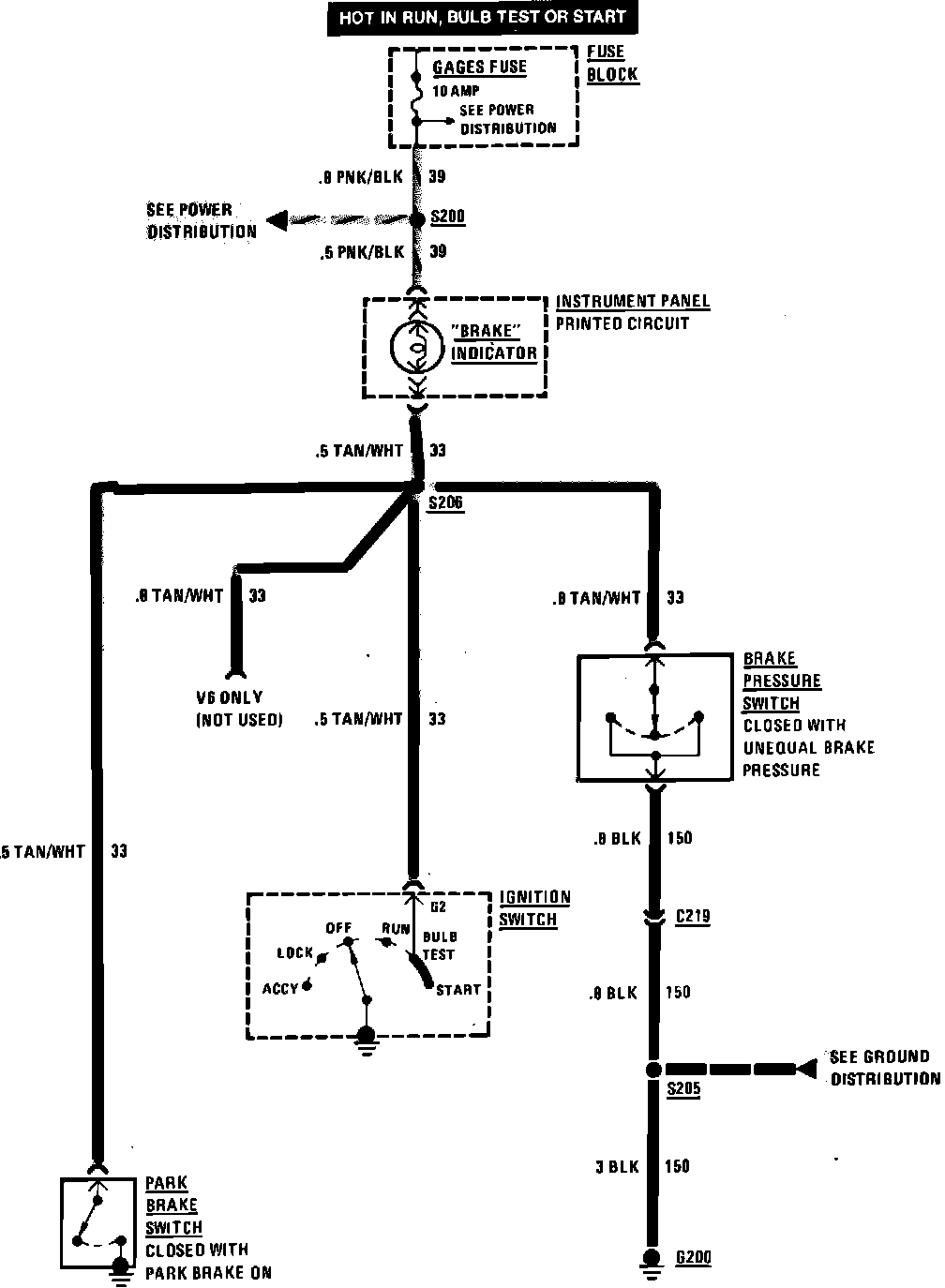

Brake Warning System Wiring Circuit (Less Vacuum Pump):
