Home
>>
Oldsmobile
>>
1983
>>
Omega L4-151 2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
A Charts
>>
Chart A-3 Will Not Flash Code 12
Chart A-3 Will Not Flash Code 12

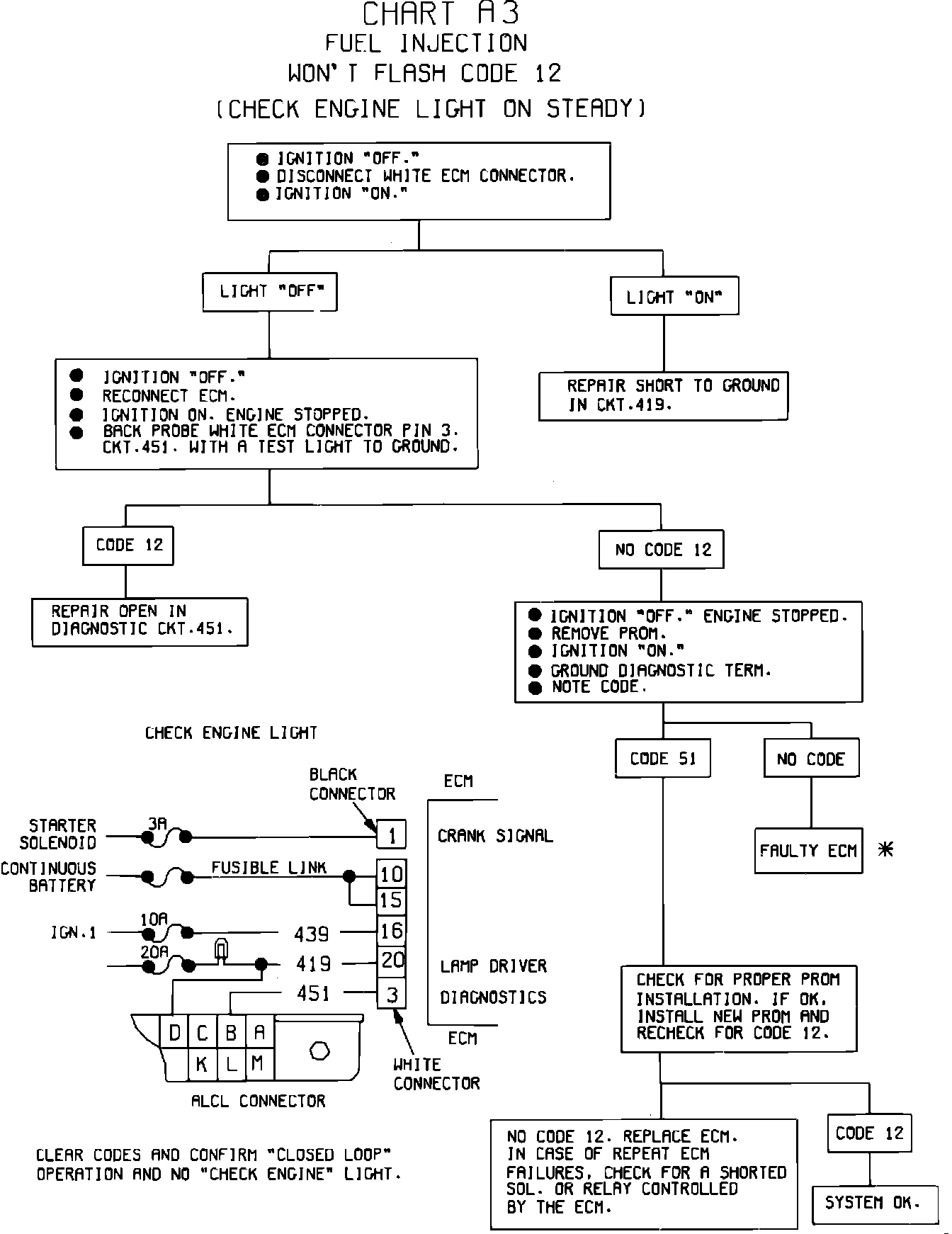

Fig. 6 Chart A-3 Will Not Flash Code 12:
