Oldsmobile
>>
1983
>>
Firenza L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

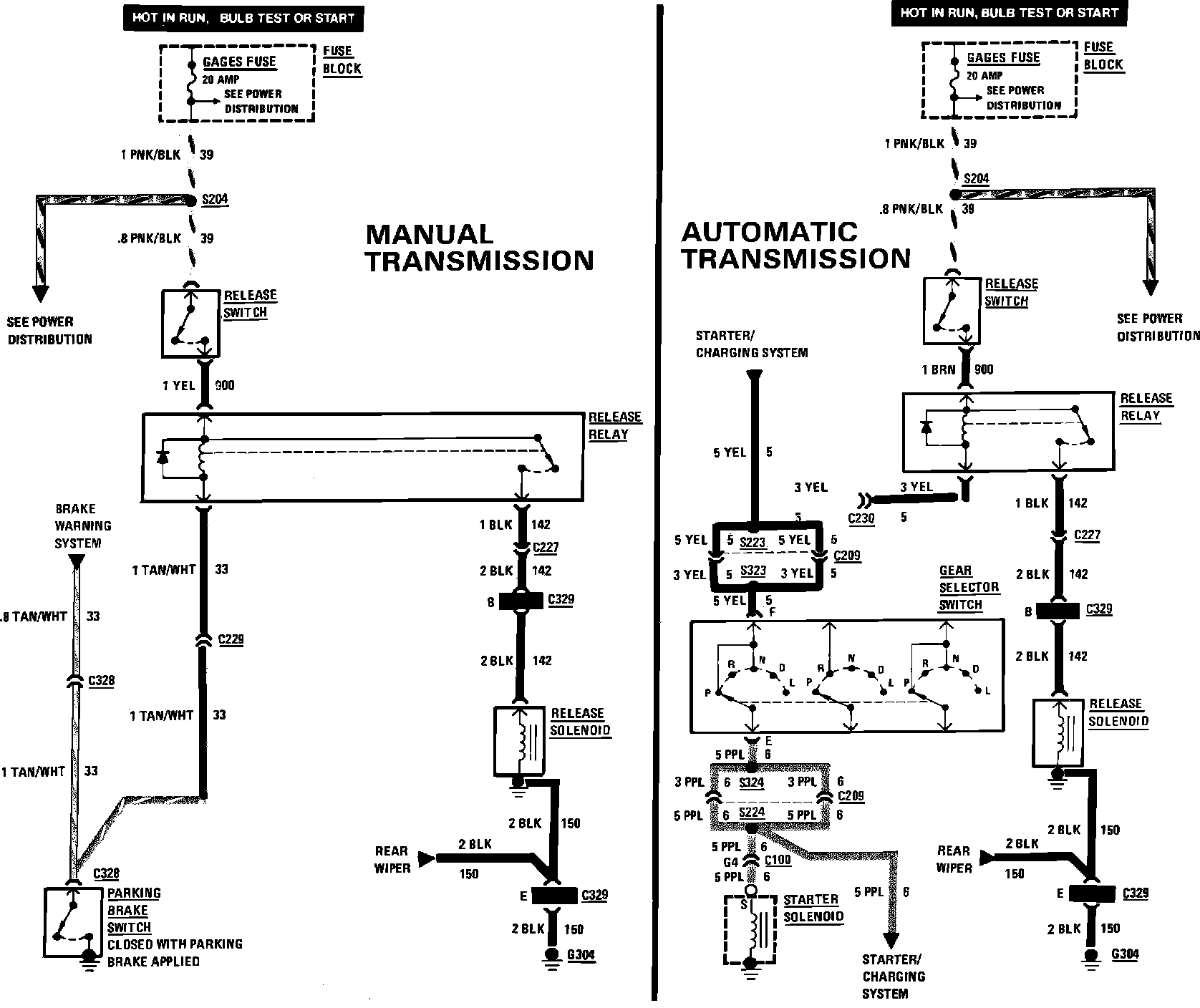

Hatch Release Wiring Circuit:
