Rear Lighting Circuit Station Wagon
Rear Lighting Circuit Station Wagon

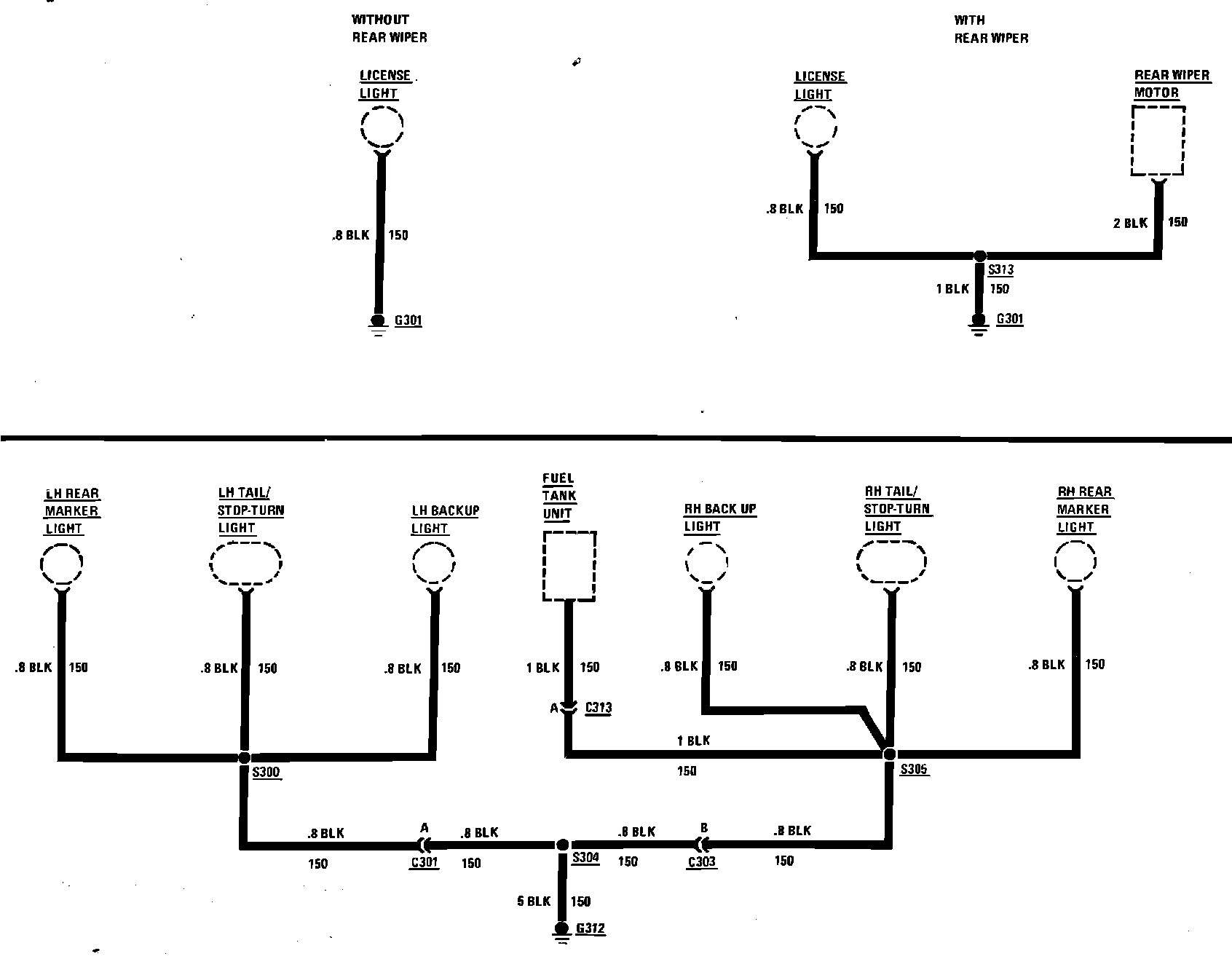

Ground Distribution (Rear Lighting Circuit):
