Engine Circuits G100 & G101 (VIN O) Non Turbo
Engine Circuits G100 & G101 (VIN O) Non Turbo

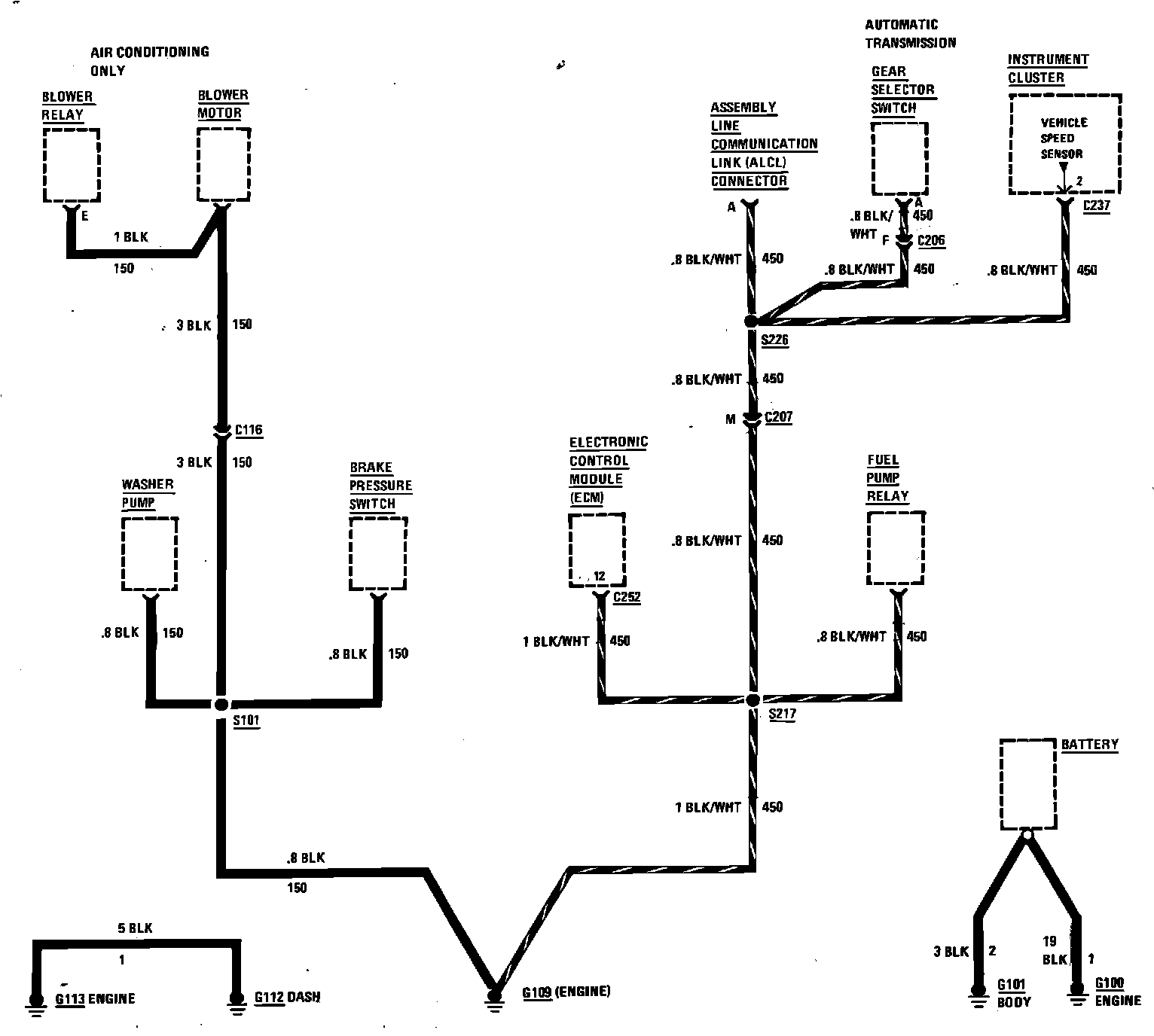

Ground Distribution (Engine Circuits G100, G101, G109, G112 & G113) (VIN O) Non-Turbo:
