Cutlass Cruiser V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems

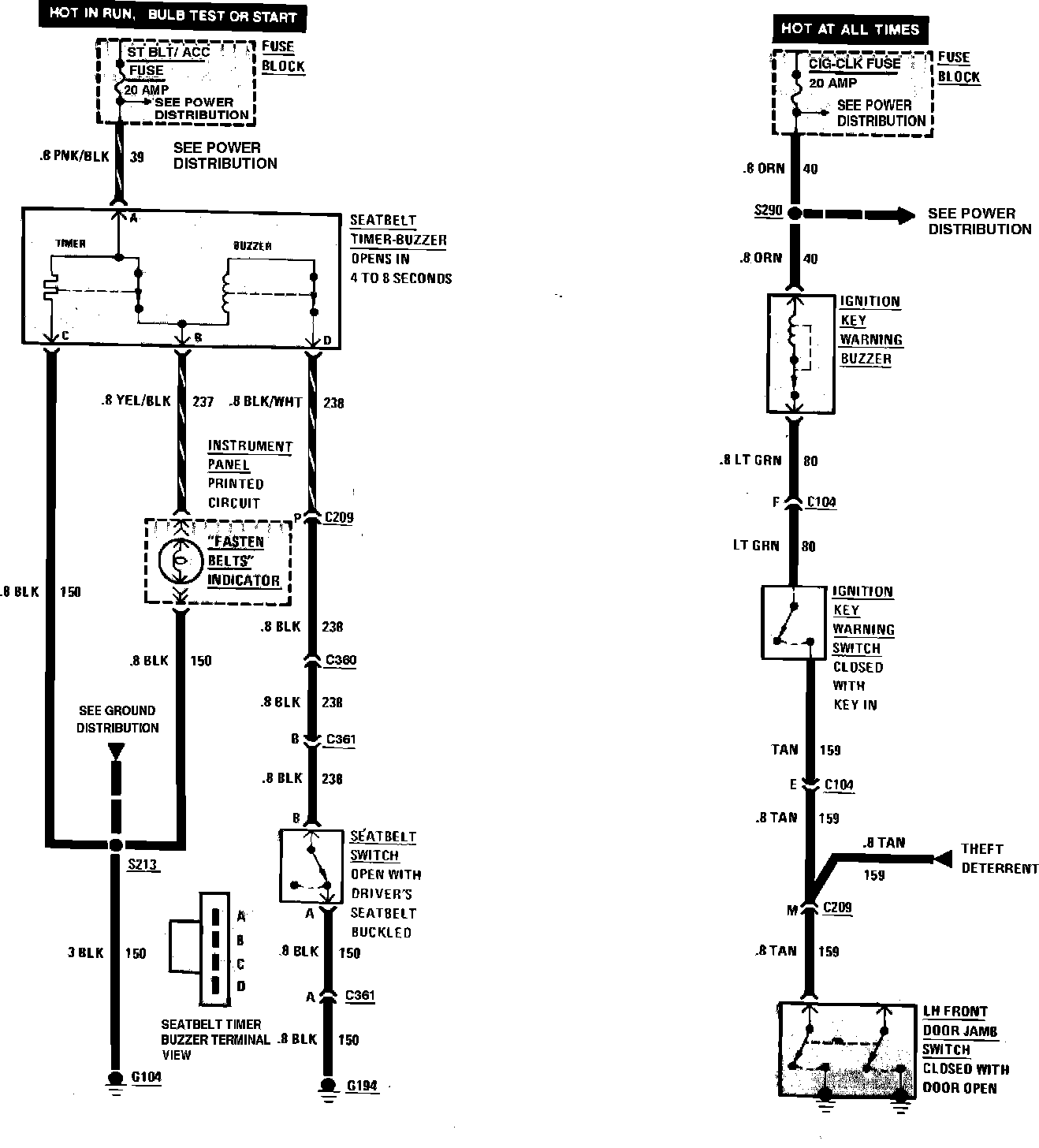

Ignition Key & Seatbelt Warning Wiring Circuit (With Buzzer):
