Home >> Oldsmobile >> 1983 >> Cutlass Cruiser V6-231 3.8L VIN A 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Emission Controls & Engine Data Sensors >> Calif.

Calif.

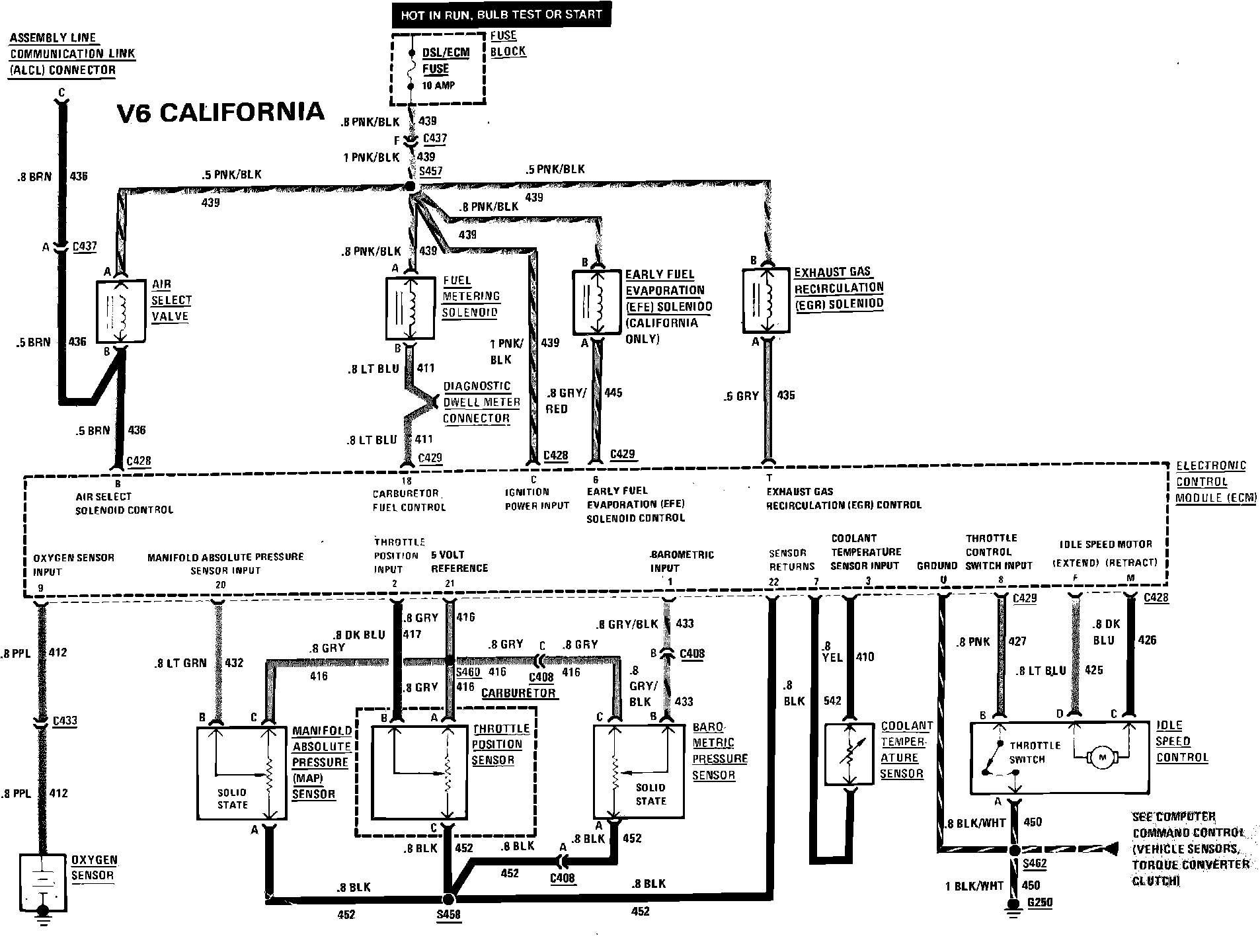

Computer Command Control (Emission Controls & Engine Data Sensors) Wiring Circuit:
