Oldsmobile
>>
1983
>>
Cutlass Cruiser V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antenna
Antenna

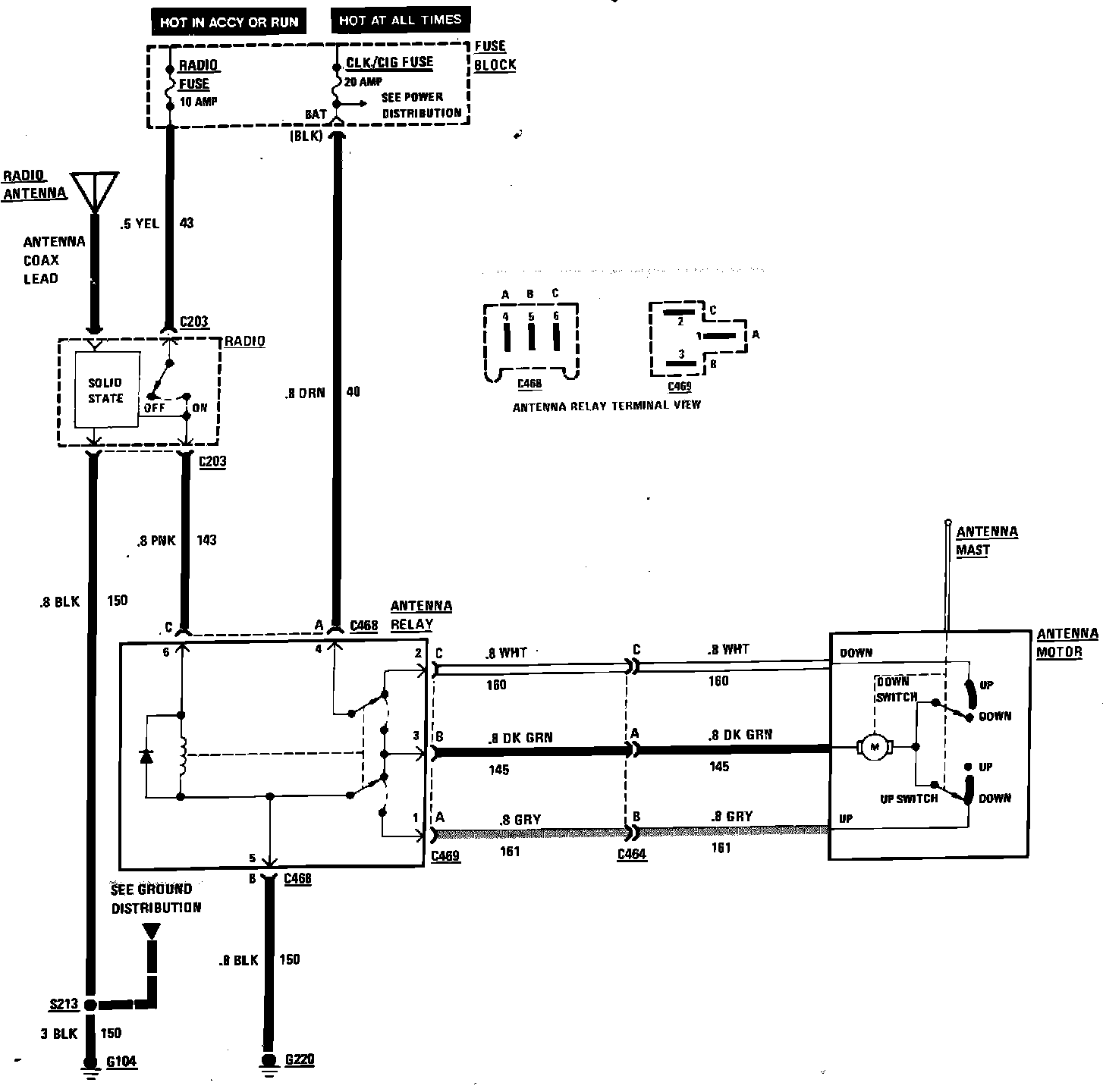

Fig. 378 Power Antenna Wiring Circuit. 1983 Cutlass:
