Engine Mount: Service and Repair

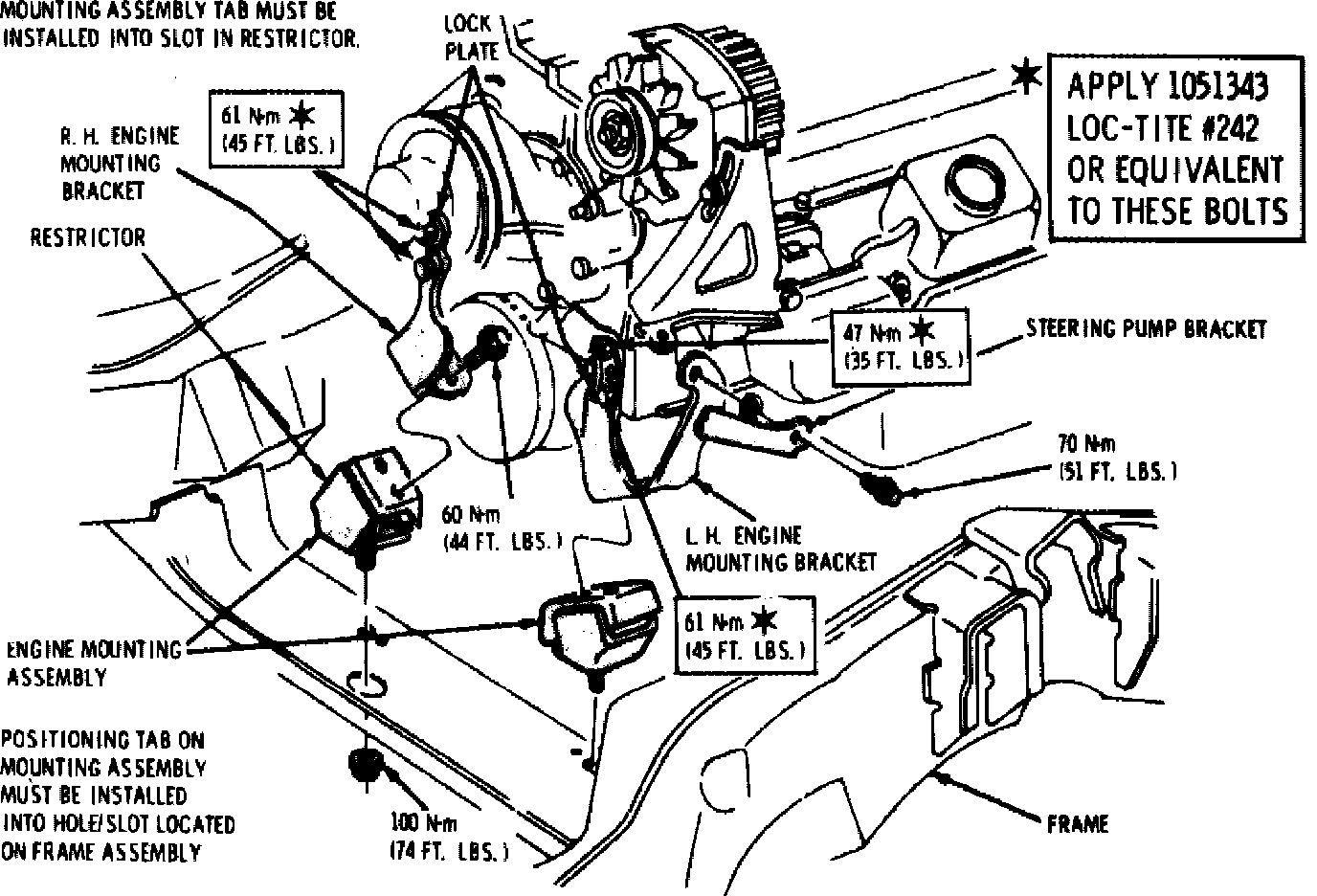

Fig. 1 Front engine mounts. Toronado:

TORONADO
1. Raise and support vehicle.
2. Remove front splash shield.
3. Remove two screws from engine mount bracket to engine mount on each side, Fig. 1.
4. Place a suitable lifting device under the harmonic balancer and raise engine only enough to remove each mount.
5. Reverse procedure to install.
