Inner Constant Velocity Joint & Seal

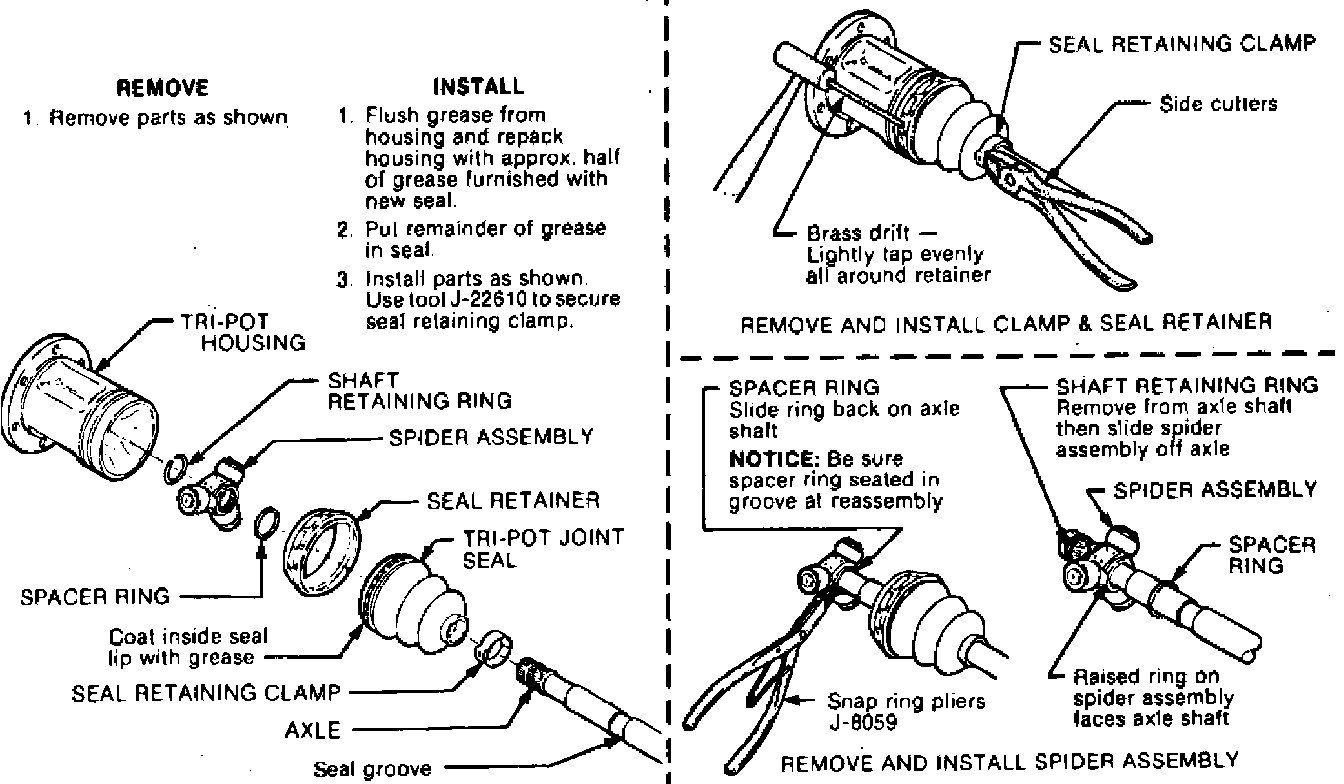

Fig. 11 Inner tri-pot seal removal & installation. 1982-85 Eldorado, Riviera, Seville & Toronado:





1982-85 ELDORADO, RIVIERA, SEVILLE & TORONADO
For removal and installation procedures refer to Fig. 11.
