A/T - Oil Pump Rotor and Slide Service
84olds3
SUBJECT SERVICE PROCEDURE FOR THE OIL PUMP
ROTOR AND SLIDE ON A 200-4R TRANSMISSION NUMBER: 84-T-12
DATE: July 11, 1984
MODELS/YEARS
1981-84 CUTLASS SUPREME, 88 & 98
SECTION: 7A
Beginning mid-November 1983, service parts became available to service the oil pump rotor and slide of the pump body assembly on all THM 200-4R transmissions. This service procedure on all THM 200-4R transmissions must be followed to assure proper end clearance on the oil pump rotor and slide.
SERVICE PROCEDURE
NOTICE: DO NOT attempt to service the oil pump rotor if either the pump body pocket or pump body cover surfaces are scored. Servicing of the oil pump rotor and slide should be performed ONLY if the selective pump rotor or slide show wear.

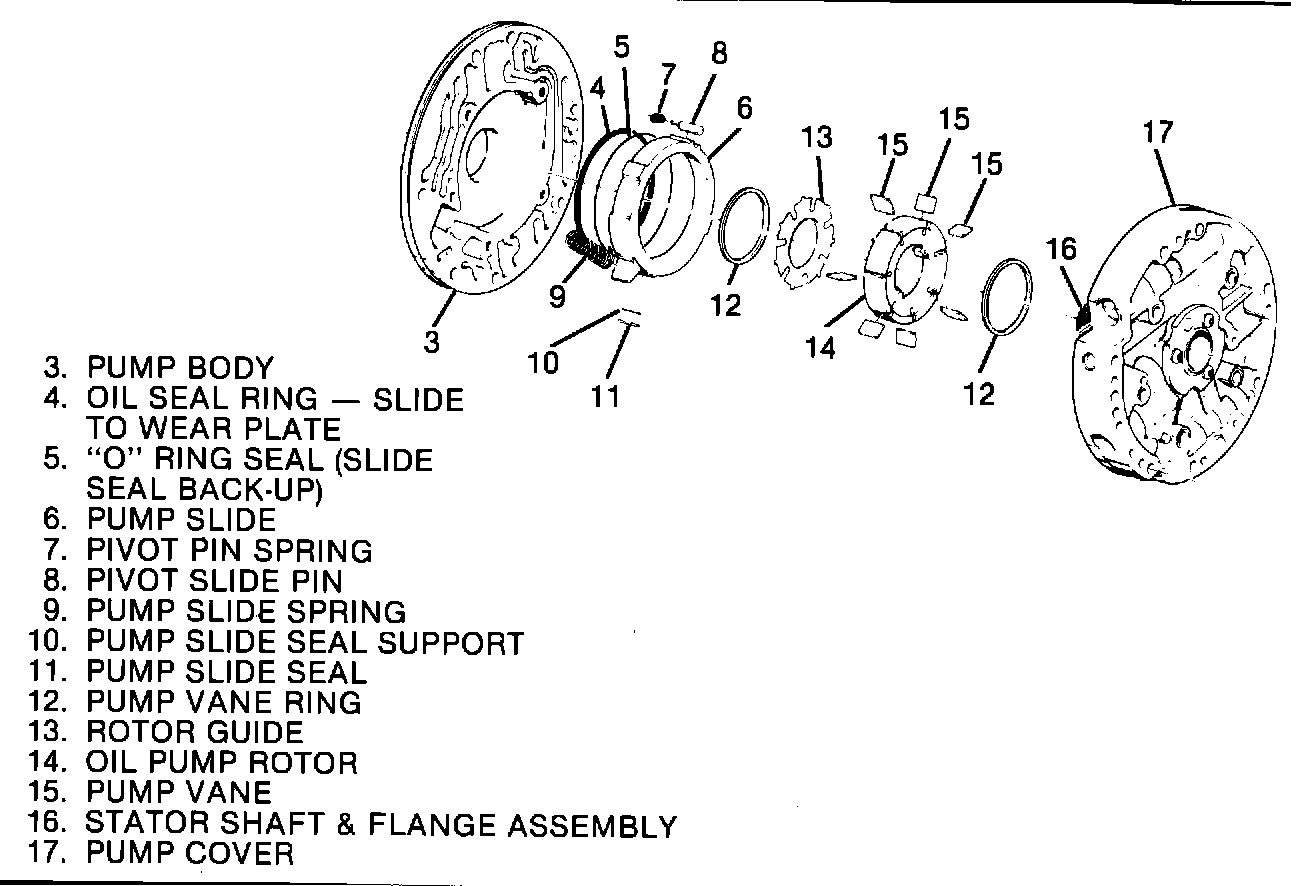

FIGURE 1:
1.. Disassembly of the Oil Pump
Disassemble the oil pump body assembly following procedures outlined in the service manual. Refer to Figure 1.

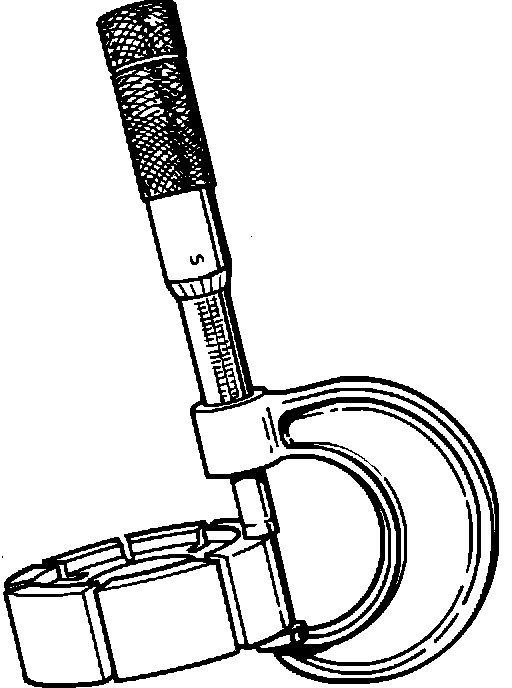

FIGURE 2:
2. Selecting the Pump Rotor and Slide
A. Use a micrometer to measure the original pump rotor and slide thickness accurately (Figure 2). To obtain the most accurate reading, measure on flat undamaged surfaces.
B. Using the original part measurement, order replacement parts according to the following selective charts:
THM 200-4R SELECTIVE PUMP ROTOR
Part No. Thickness In mm Thickness In Inches
8634091 17.948 - 17.961 0.7066 - 0.7071
8634092 17.961 - 17.974 0.7071 - 0.7076
8634093 17.974 - 17.987 0.7076 - 0.7081
8634094 17.987 - 18.000 0.7081 - 0.7086
8634095 18.000 - 18.013 0.7086 - 0.7091
THM 200-4R SELECTIVE PUMP SLIDE
Part No. Thickness In mm Thickness In Inches
8634081 17.948 - 17.961 0.7066 - 0.7071
8634082 17.961 - 17.974 0.7071 - 0.7076
8634083 17.974 - 17.987 0.7076 - 0.7081
8634084 17.987 - 18.000 0.7081 - 0.7086
8634085 18.000 - 18.013 0.7086 - 0.7091
NOTE: The replacement part will provide the same clearance that the oil pump assembly was originally built with. The proper end clearance specification is 0.020 mm to 0.050 mm (.0008" to .002").
C. Hone both sides of the replacement rotor and slide to remove any burrs, and measure the replacement parts with a micrometer to assure proper selection.
NOTE: Incorrect rotor selection could result in a damaged oil pump assembly and/or low oil pressure. Incorrect slide selection could result in incorrect line pressure.
3. Assembly
A. Reassemble the oil pump assembly following procedures outlined in the service manual.
B. After assembling the oil pump onto the transmission, install the converter and check for proper rotor and slide clearance by turning the converter. The converter should turn freely. If the converter does not turn freely, recheck the pump rotor and slide selection.
C. Install the transmission into the vehicle.
D. Before road testing the vehicle, install an oil pressure gauge into the transmission and check oil pressure. Refer to the service manual for oil pressure specifications.
