Component Diagnostic Charts - Throttle Body Fuel Injection
Component Diagnostic Charts - Throttle Body Fuel Injection

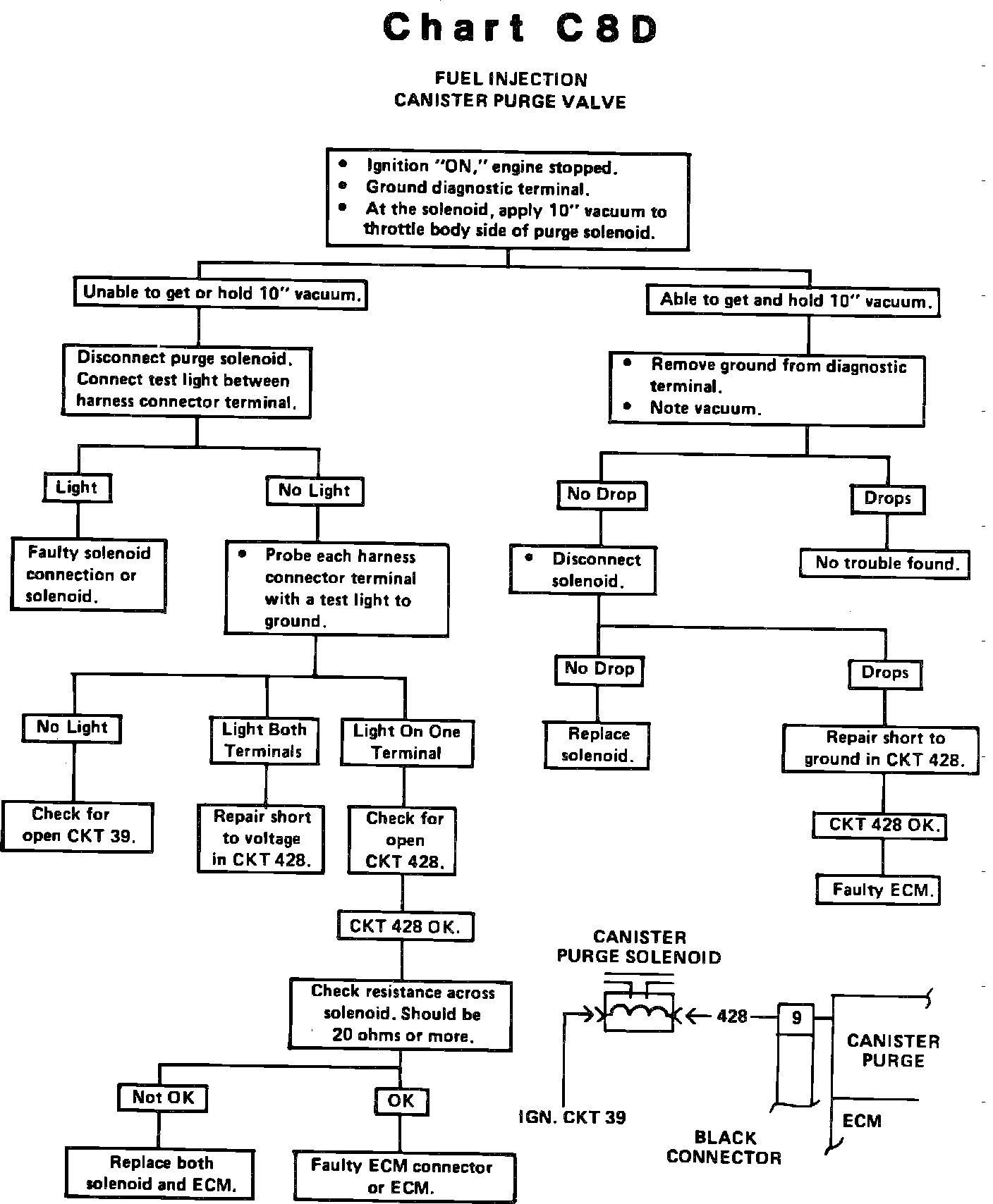

Fig. 30 Chart C-8D Canister Purge Valve Check 1982:
