Headlamp Switch: Service and Repair

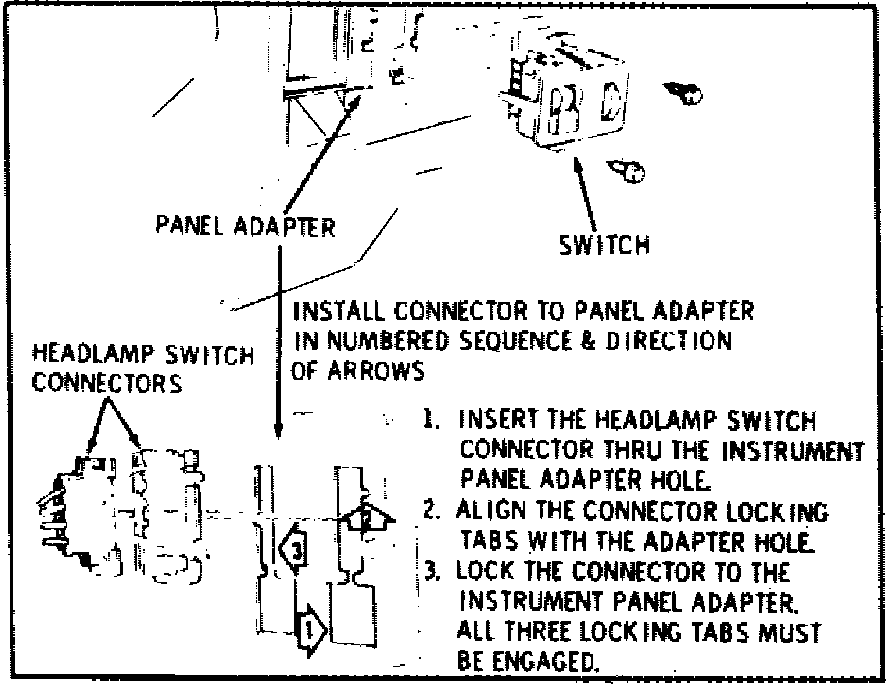

Fig. 3 Headlight switch. Cutlass:

CUTLASS
1. Disconnect battery ground cable.
2. Remove cluster pad assembly.
3. Remove two headlight switch mounting screws, then pull switch away from panel adapter.
4. To disconnect wire connector, pry connector at locations indicated by arrows as shown in Fig. 3. Pull connector out, then slide to left and push forward to remove.
5. Reverse procedure to install. Refer to Fig. 3, to install wire connector.
