Powertrain Management: Diagrams
TROUBLE DIAGNOSIS

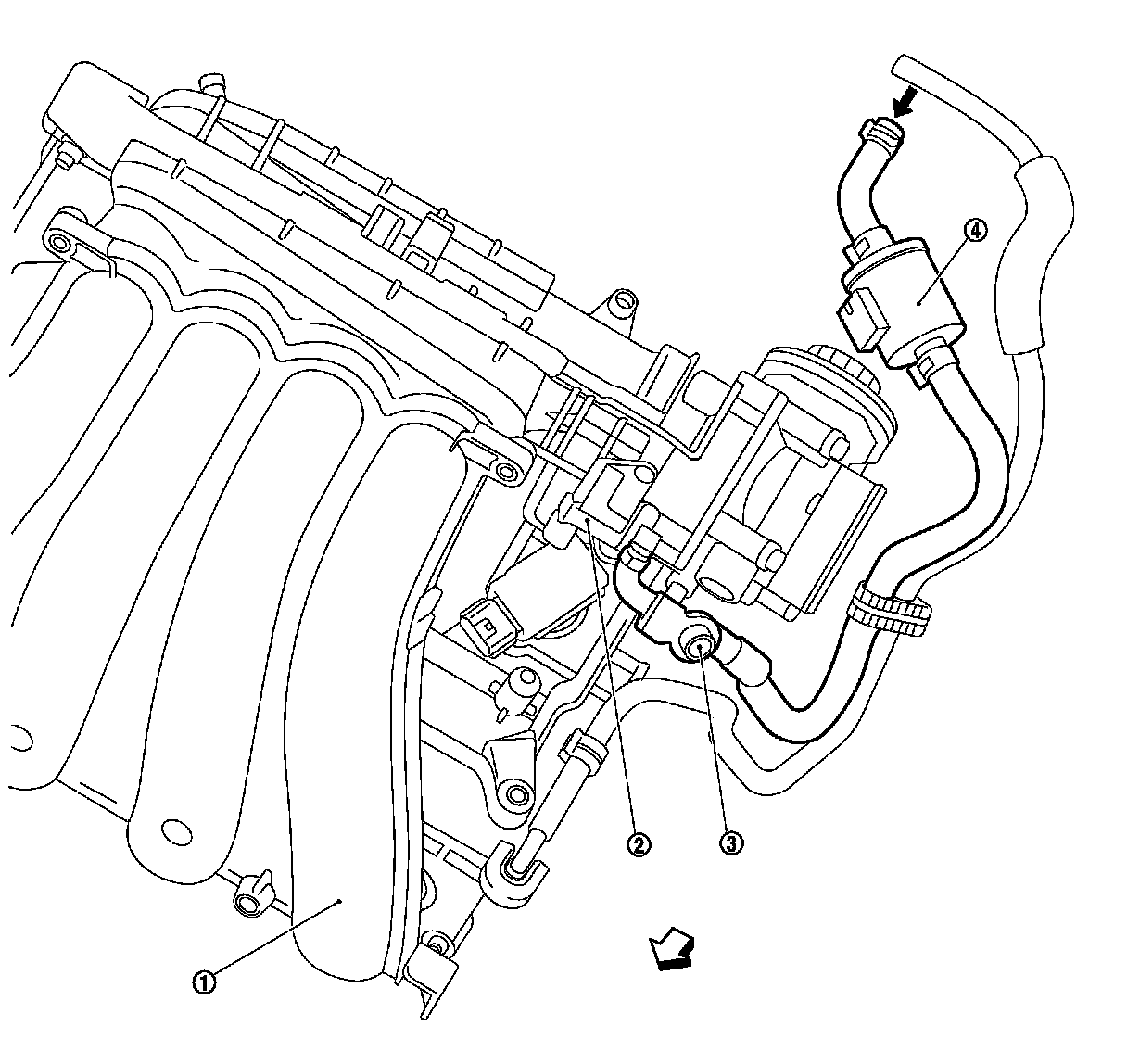

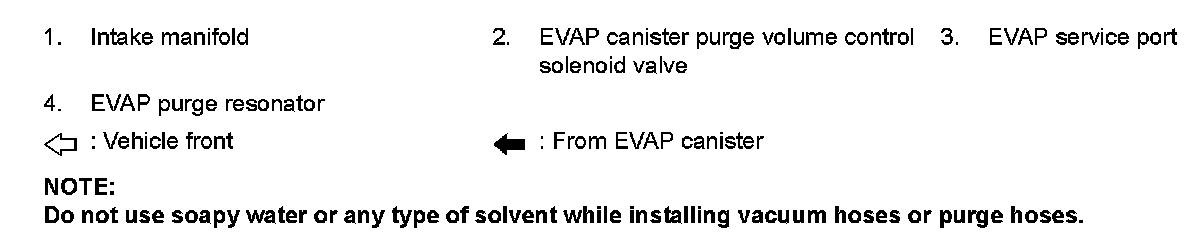

Vacuum Hose Drawing
Schematic
for Vacuum Control System.
