Home
>>
Nissan-Datsun
>>
2012
>>
Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Description and Operation
>>
Schematic
Schematic

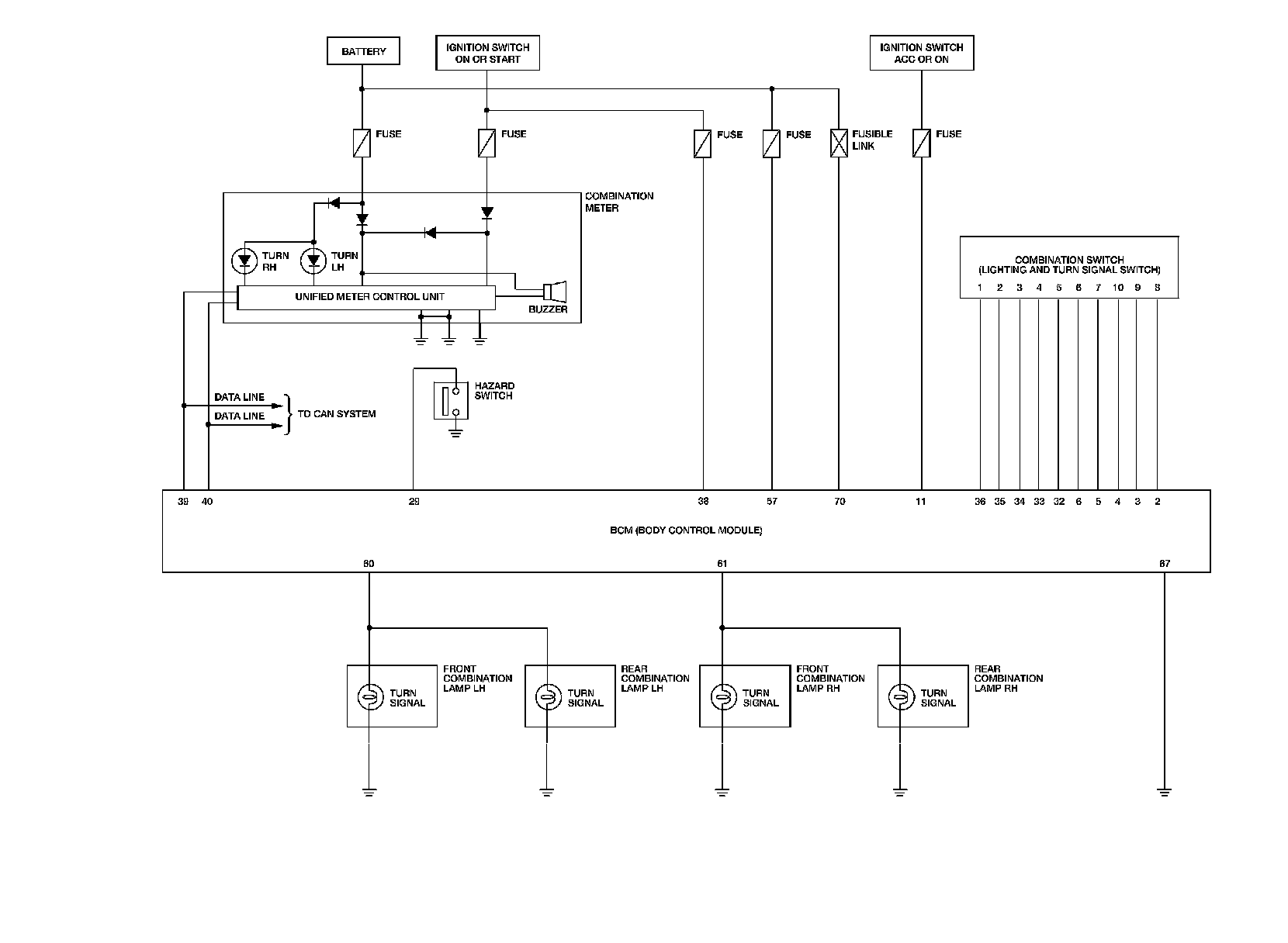

TURN SIGNAL AND
HAZARD WARNING LAMPS
Schematic
