Home
>>
Nissan-Datsun
>>
2012
>>
Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tire Monitoring System
Tire Monitoring System
TROUBLE DIAGNOSES

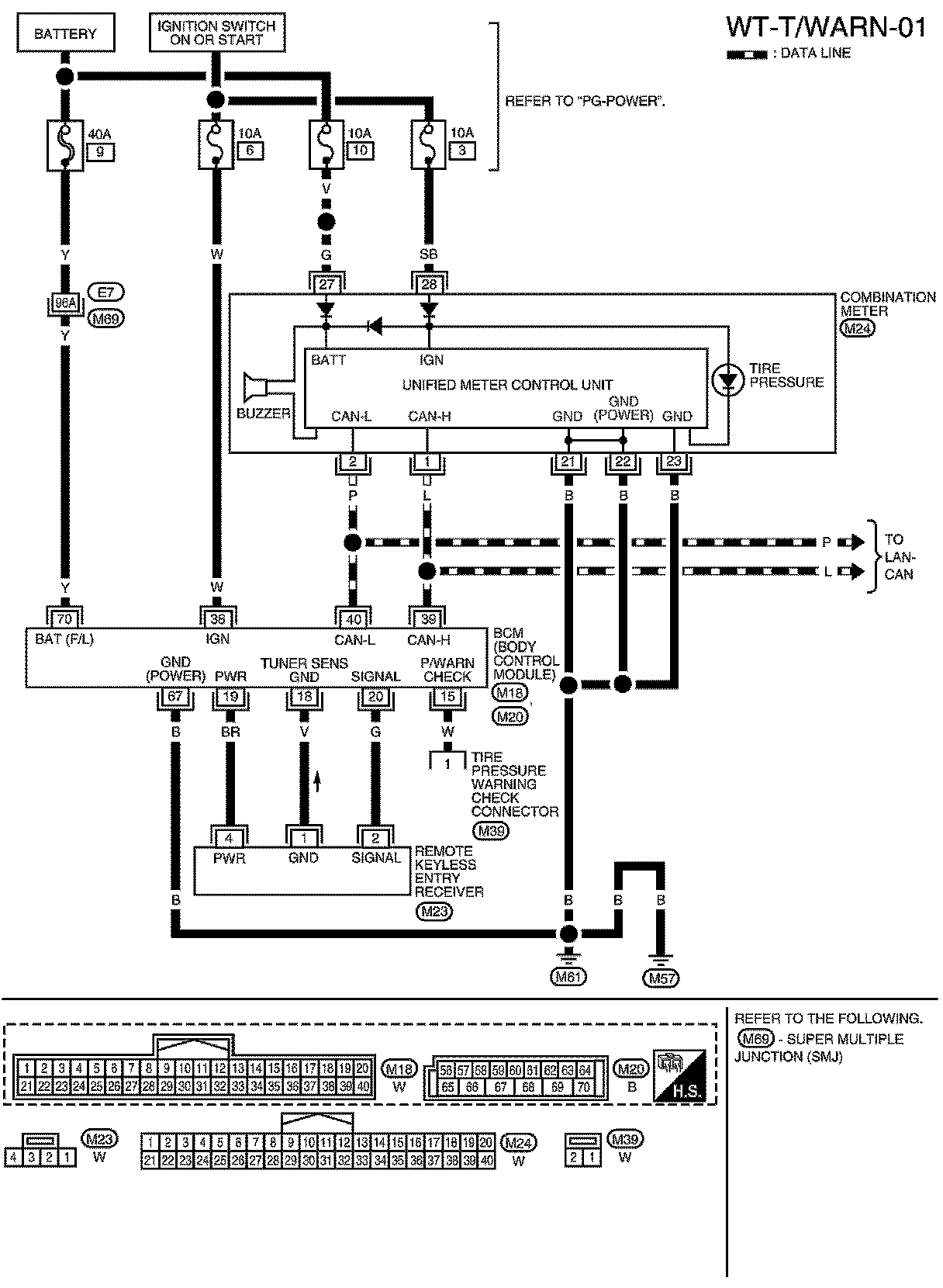

Wiring Diagram- T/WARN
