Home
>>
Nissan-Datsun
>>
2012
>>
Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cellular Phone
>>
With Navigation
With Navigation
TELEPHONE

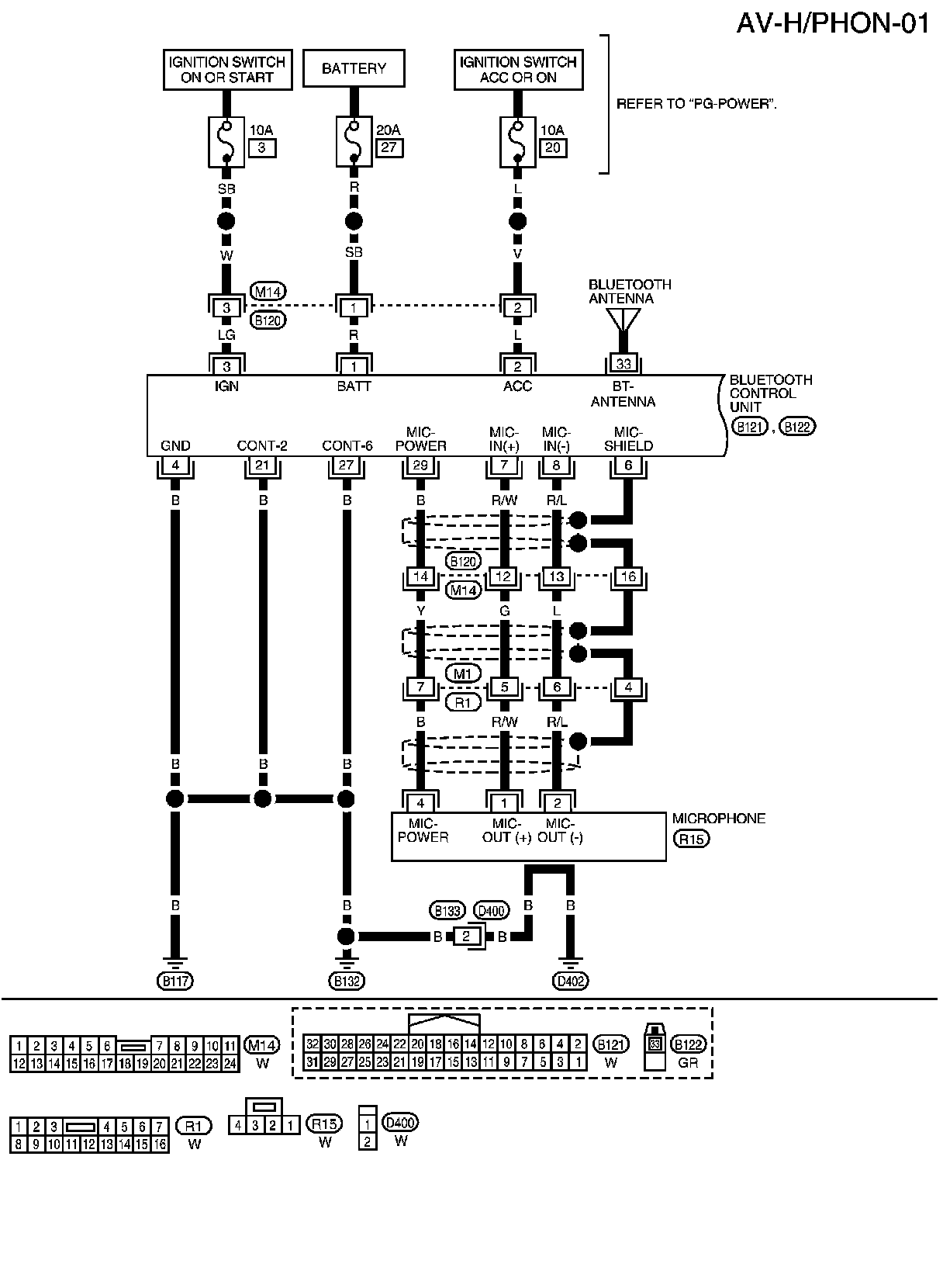

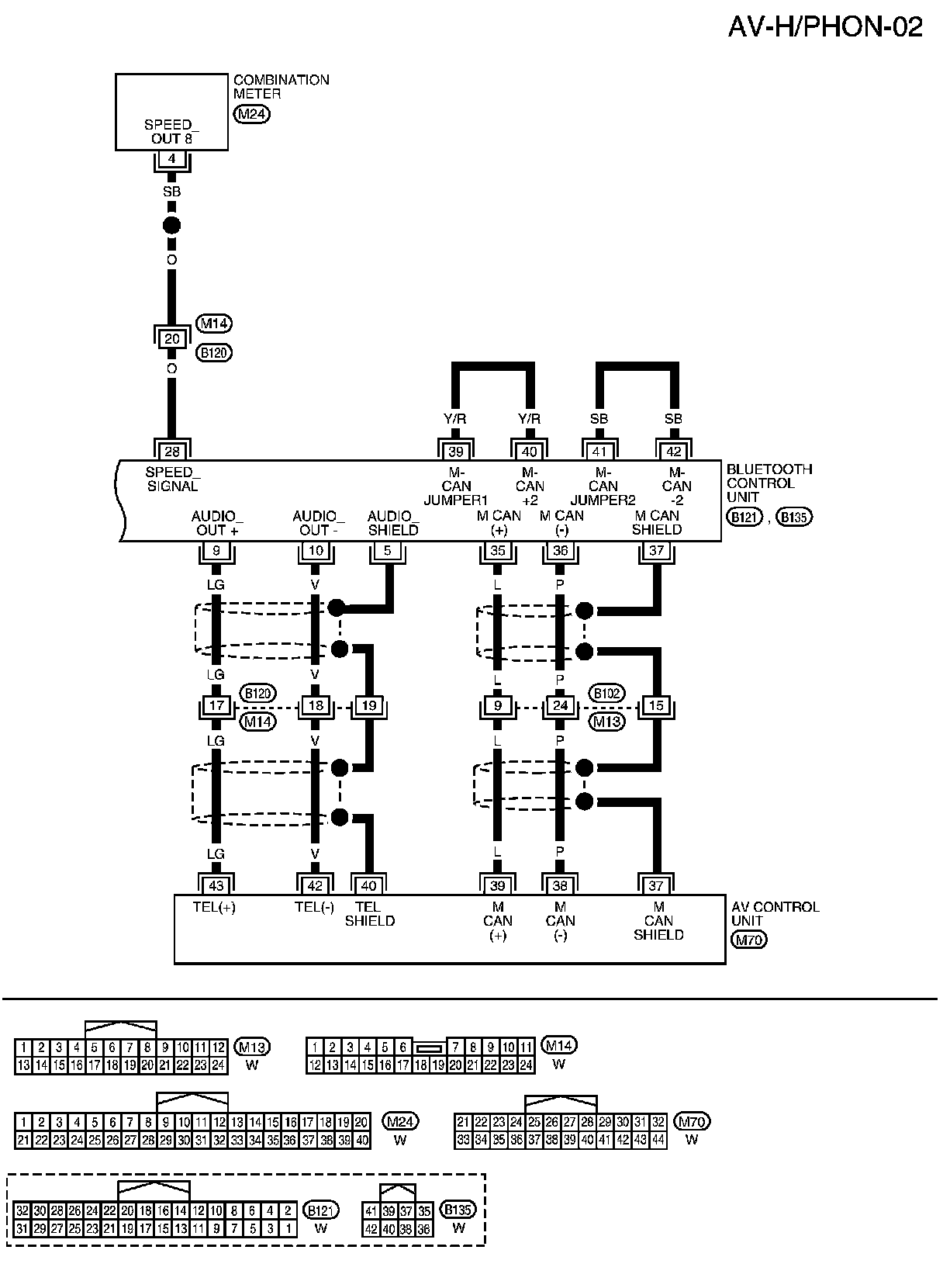

Wiring Diagram - H/PHON
