Nissan-Datsun
>>
2012
>>
Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
TROUBLE DIAGNOSIS

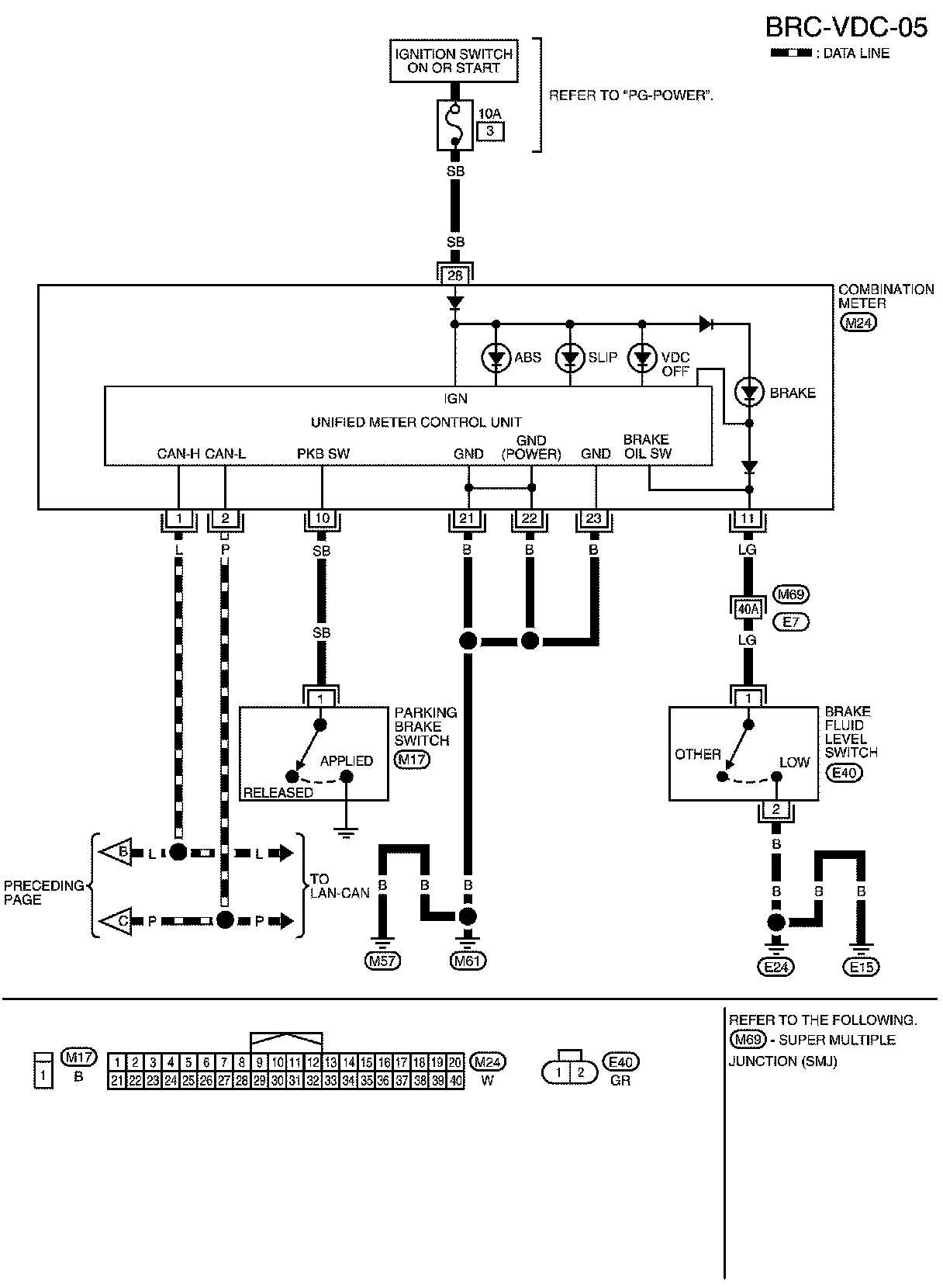

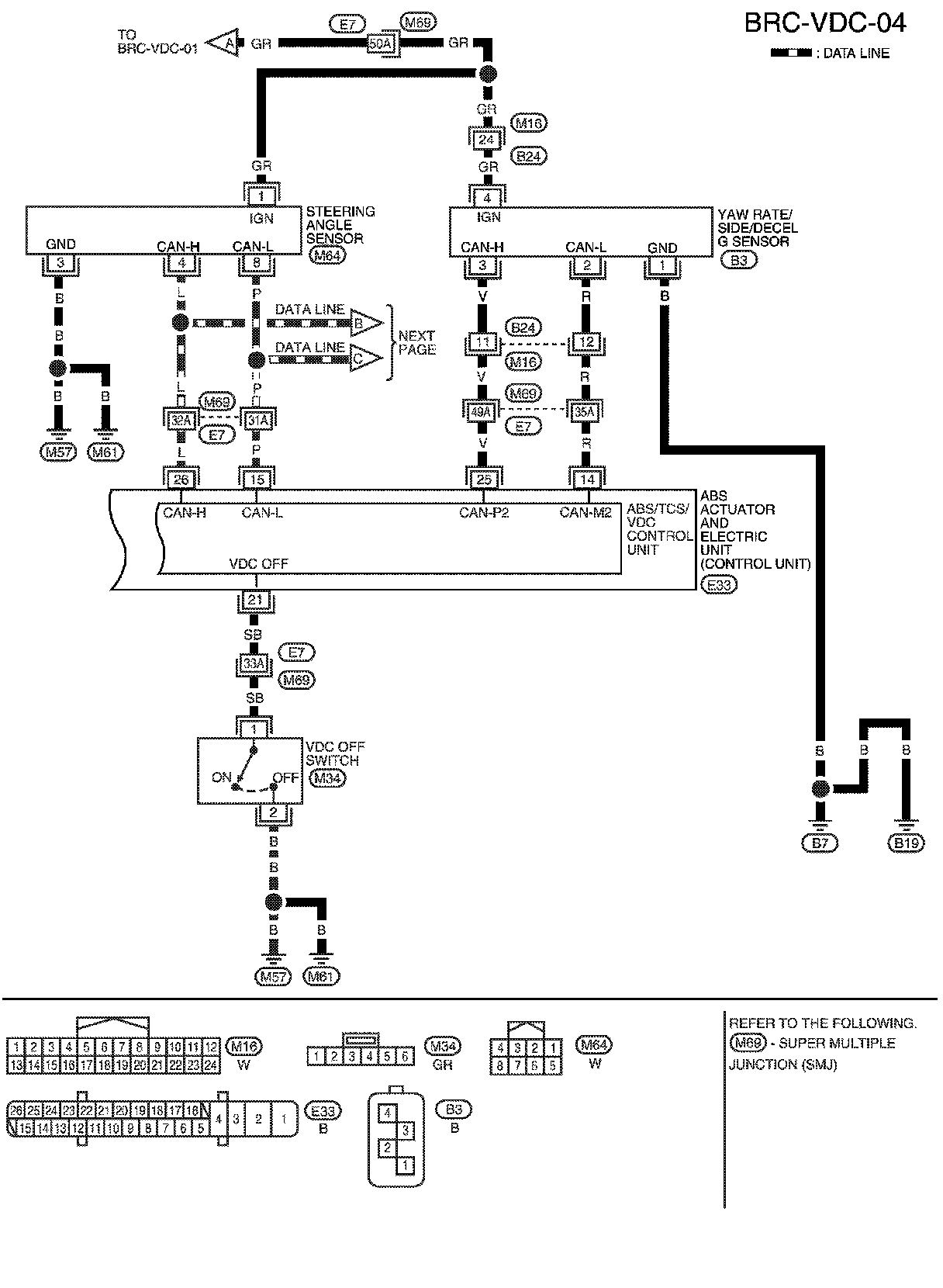

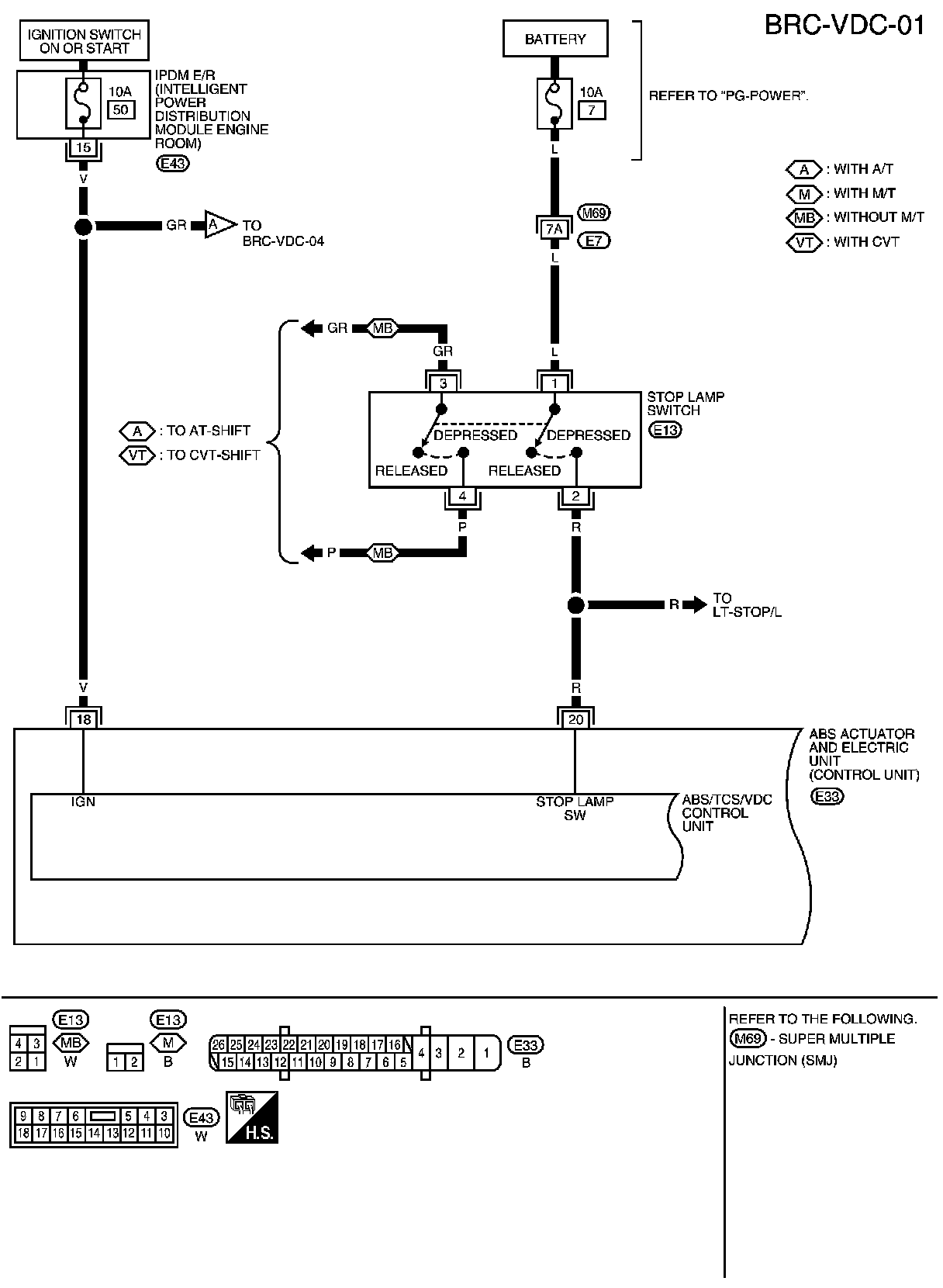

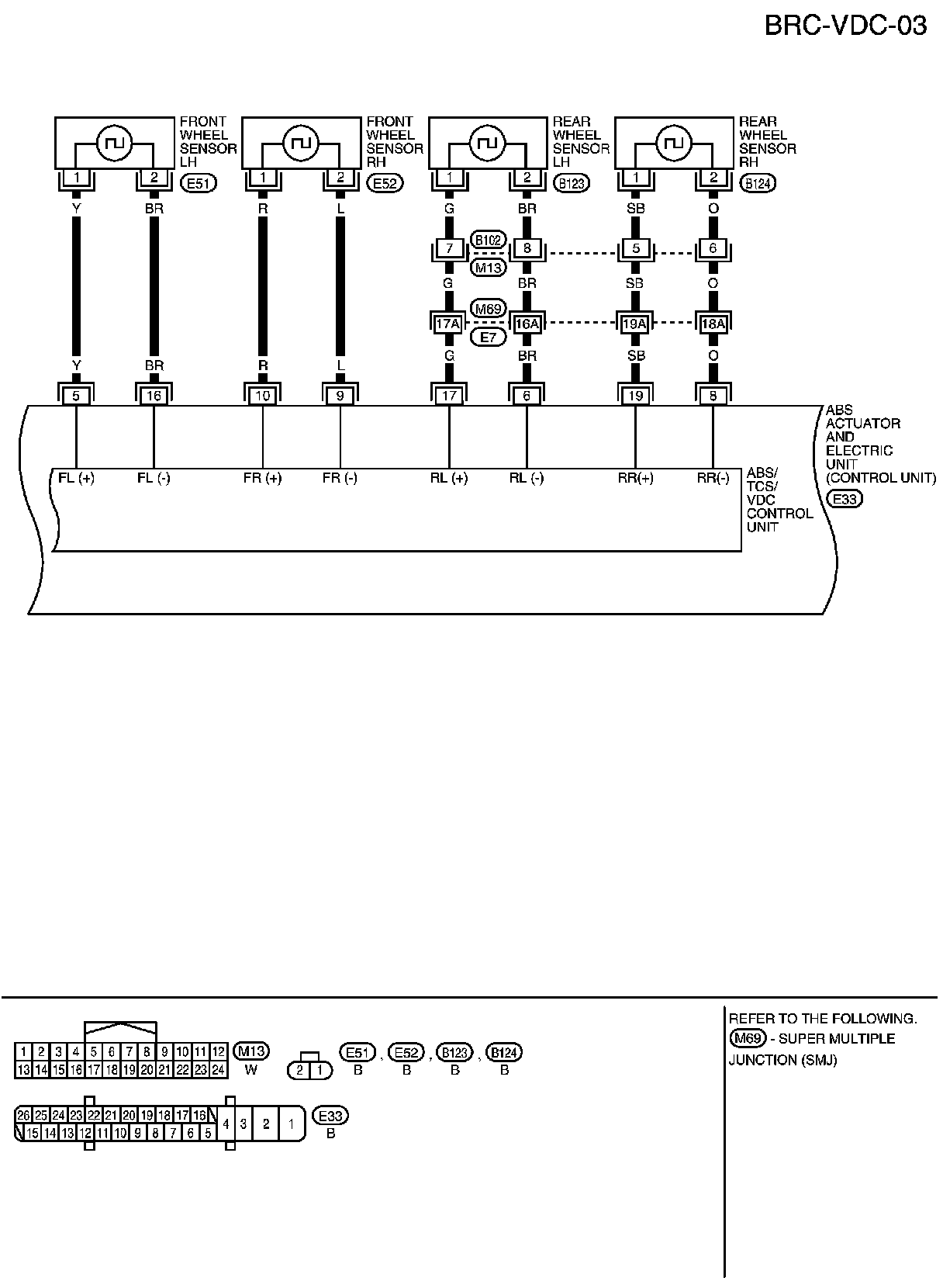

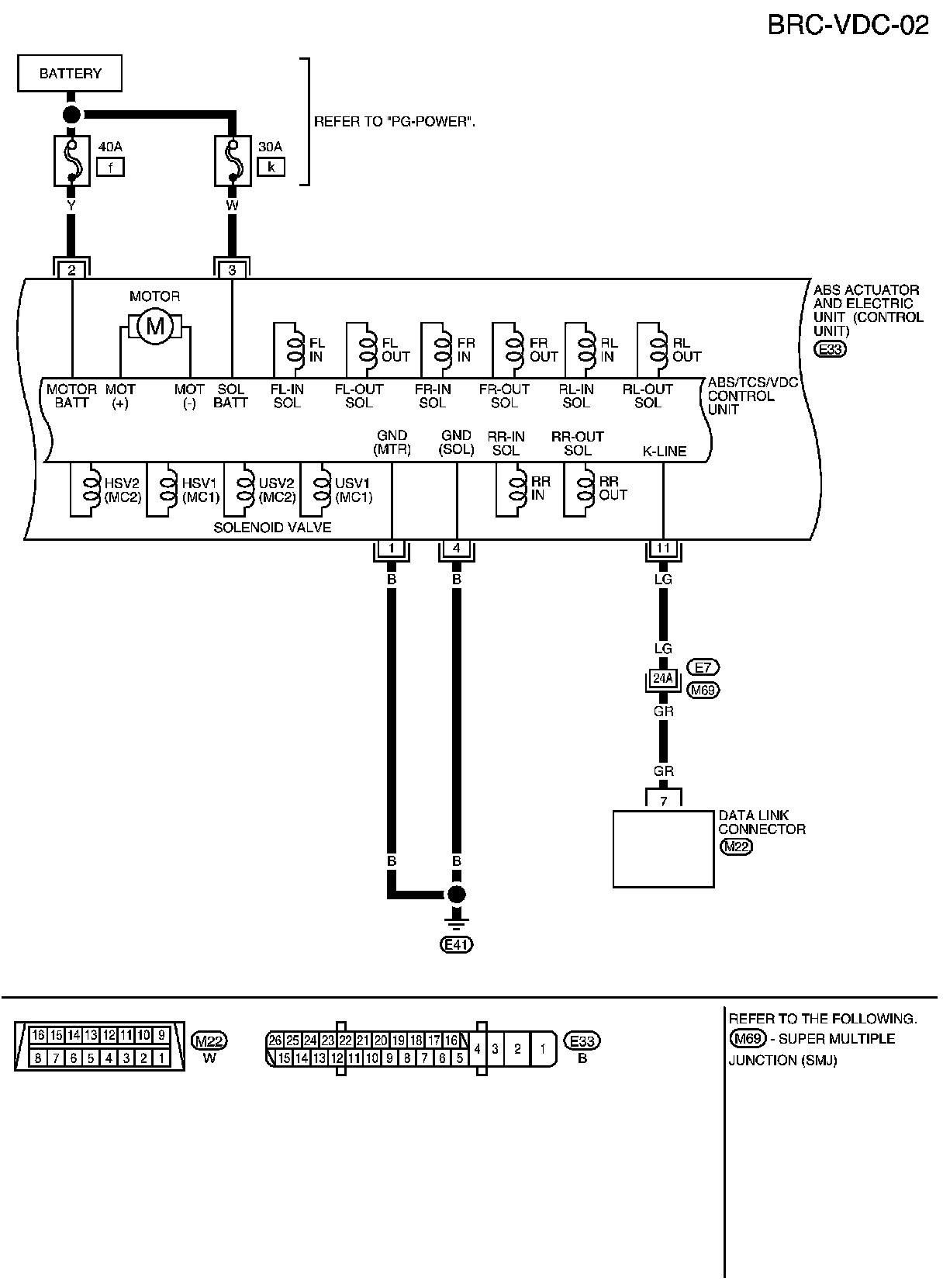

Wiring Diagram - VDC
