Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Description and Operation
>>
Intelligent Key System
>>
Schematic
Schematic

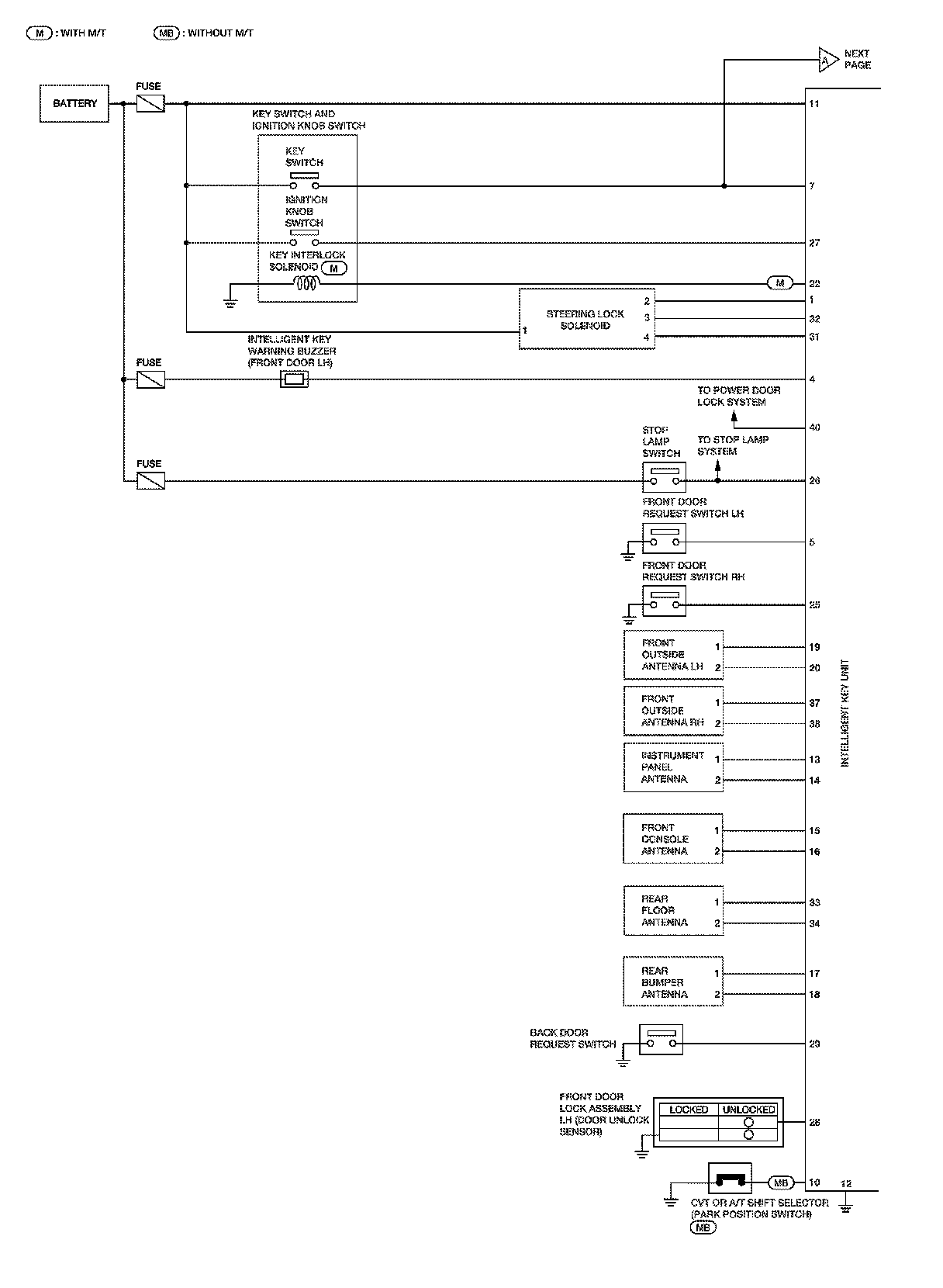

INTELLIGENT KEY SYSTEM
Schematic
