Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

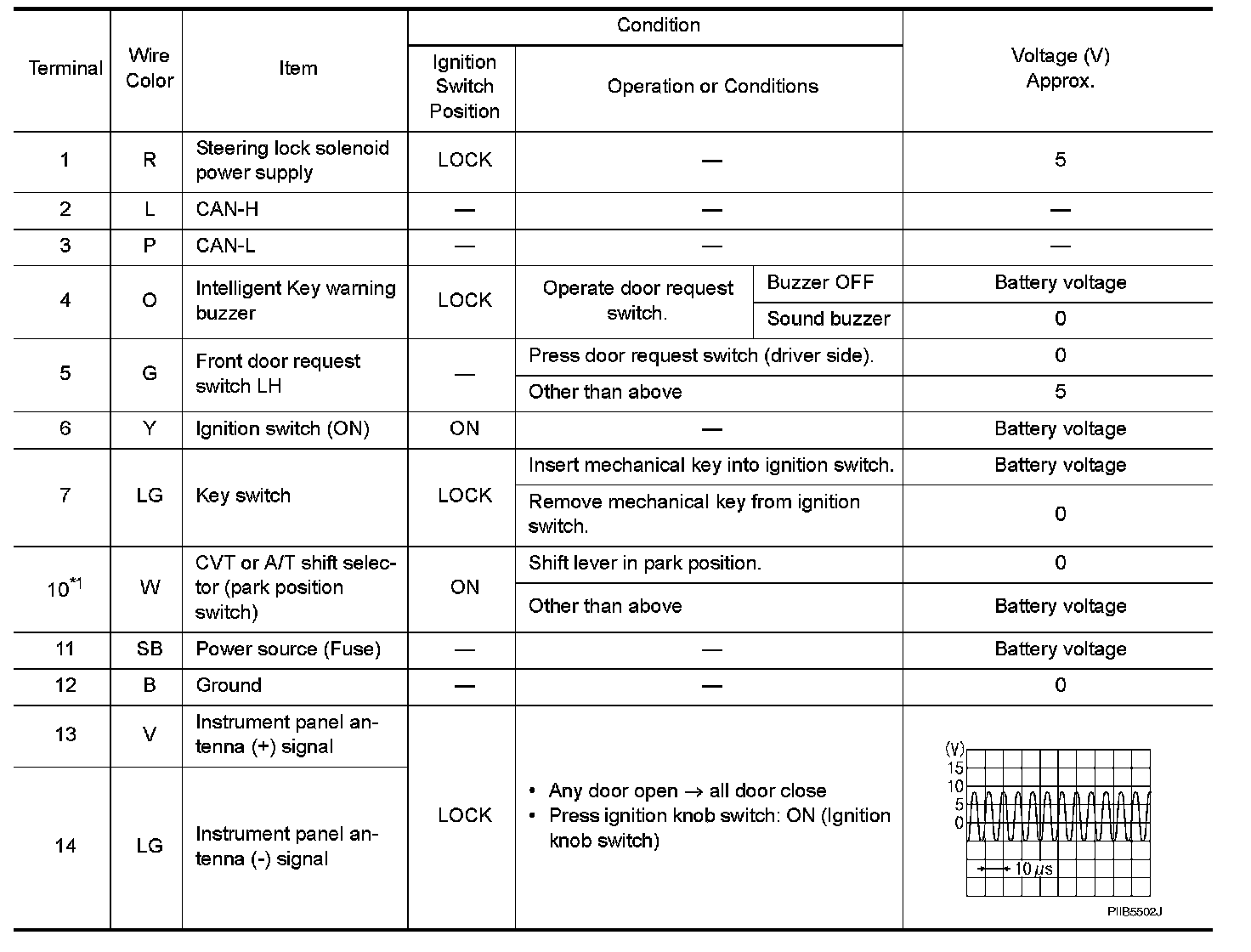

Terminal and Reference Value for Intelligent Key Unit

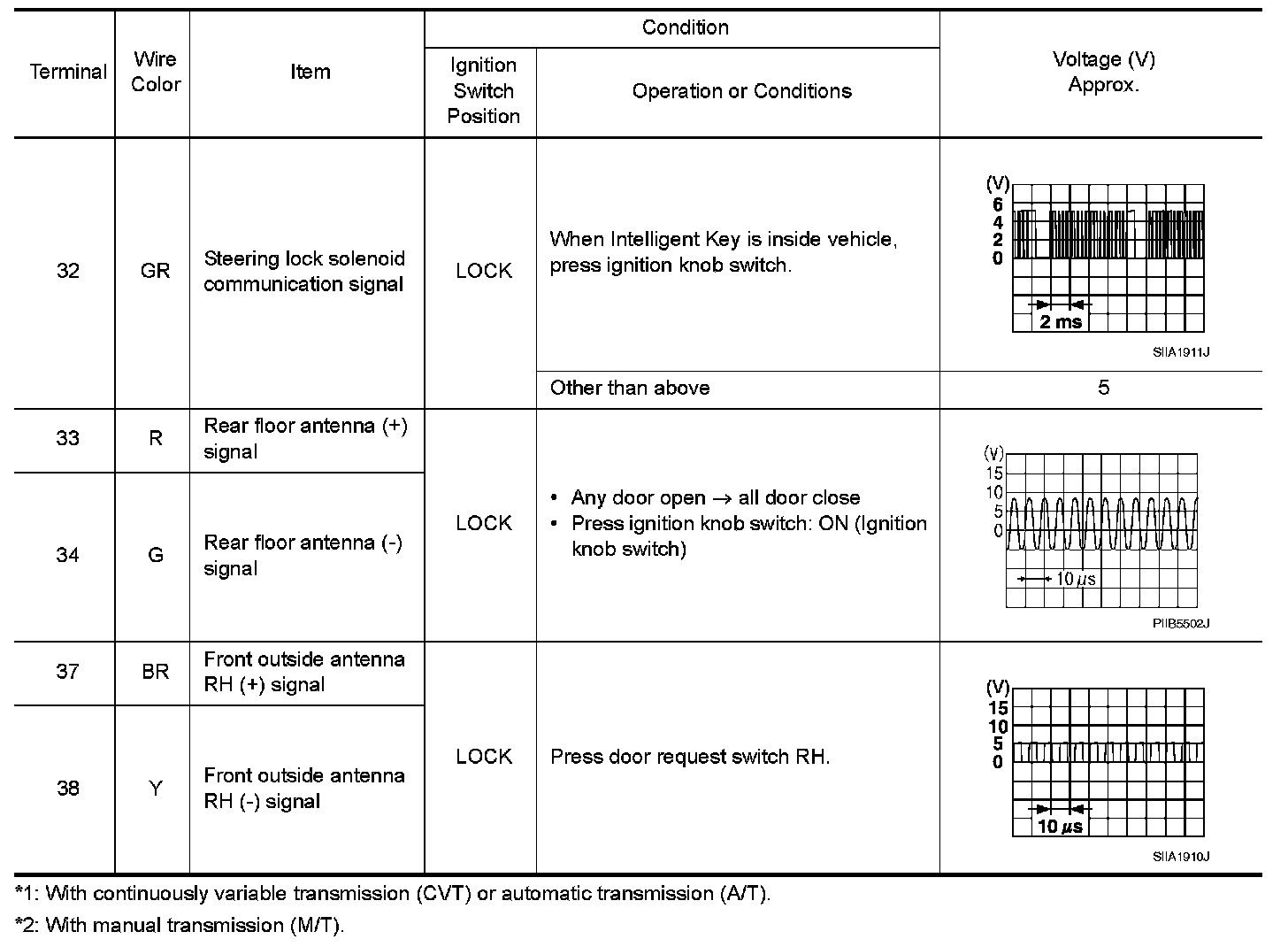

Terminal and Reference Value for Intelligent Key Unit
BACK DOOR LOCK

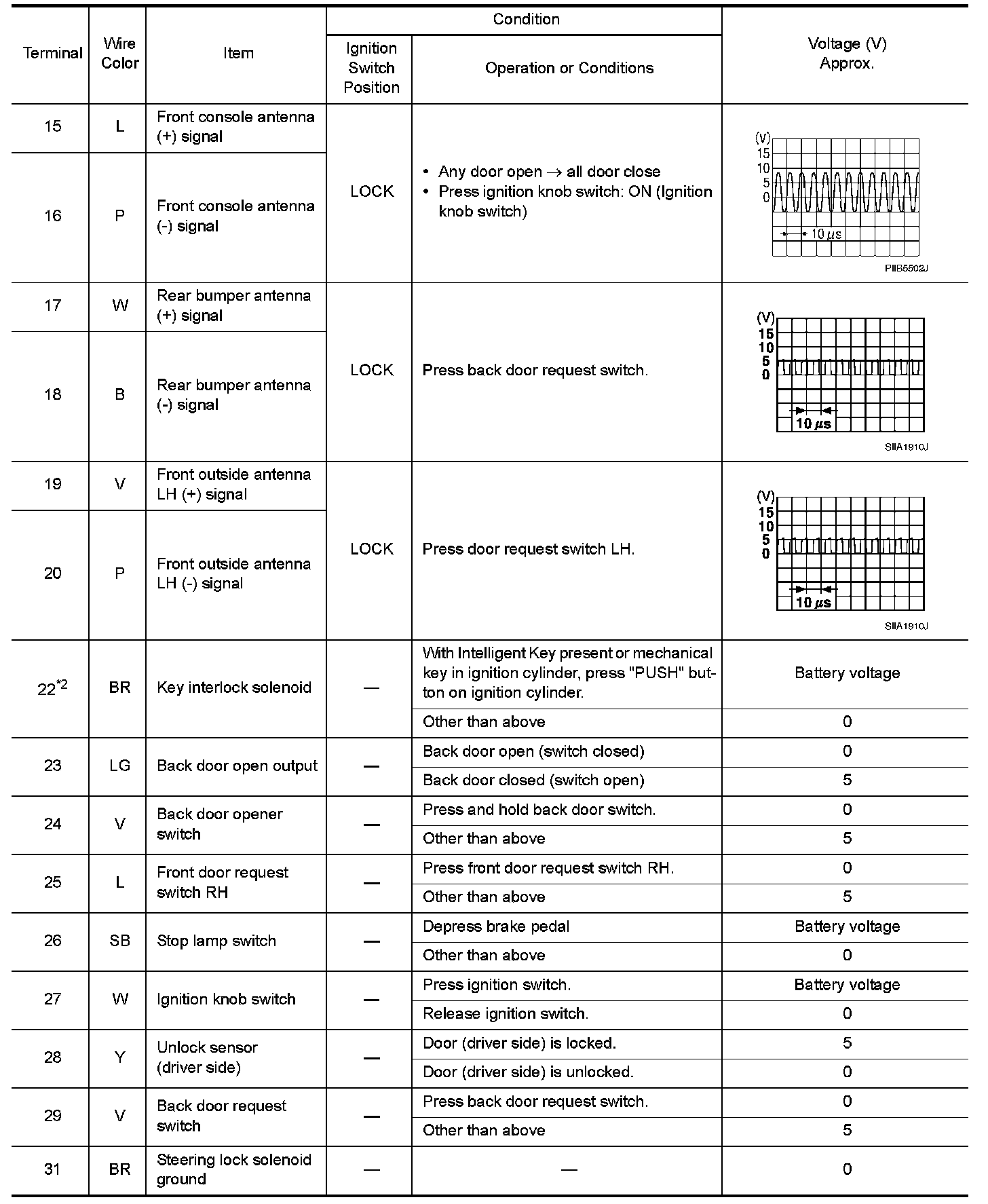

Terminal and Reference Value for Intelligent Key Unit
