Nissan-Datsun
>>
2012
>>
Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Description and Operation
>>
Schematic

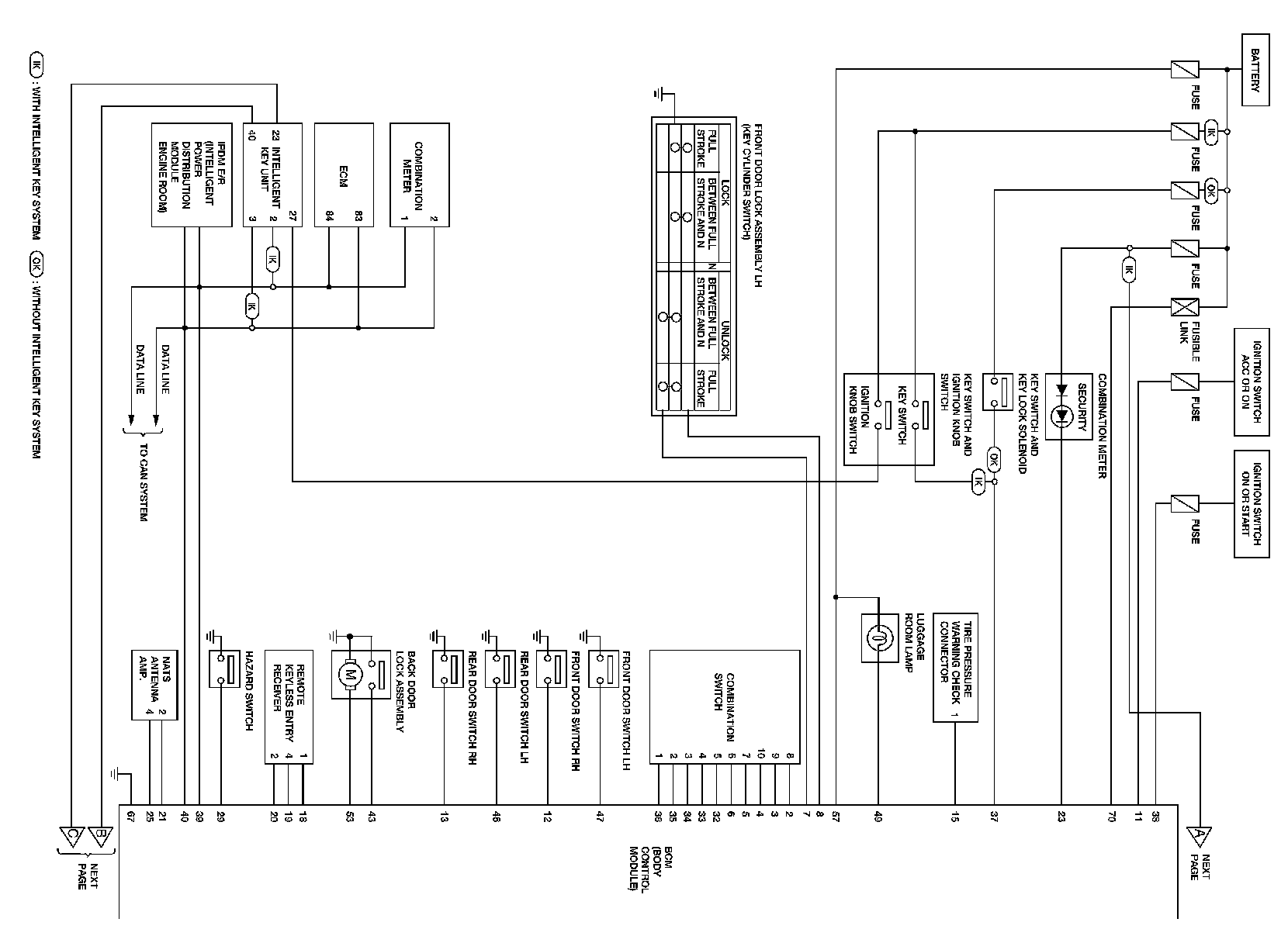

Schematic
BCM
(BODY CONTROL MODULE)
Schematic
