Ipod Connector

iPod(R) CONNECTOR

Removal and Installation


REMOVAL

1.Remove the cluster lid C. Removal And Installation.

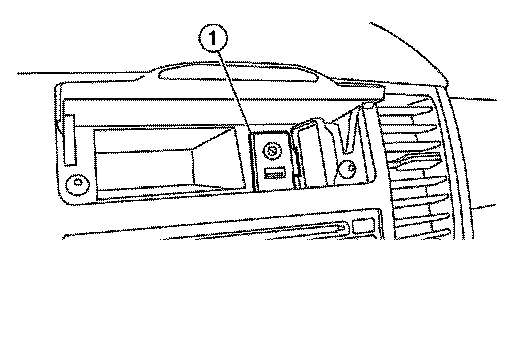

2.Push the pawl from the back of the cluster lid C to remove the iPod(R) connector (1).

INSTALLATION

Installation is in the reverse order of removal.
