Component Inspection

WASHER SWITCH

Component Inspection

Regarding Wiring Diagram information, [1][2]Electrical Diagrams.

1. CHECK WASHER SWITCH

1.Turn the ignition switch OFF.
2.Disconnect combination switch (wiper and washer switch).

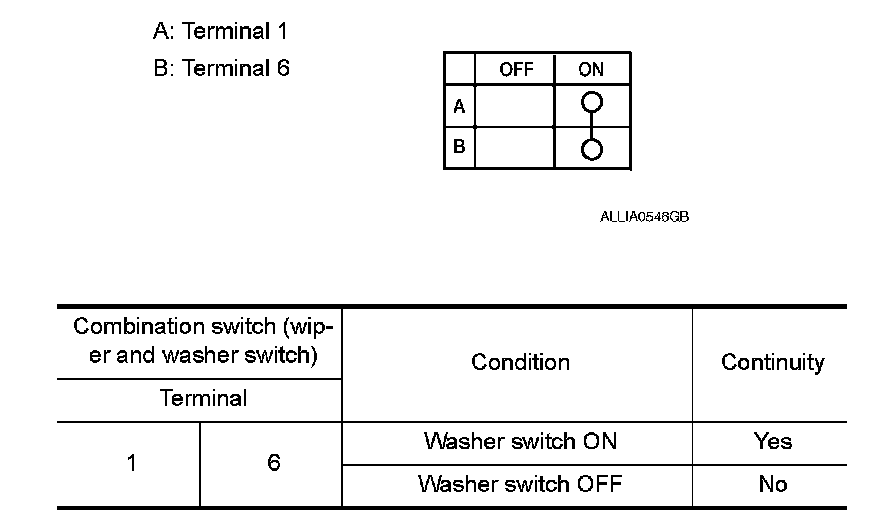

3.Check continuity between the combination switch (wiper and washer switch) terminals.





Is the measurement normal?
YES- Washer switch is normal.
NO- Replace combination switch (wiper and washer switch). Service and Repair.
