Removal And Installation

REAR DOOR GLASS

Removal and Installation


REMOVAL

1.Remove the rear door finisher. Removal And Installation.
2.Position the vapor barrier aside.





3.Temporarily reconnect the power window switch and raise/lower the door window until the glass bolts can be seen.

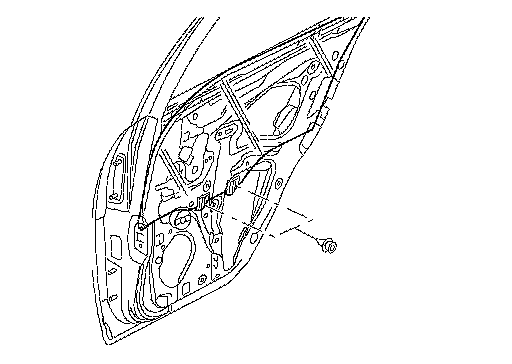

4.Remove the glass bolts, and place the glass on the inner bottom of the panel.





5.Remove the partition sash from the glass run.

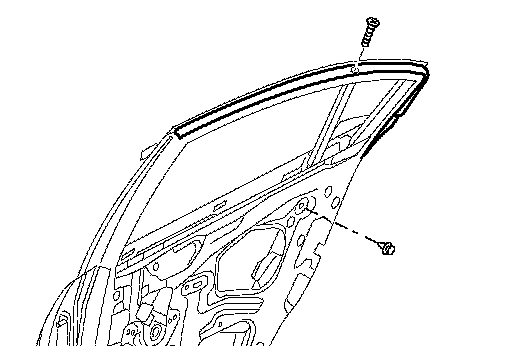

6.Remove the partition sash bolt (lower) and screw (upper) to remove the sash.
7.Remove the partition glass and door glass from the inside of the panel.

INSTALLATION

Installation is in the reverse order of removal.
