Pinout Values and Diagnostic Parameters




TCM

Reference Value

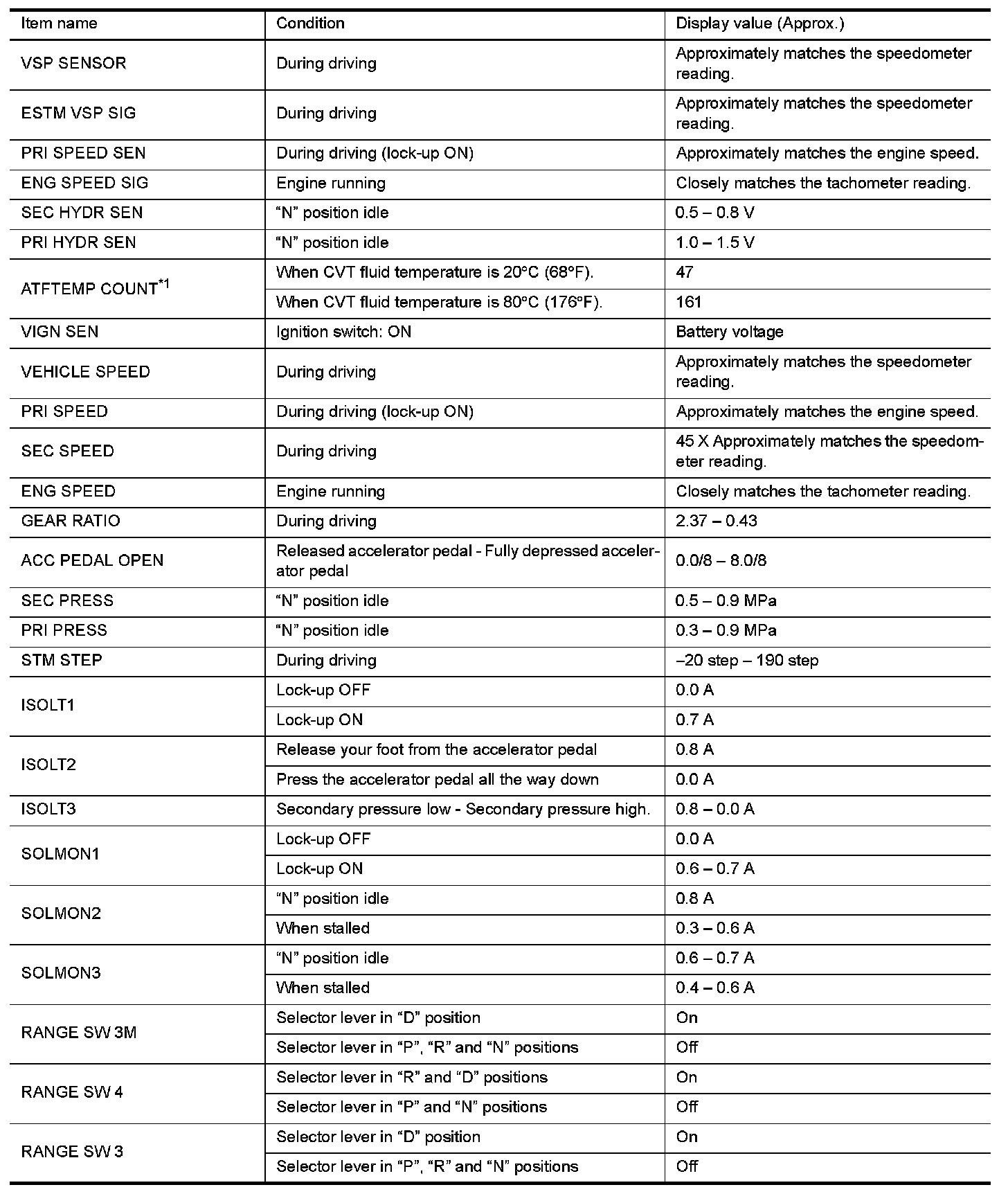

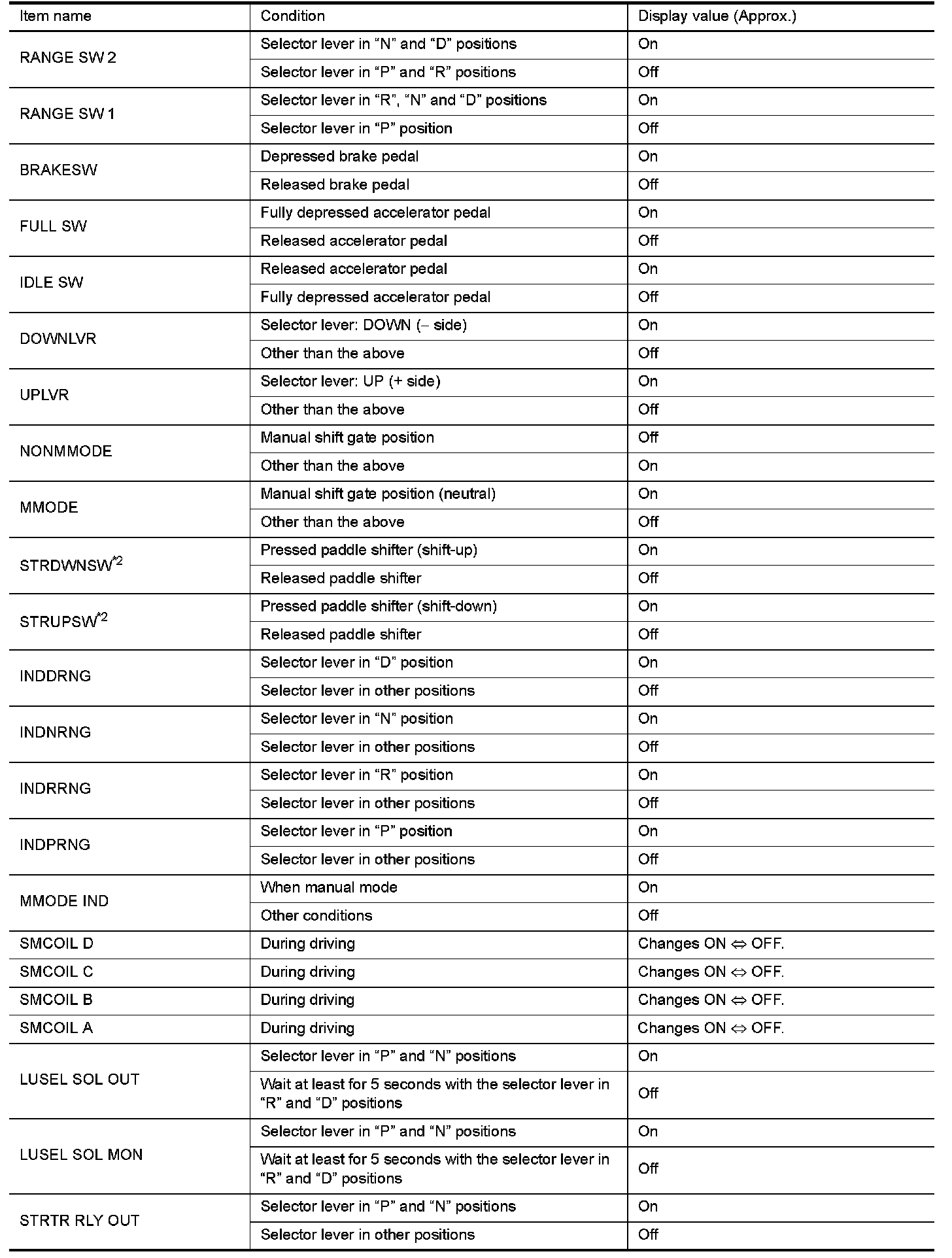

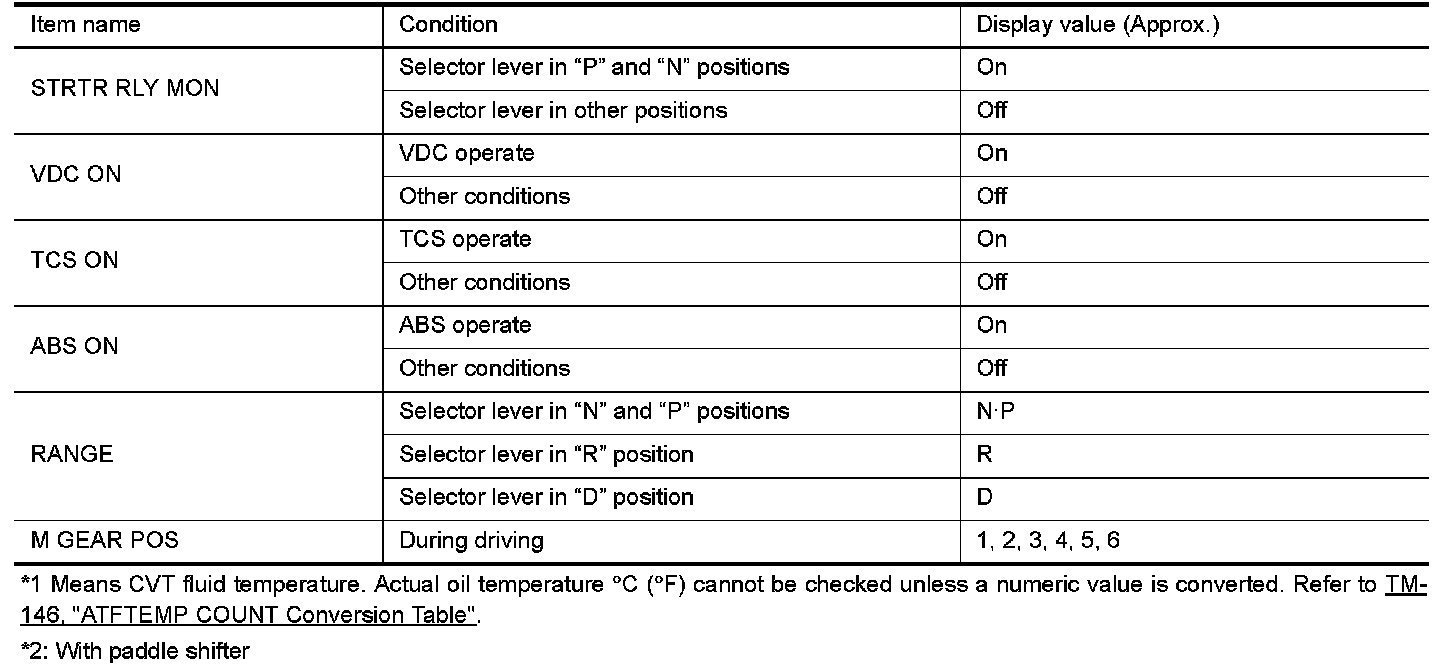

VALUES ON THE DIAGNOSIS TOOL

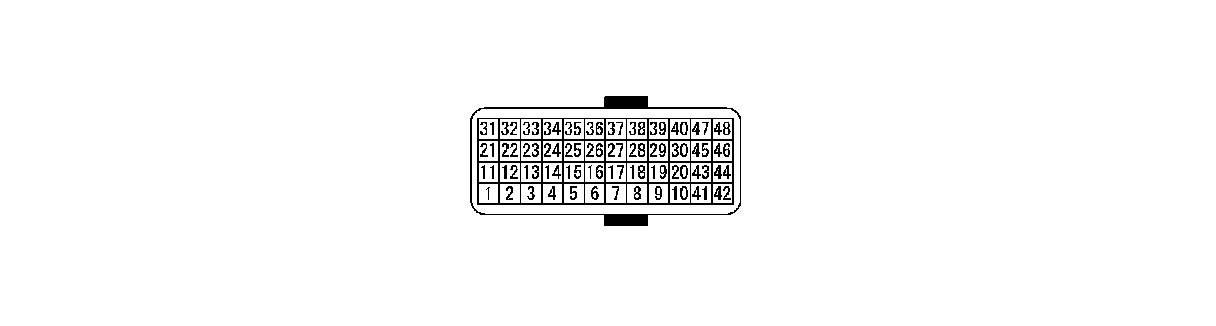

TERMINAL LAYOUT

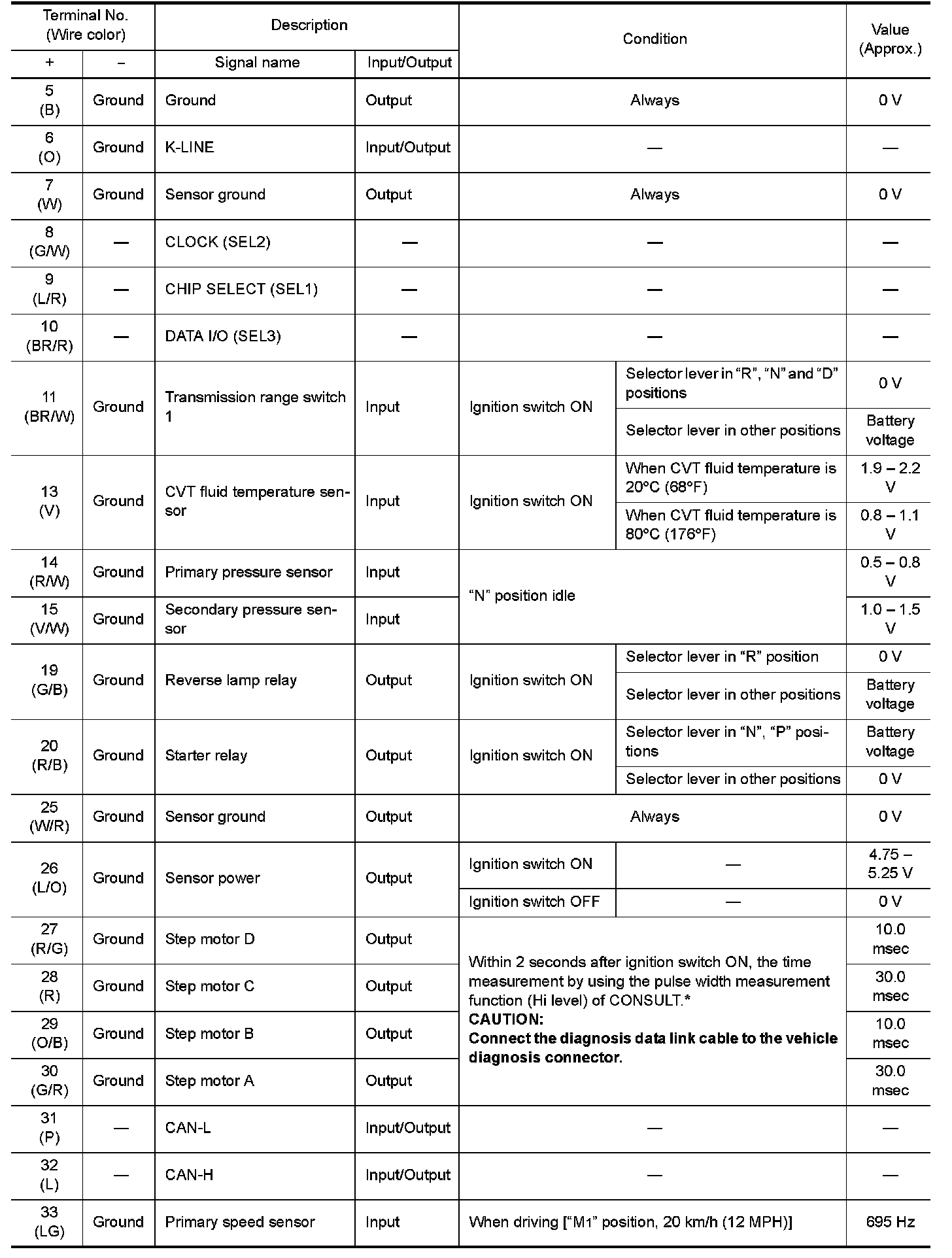

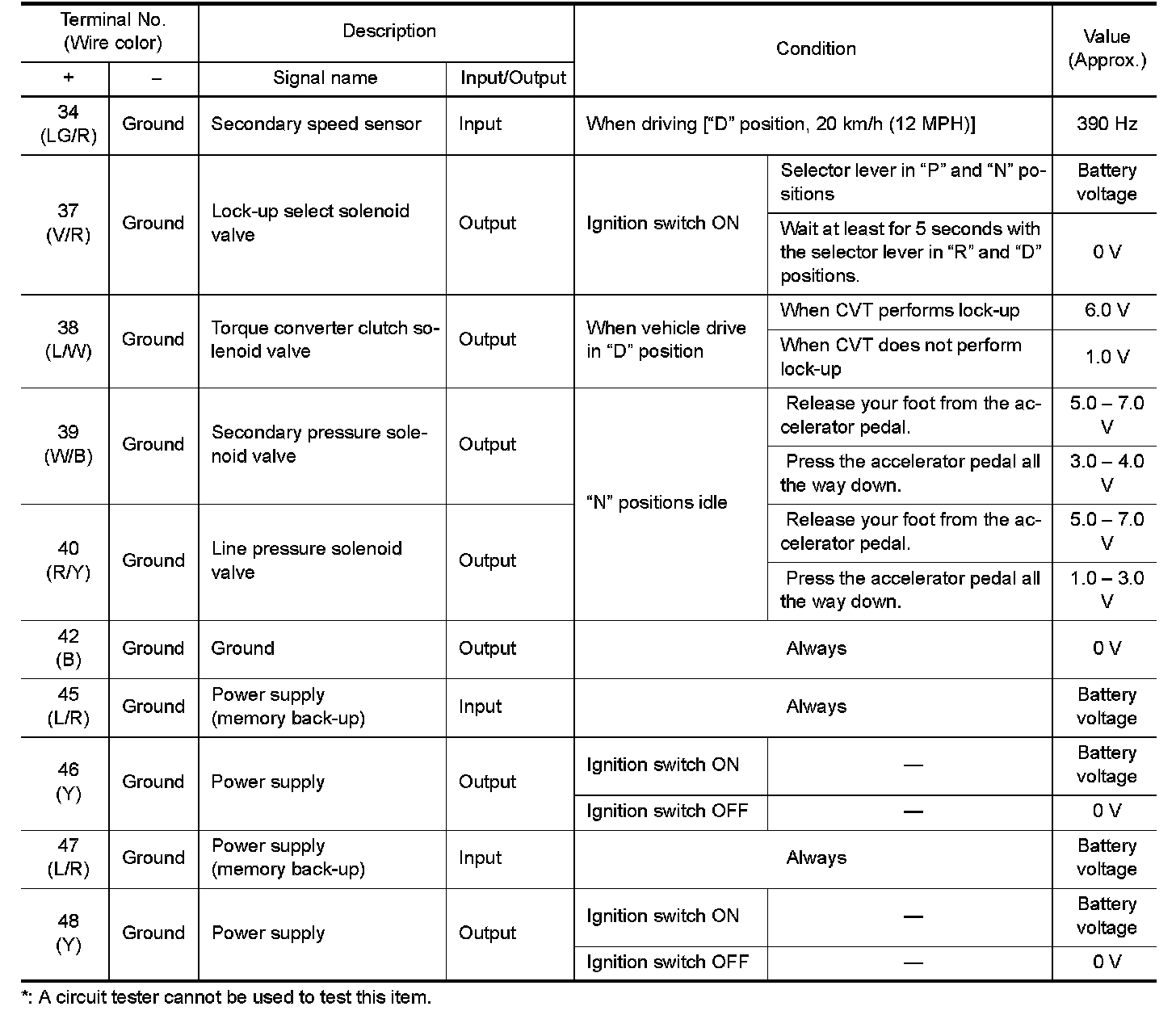

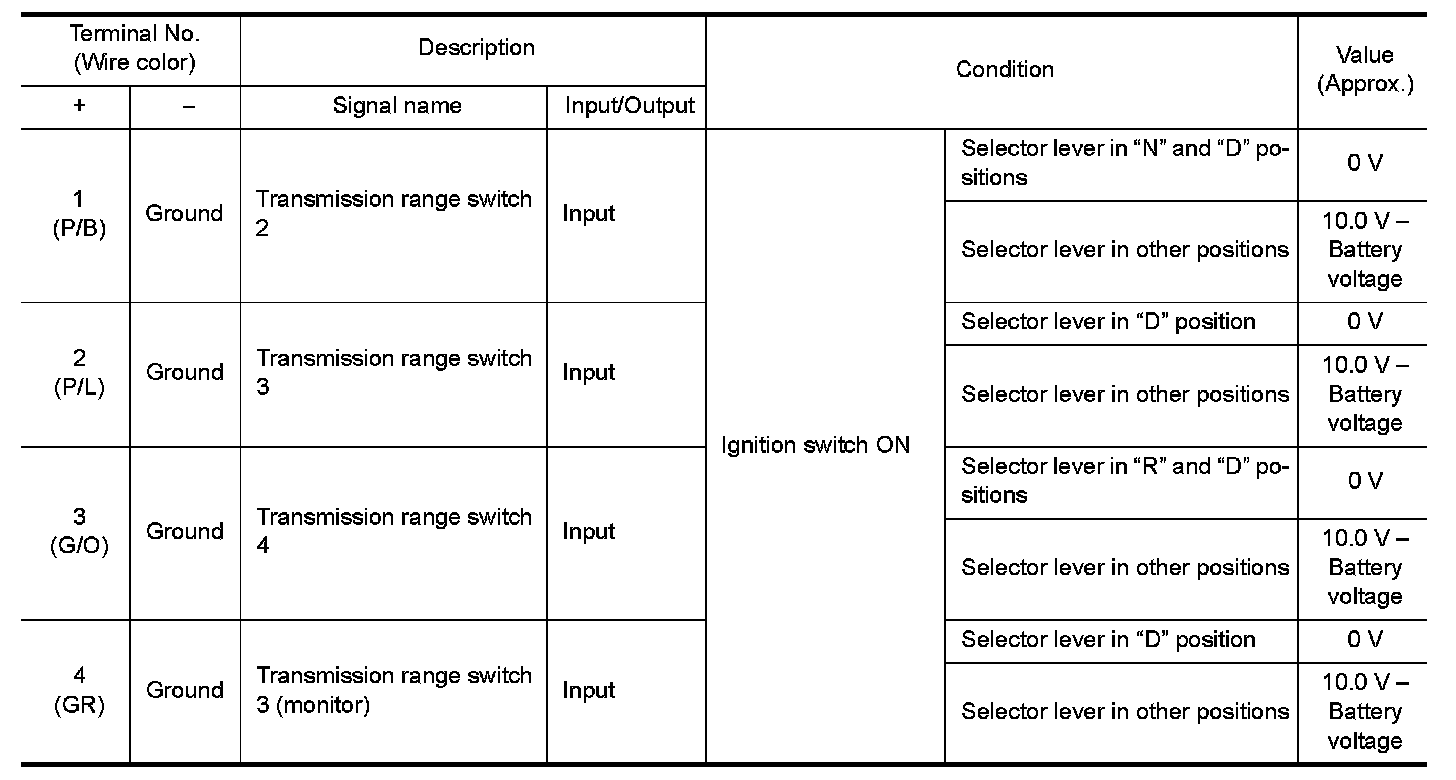

PHYSICAL VALUES
