Removal And Installation

PADDLE SHIFTER

Removal and Installation


REMOVAL

1.Park the vehicle on a level surface.
2.Remove the driver air bag module. Exploded View.
3.Remove the steering wheel. Steering Wheel.
4.Remove the column cover. Exploded View.

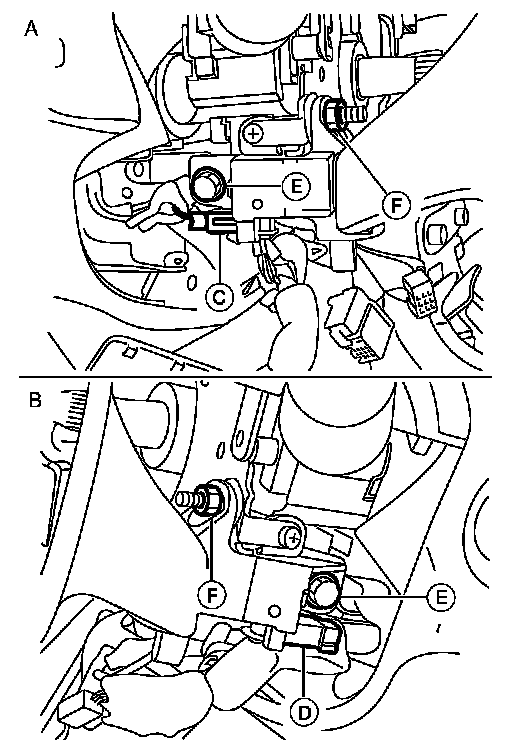

5.Remove the vehicle harness connector (C) and (D) from paddle shifter.





6.Remove the paddle shifter bolts (E) and nuts (F).
7.Remove the paddle shifter from the steering column assembly.

INSTALLATION

Installation is in the reverse order of removal.
