Removal And Installation

DIFFERENTIAL SIDE OIL SEAL

Removal and Installation


REMOVAL

1.Remove front fender protector side cover. Exploded View.
2.Remove front drive shafts. Front Drive Shaft Left Side and Front Drive Shaft Right Side.

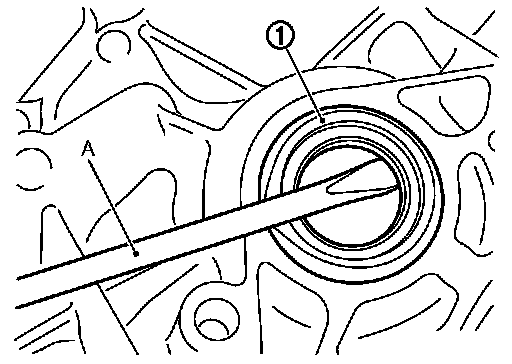

3.Remove differential side oil seals (1) using a suitable tool (A).

CAUTION:
Be careful not to scratch transaxle case and converter housing.

INSTALLATION

Installation is in the reverse order of removal.

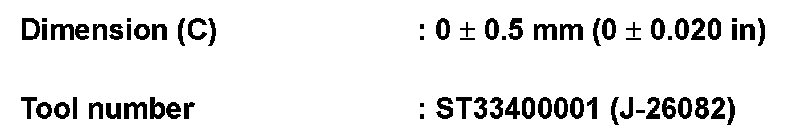

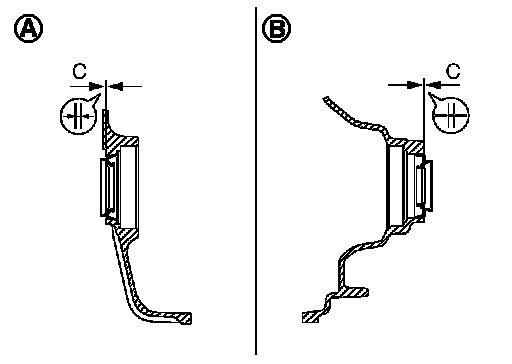

- Install each differential side oil seal evenly using Tool so that differential side oil seal protrudes by the dimension (C) respectively.










CAUTION:
- Do not reuse differential side oil seals.
- Apply CVT fluid to differential side oil seals.
NOTE:
Differential side oil seal removal direction is used as the reference.
