Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Fluid Pan
>>
Service and Repair
>>
Removal and Replacement
>>
Exploded View
Exploded View

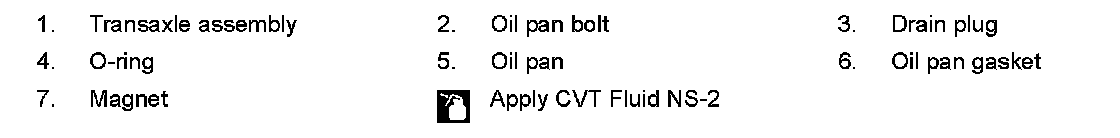

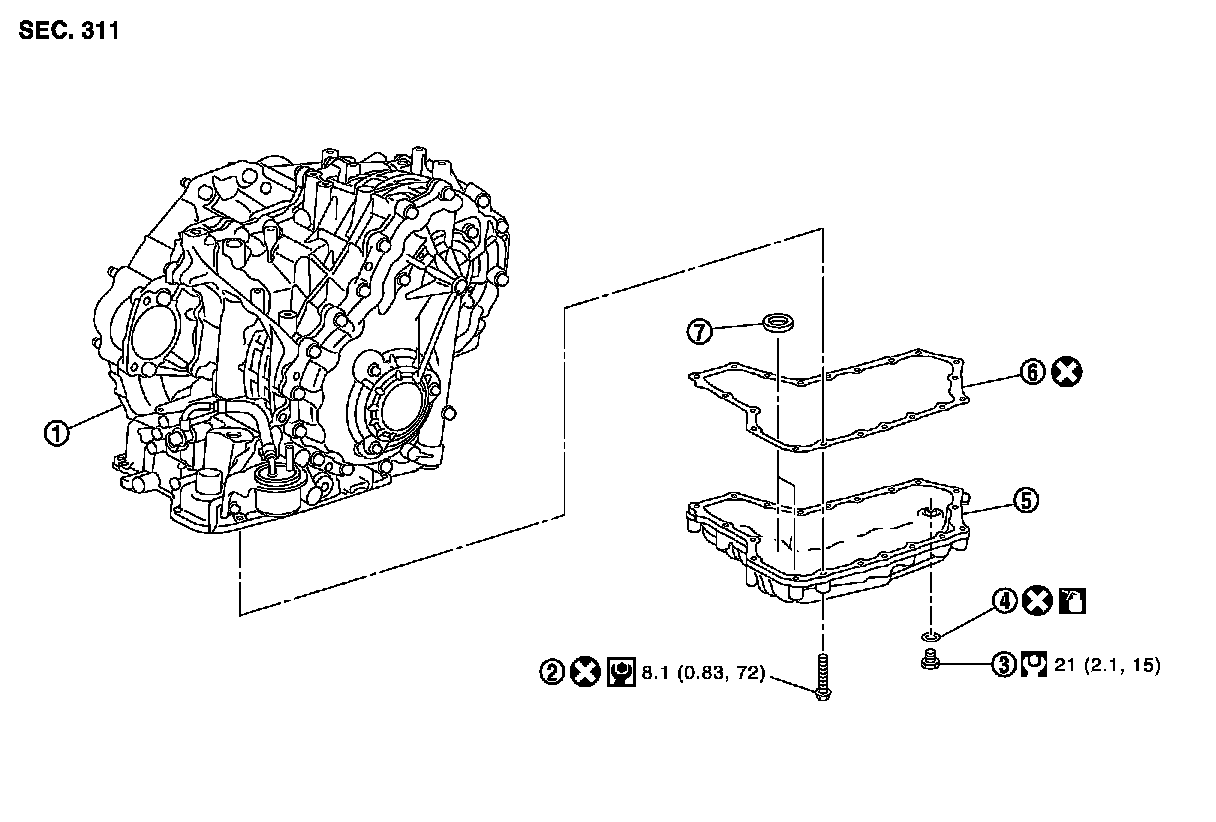

OIL PAN
Exploded View
