Front Suspension

TRANSVERSE LINK

Removal and Installation


REMOVAL

1.Remove tire using power tool.
2.Remove steering knuckle from transverse link using Tool. Exploded View.
Tool number: HT-7252000 (J-25730-B)
3.Remove mounting nuts and washers on lower portion of stabilizer connecting rod.
4.Slightly loosen transverse link mounting bolts.
5.Remove transverse link bolts and nuts, and remove transverse link from suspension member.

INSPECTION AFTER REMOVAL

Visual Inspection
Check transverse link and bushing for deformation, cracks, and other damage. Replace the entire transverse link assembly if cracks, deformation or any other damage is found.
Ball Joint Inspection

CAUTION:
Before measurement, move the ball joint at least ten times by hand to check for smooth movement.
Swing Torque Inspection

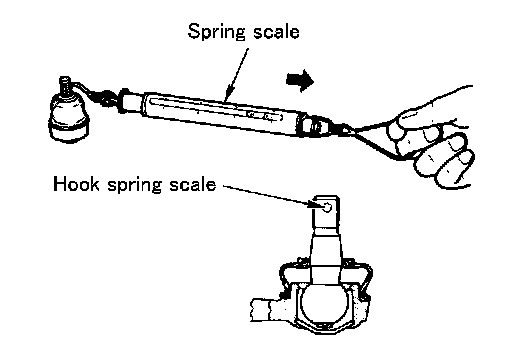

- Hook Tool at cutout on ball stud. Confirm Tool measurement value is within specifications when ball stud begins moving.





Tool number:-(J-44372)
Swing torque: Front Suspension.
Measurement on spring balance : Refer to "Ball Joint".


- If the value is outside the standard, replace transverse link.
Axial Endplay Inspection
- Move tip of ball joint in axial direction to check for looseness.
Axial endplay: Front Suspension.
- If any looseness is noted, replace transverse link.

INSTALLATION

Installation is in the reverse order of removal.
- Exploded View for tightening torque.
- Tighten transverse link bolts with vehicle unladen and all four tires on flat, level ground.
- After installation, check wheel alignment. Component Tests and General Diagnostics.
