With Monochrome Display




STEERING SWITCH

Removal and Installation


REMOVAL

1.Remove the driver airbag module. Removal And Installation.

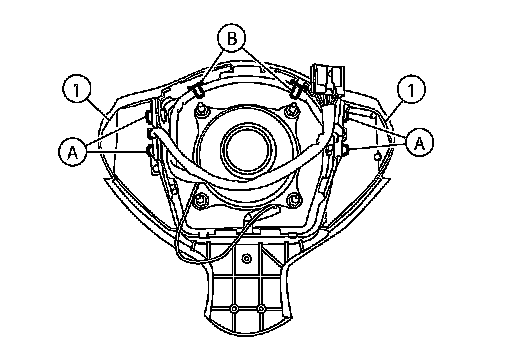

2.Remove the steering wheel audio control switch screws (A), then detach the steering wheel switch harness clips (B) and remove the steering wheel audio control switches (1).

INSTALLATION

Installation is in the reverse order of removal.
