Work Flow

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

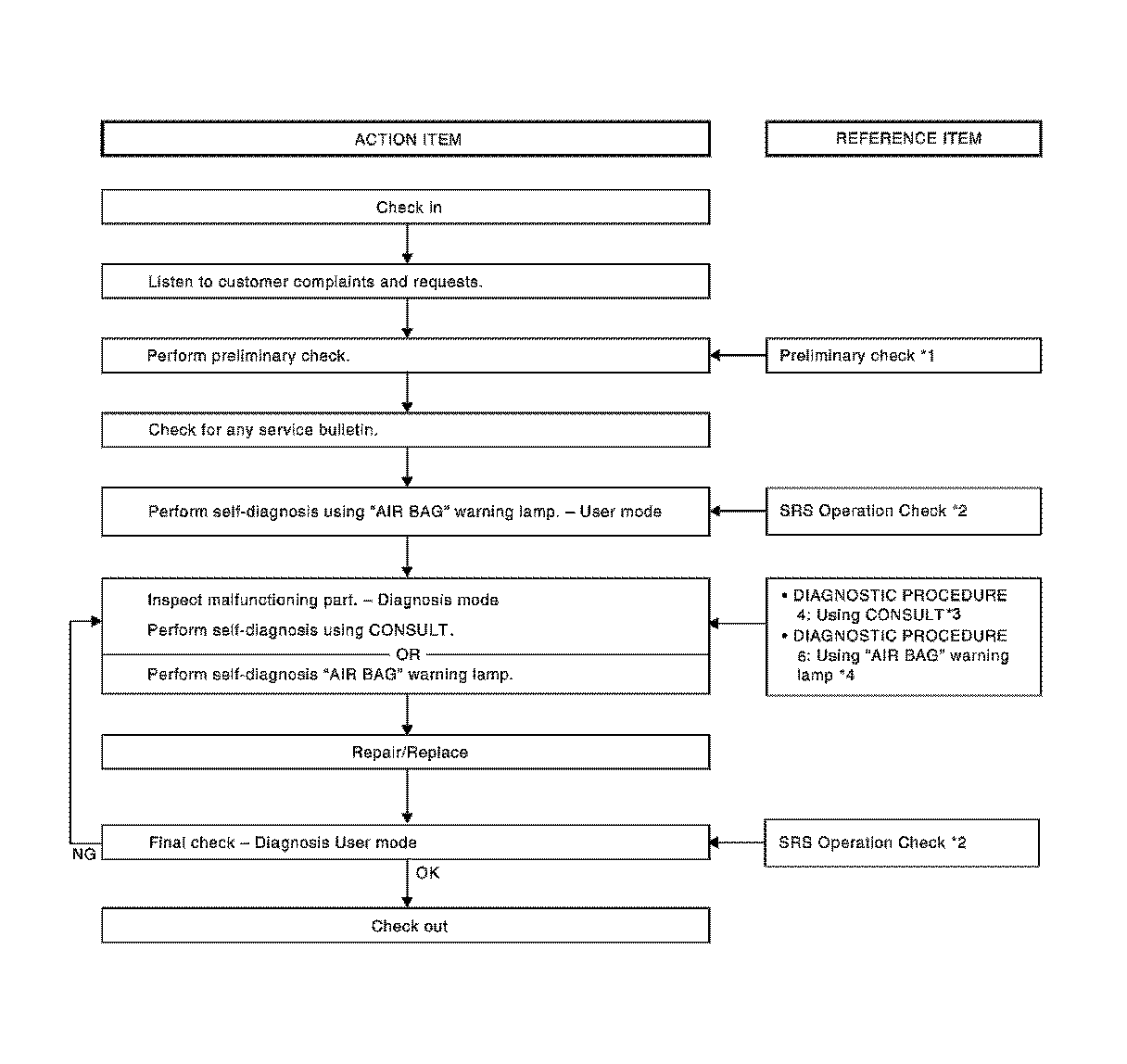

OVERALL SEQUENCE












DETAILED WORK FLOW


1. CUSTOMER INFORMATION

Get detailed information from the customer about the symptom.
- GO TO 2

2. PRELIMINARY CHECK

Perform preliminary check. Trouble Diagnosis Introduction.
- GO TO 3

3. TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.
- GO TO 4

4. USER MODE

Perform self-diagnosis using the "AIR BAG" warning lamp in User mode. Component Tests and General Diagnostics.
- GO TO 5

5. SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS. Trouble Diagnosis With CONSULT (w/CONSULT) or Self-Diagnosis Function (Without CONSULT) (w/o CONSULT).
- GO TO 6

6. REPLACE PART

Replace the malfunctioning part.
- GO TO 7

7. FINAL CHECK

Check SRS using Diagnosis mode and User mode.
Does Diagnosis mode and User mode indicate SRS normal?
YES- Inspection End.
NO- GO TO 5
