Cruise Test

ROAD TEST

Cruise Test


1. CHECK VEHICLE SPEED WHEN SHIFTING GEARS (PART 1)

1.Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.






2.Park vehicle on flat surface.
3.Move selector lever to "P" position.
4.Start engine.
5.Move selector lever to "D" position.

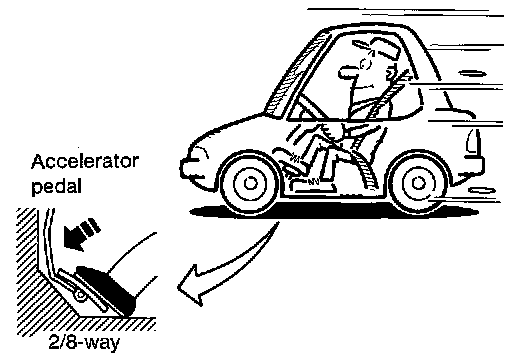

6.Accelerate vehicle at 2/8 throttle opening and check "Vehicle
Speed When Shifting Gears".
-Read vehicle speed and engine speed. Vehicle Speed When Shifting Gears.
Is the inspection result normal?
YES- GO TO 2.
NO- Symptom Related Diagnostic Procedures. GO TO 2.

2. CHECK VEHICLE SPEED WHEN SHIFTING GEARS (PART 2)

1.Park vehicle on flat surface.
2.Move selector lever to "D" position.

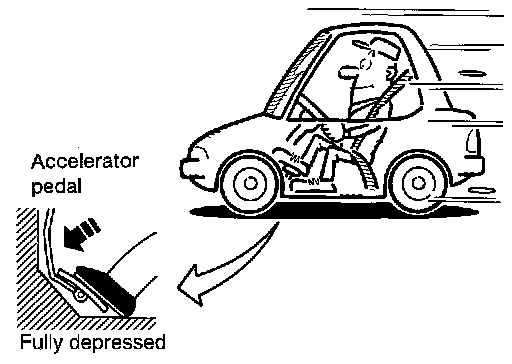

3.Accelerate vehicle at 8/8 throttle opening and check "Vehicle
Speed When Shifting Gears".
-Read vehicle speed and engine speed. Vehicle Speed When Shifting Gears.
Is the inspection result normal?
YES- GO TO 3.
NO- Symptom Related Diagnostic Procedures. GO TO 3.

3. CHECK DS MODE FUNCTION

Move to "DS" mode from "D" position.
Does it switch to "DS" mode?
YES- GO TO 4.
NO- Symptom Related Diagnostic Procedures. GO TO 4.

4. CHECK MANUAL MODE FUNCTION

Move to manual mode from "DS" position.
Does it switch to manual mode?
YES- GO TO 5.
NO- Symptom Related Diagnostic Procedures. GO TO 5.

5. CHECK SHIFT UP FUNCTION

During manual mode driving, is upshift from M1 --> M2 --> M3 --> M4 --> M5 --> M6 performed?
- Read vehicle speed and engine speed. CONSULT Function.
Is upshifting correctly performed?
YES - GO TO 6.
NO- Symptom Related Diagnostic Procedures. GO TO 6.

6. CHECK SHIFT DOWN FUNCTION

During manual mode driving, is downshift from M6 --> M5 --> M4 --> M3 --> M2 --> M1 performed?
- Read vehicle speed and engine speed. CONSULT Function.
Is downshifting correctly performed?
YES - GO TO 7.
NO- Symptom Related Diagnostic Procedures. GO TO 7.

7. CHECK ENGINE BRAKE FUNCTION

Check engine brake.
Does engine braking effectively reduce vehicle speed in "M1" position?
YES- 1.Stop the vehicle.
2.Perform "Self Diagnostic Results" in "TRANSMISSION".
NO- Symptom Related Diagnostic Procedures. Then continue trouble diagnosis.
