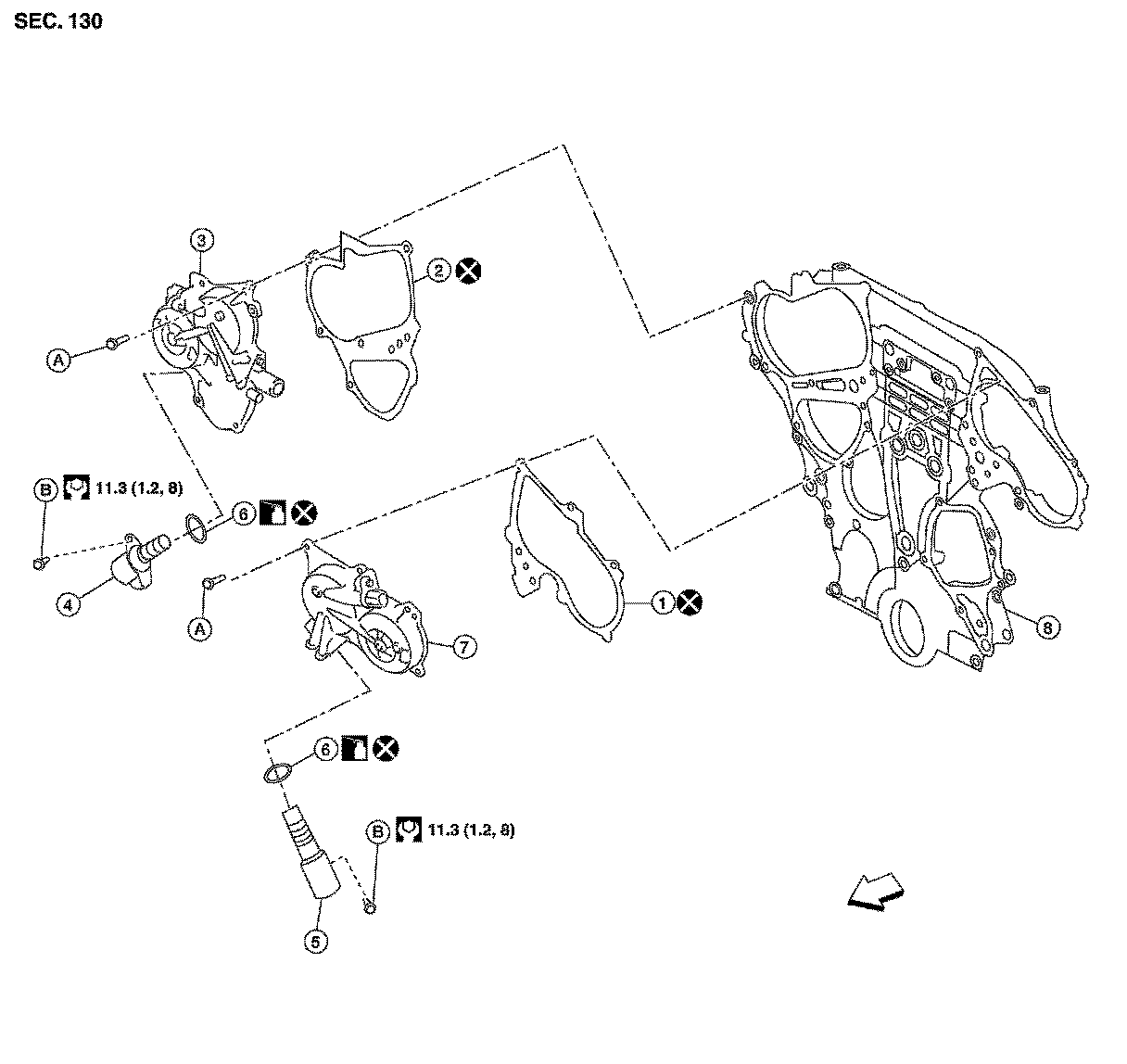

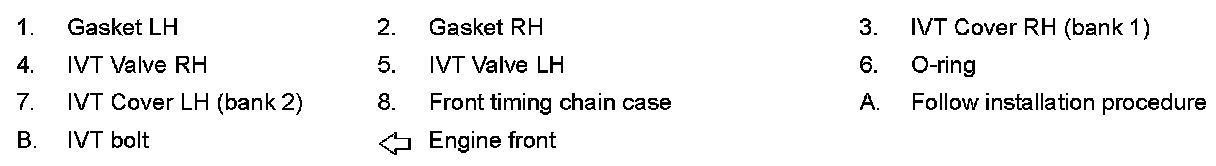

Intake Valve Timing Control Solenoid Valve (LH) (Bank 2)

INTAKE VALVE TIMING CONTROL

Intake Valve Timing Control Solenoid Valve (LH) (bank 2)












REMOVAL

1.Remove hood ledge cover.
2.Remove coolant reservoir and set aside.
3.Disconnect Intake valve timing control solenoid valve connector.
4.Remove Intake valve timing control solenoid valve cover. Removal And Installation.
5.Remove Intake valve timing control solenoid valve and O-ring from Intake valve timing control solenoid valve cover.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
- Replace the O-ring for the Intake valve timing control solenoid valve with a new one, then lubricate
O-ring with engine oil before installing.
- Do not reuse O-ring.

Intake valve timing control solenoid valve bolt : 11.3 Nm (1.2 kg-m, 8 ft-lb)
