Tire Pressure Monitor Receiver / Transponder: Service and Repair

TIRE PRESSURE RECEIVER

Removal and Installation


REMOVAL

1.Remove instrument lower cover LH. Exploded View.

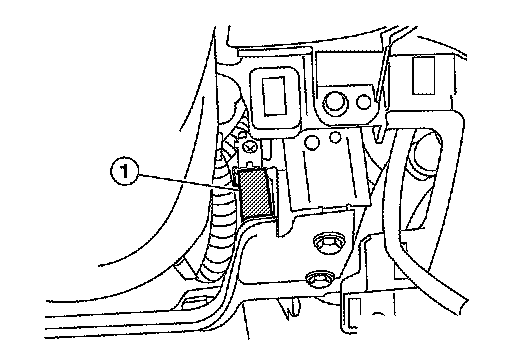

2.Locate tire pressure receiver (1) to the right of the steering column and disconnect tire pressure receiver electrical connector.
3.Remove tire pressure receiver (1) from bracket using a suitable tool to release the bracket.

INSTALLATION

Installation is in the reverse order of removal.
