REFRIGERATION SYSTEM

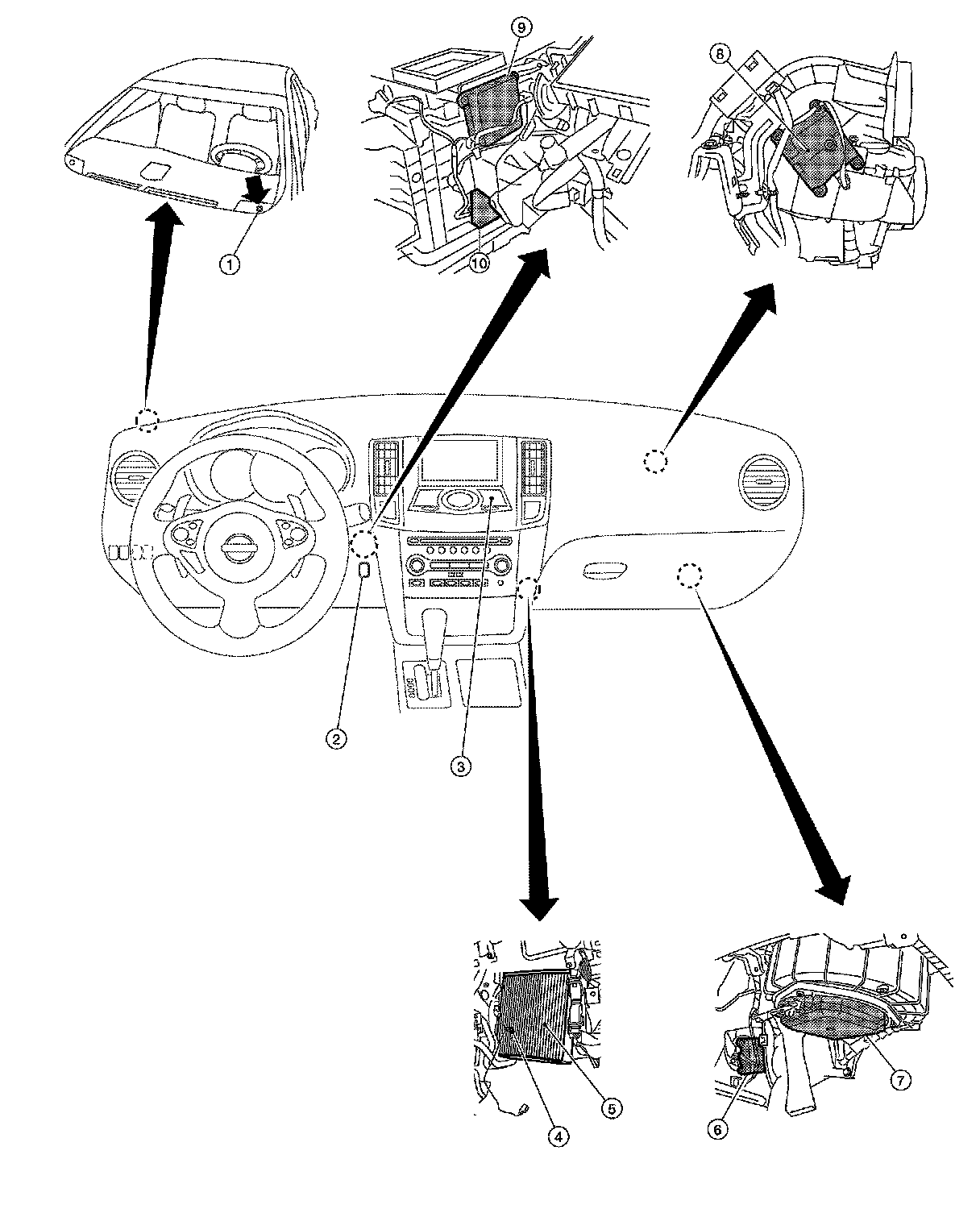

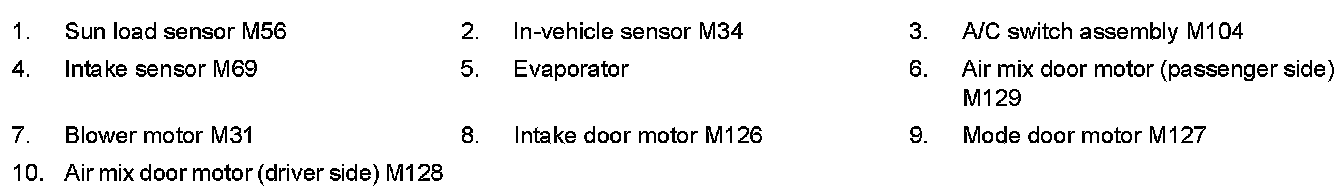

WITH MONOCHROME DISPLAY : Component Part Location
ENGINE COMPARTMENT
PASSENGER COMPARTMENT
