With Monochrome Display

INTAKE SENSOR

Removal and Installation


REMOVAL






1.Remove the evaporator. Service and Repair.

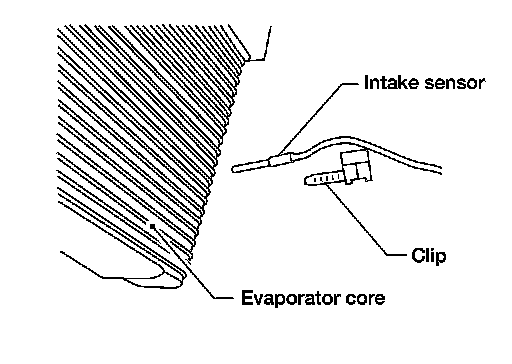

2.Release the intake sensor clip and then remove the intake sensor.

CAUTION:
- Mark the mounting position of the intake sensor.
- Do not damage the evaporator core.

INSTALLATION

Installation is in the reverse order of removal.
