Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Timing Components
>>
Timing Cover
>>
Service and Repair
>>
Front Timing Chain Case
>>

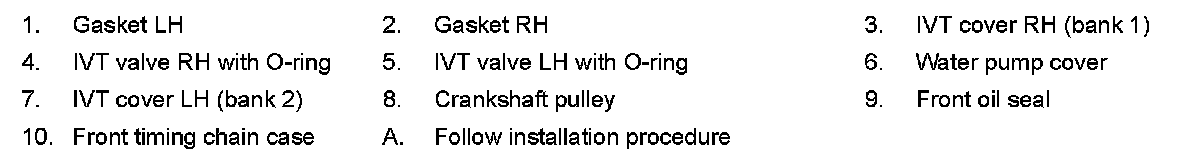

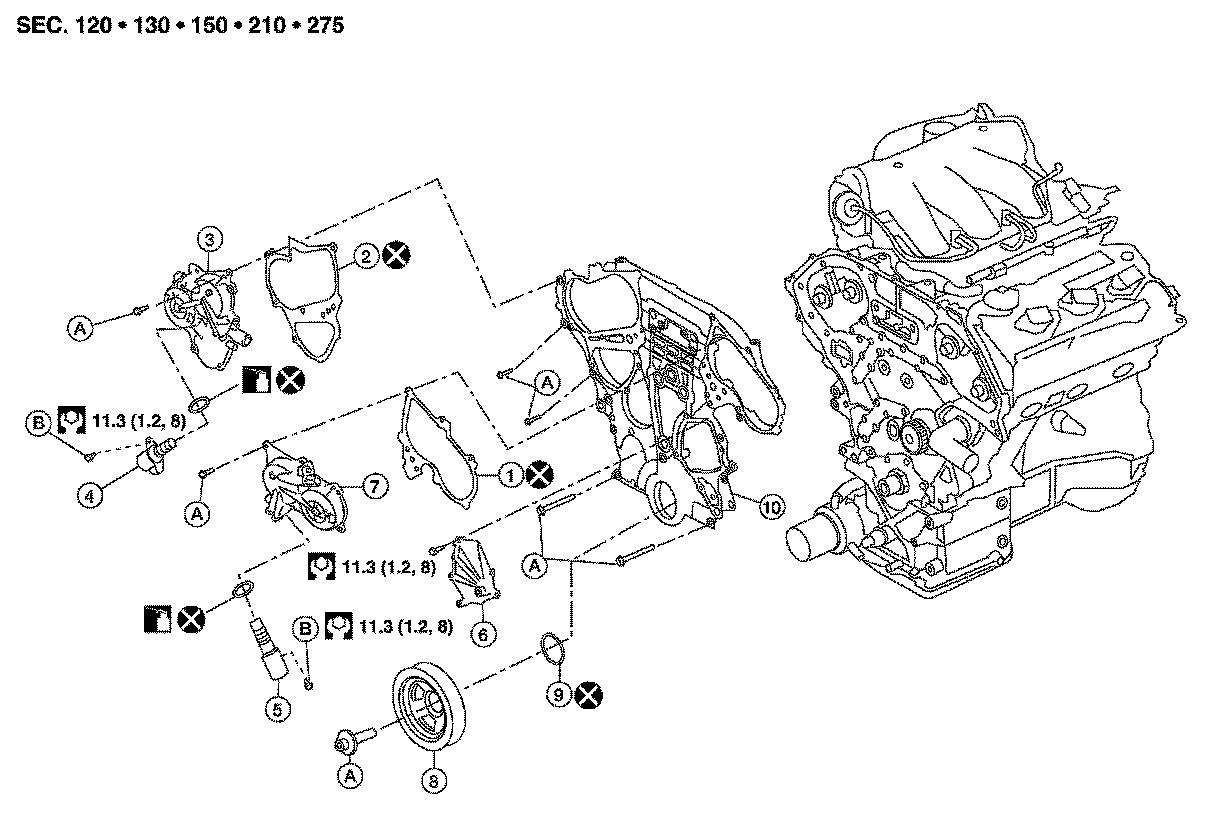

Exploded View
Exploded View
FRONT
TIMING CHAIN
CASE
Exploded View
