Home
>>
Nissan-Datsun
>>
2012
>>
Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Cooling System
>>
Cooling Circuit
Cooling Circuit
COOLING SYSTEM

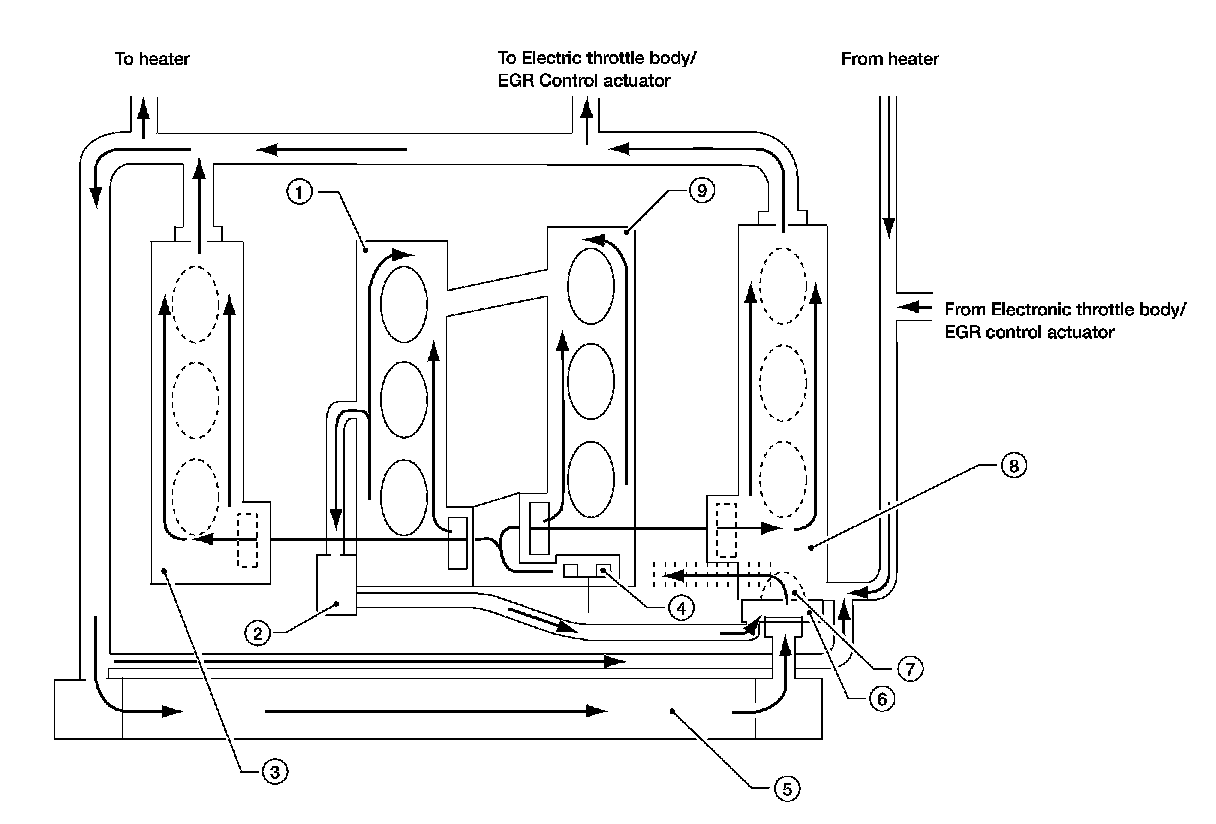

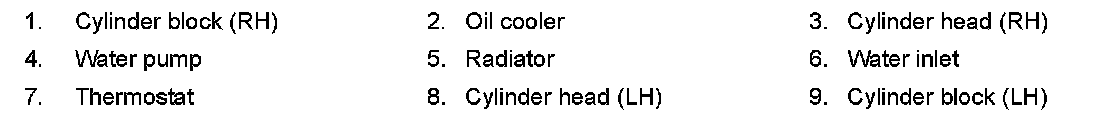

Cooling Circuit
