Nissan-Datsun
>>
2012
>>
Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate Switch
Trunk / Liftgate Switch
TRUNK LID OPENER

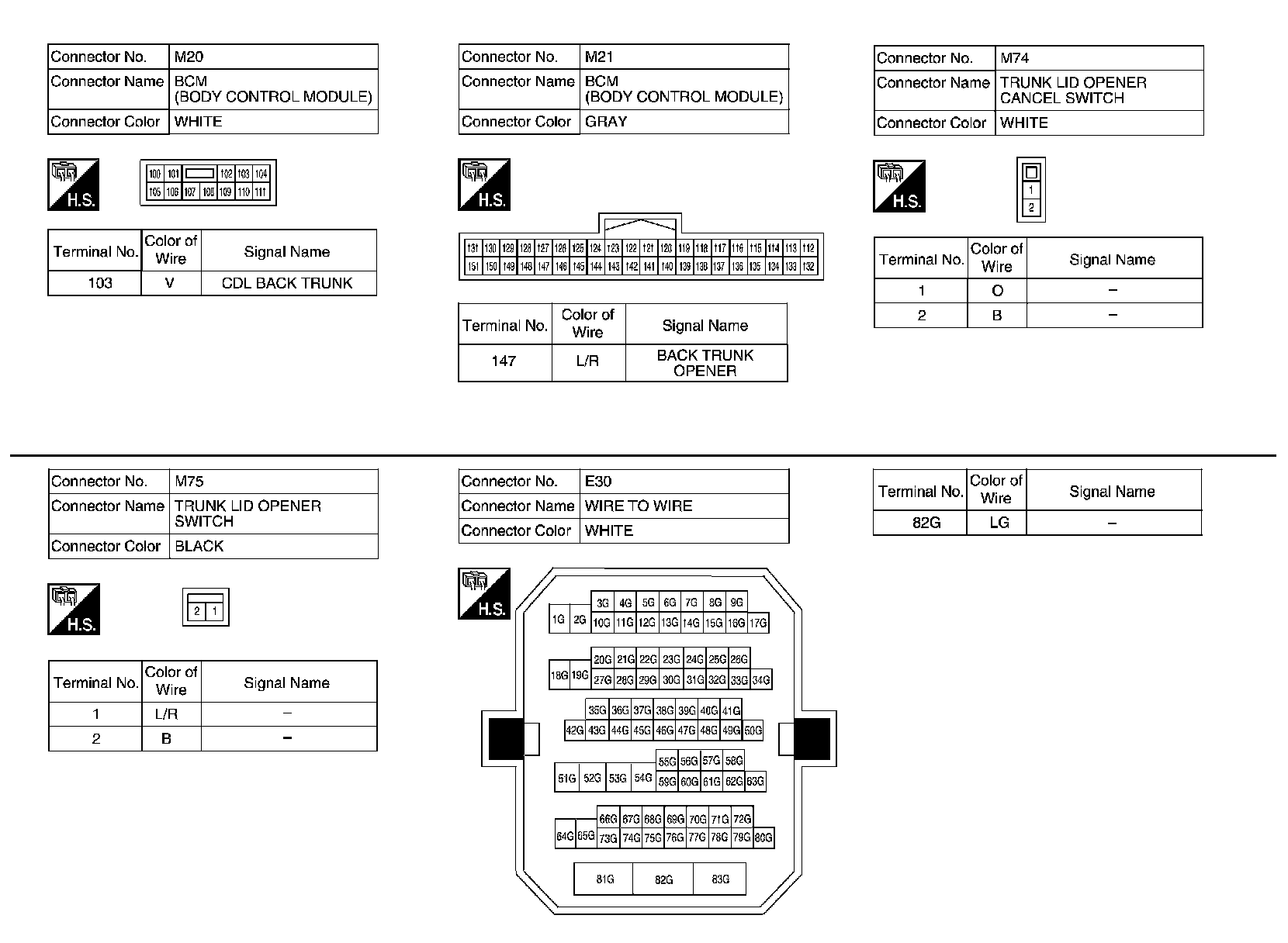

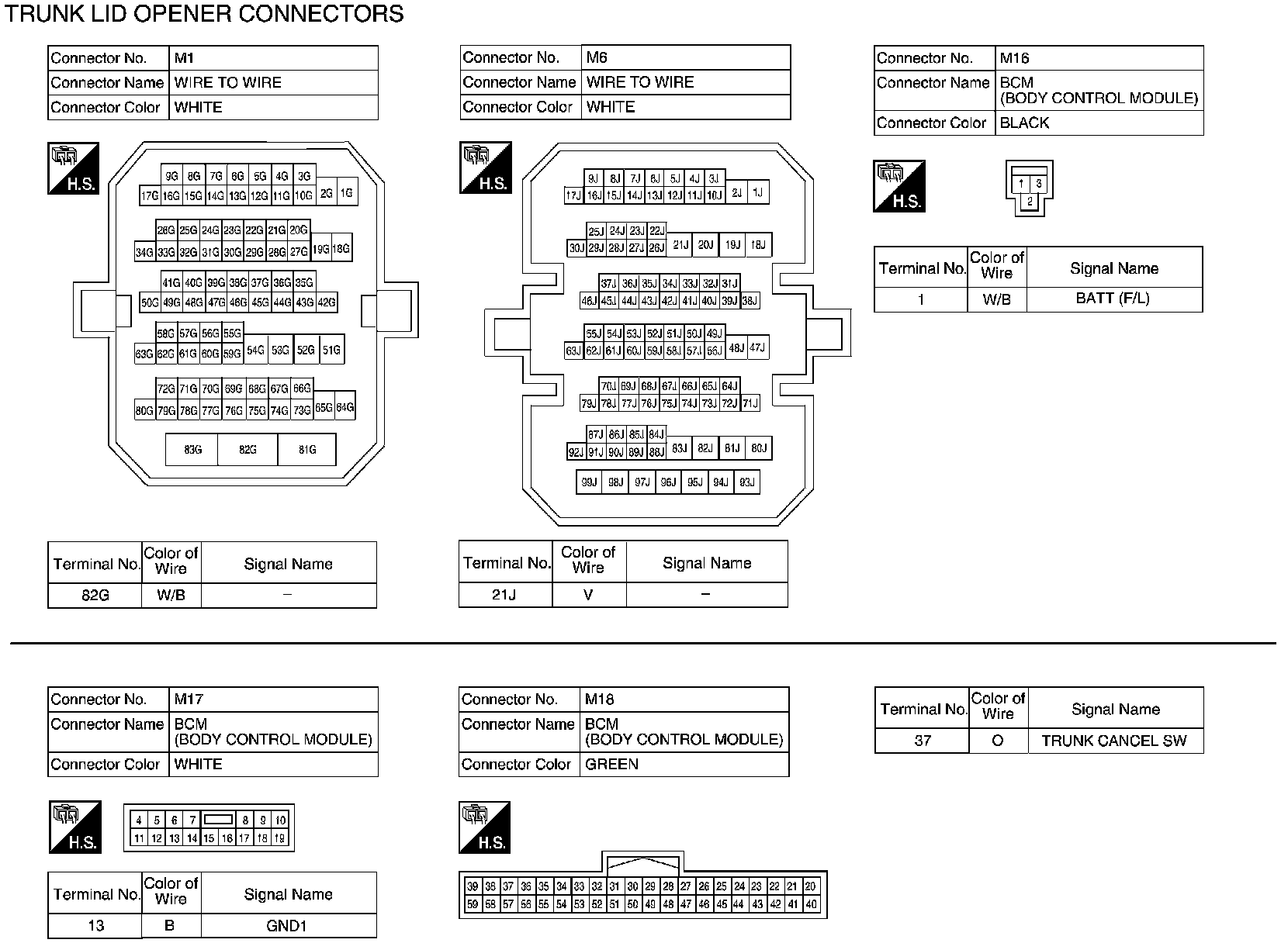

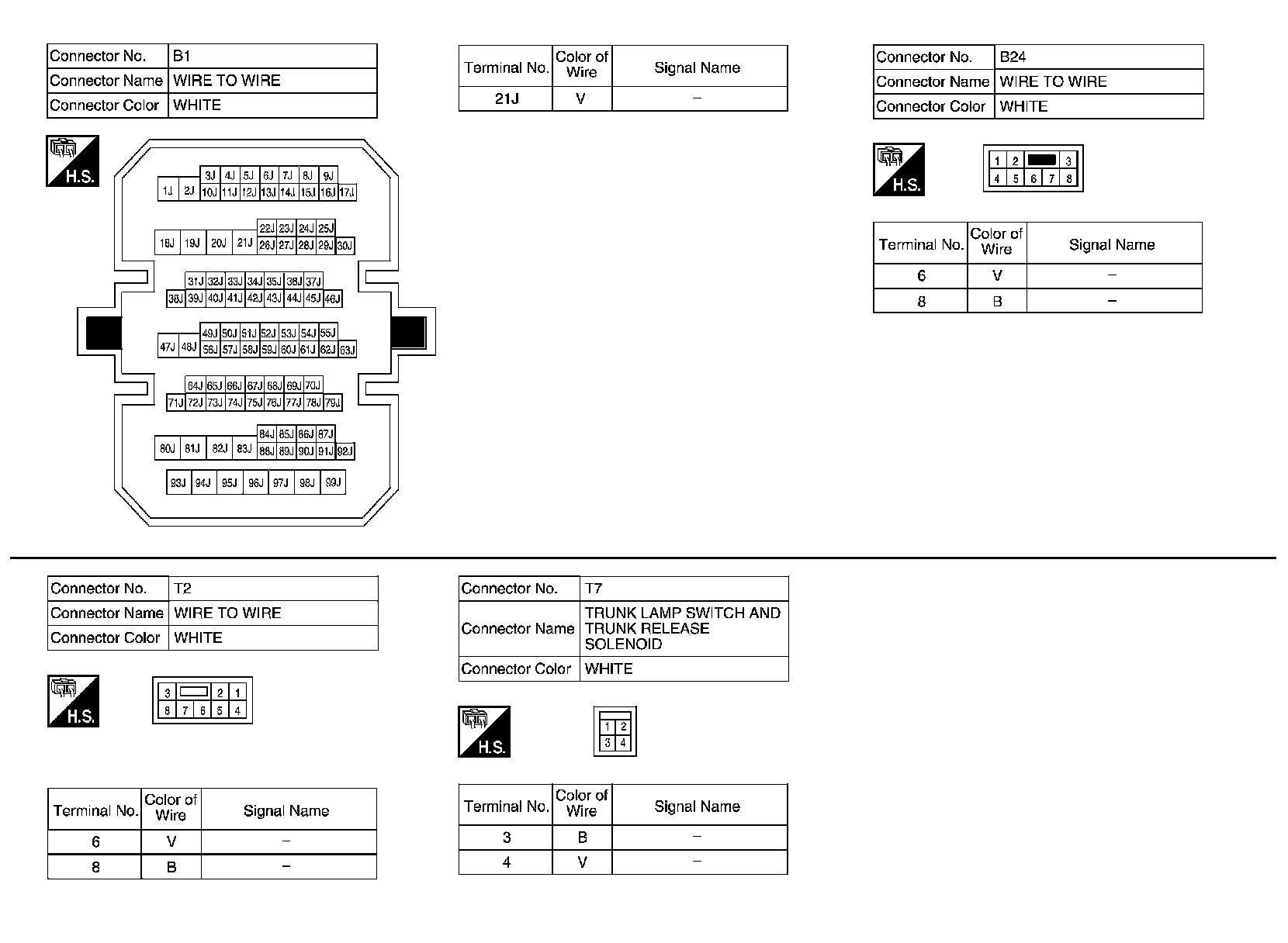

Wiring Diagram
