Home
>>
Nissan-Datsun
>>
2012
>>
Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tire Monitoring System
Tire Monitoring System
TIRE PRESSURE MONITORING SYSTEM

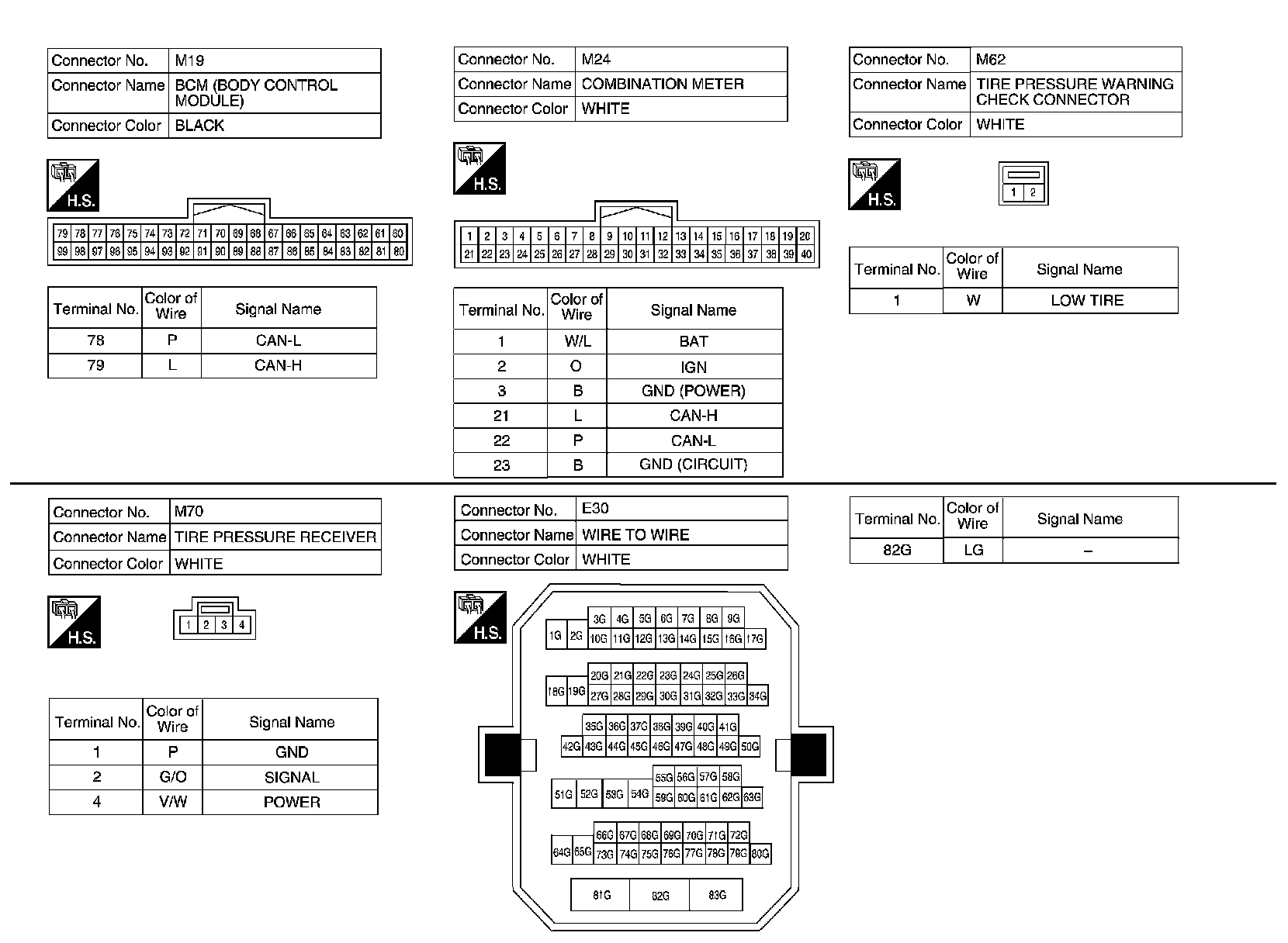

Wiring Diagram
