Seats
>>
Lumbar Support System
>>
With Climate Controlled Seats
With Climate Controlled Seats

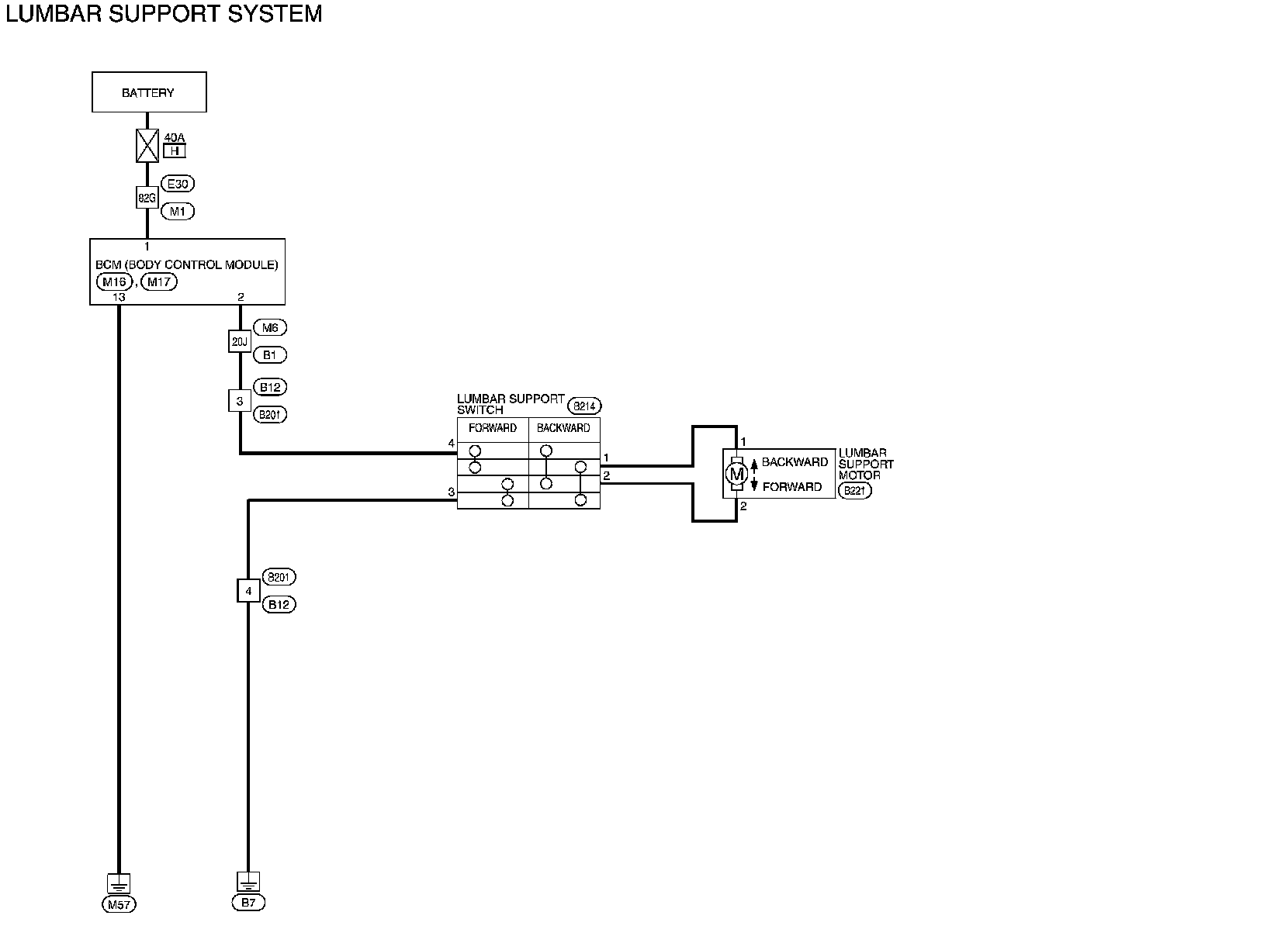

LUMBAR SUPPORT SYSTEM

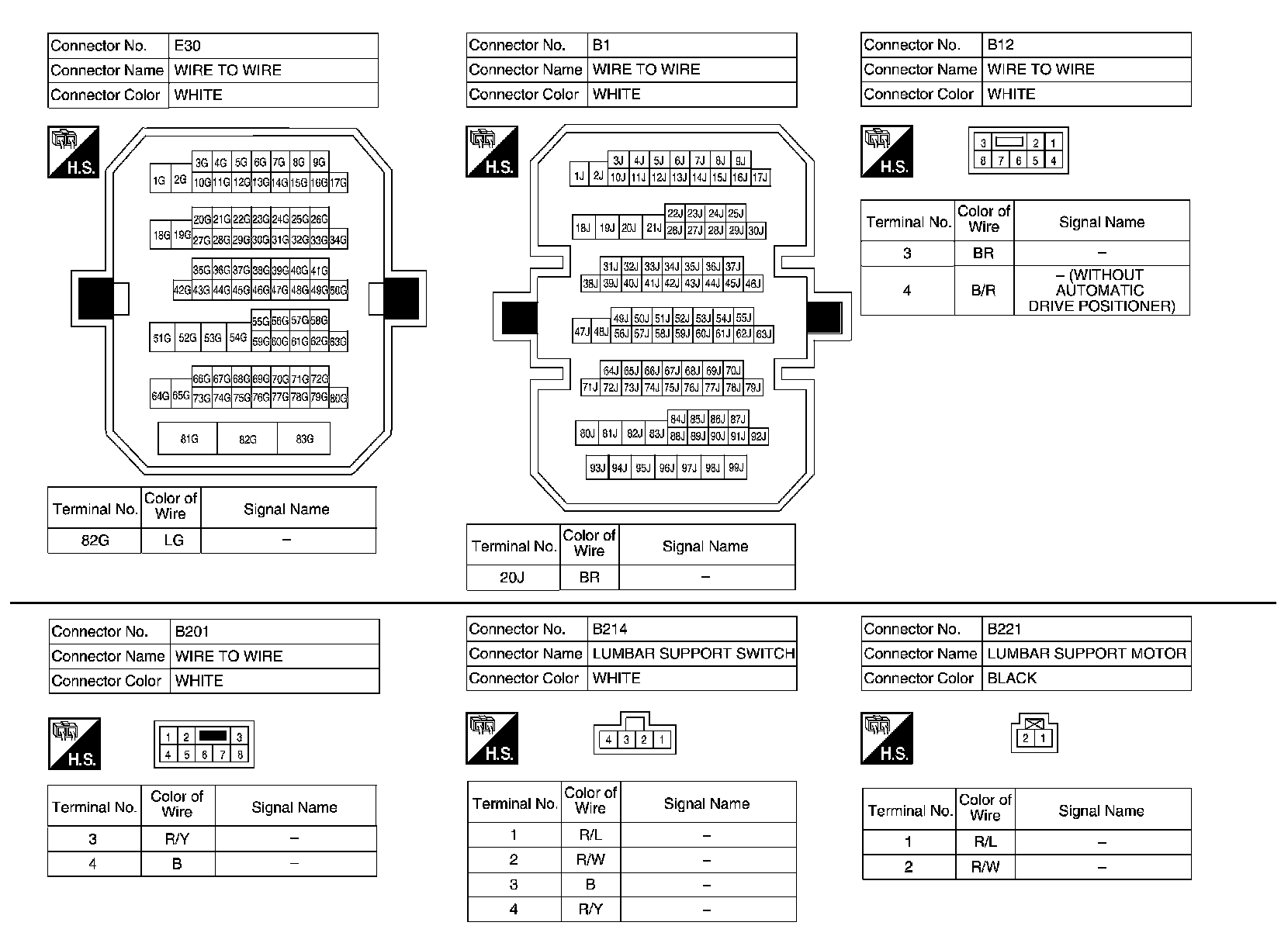

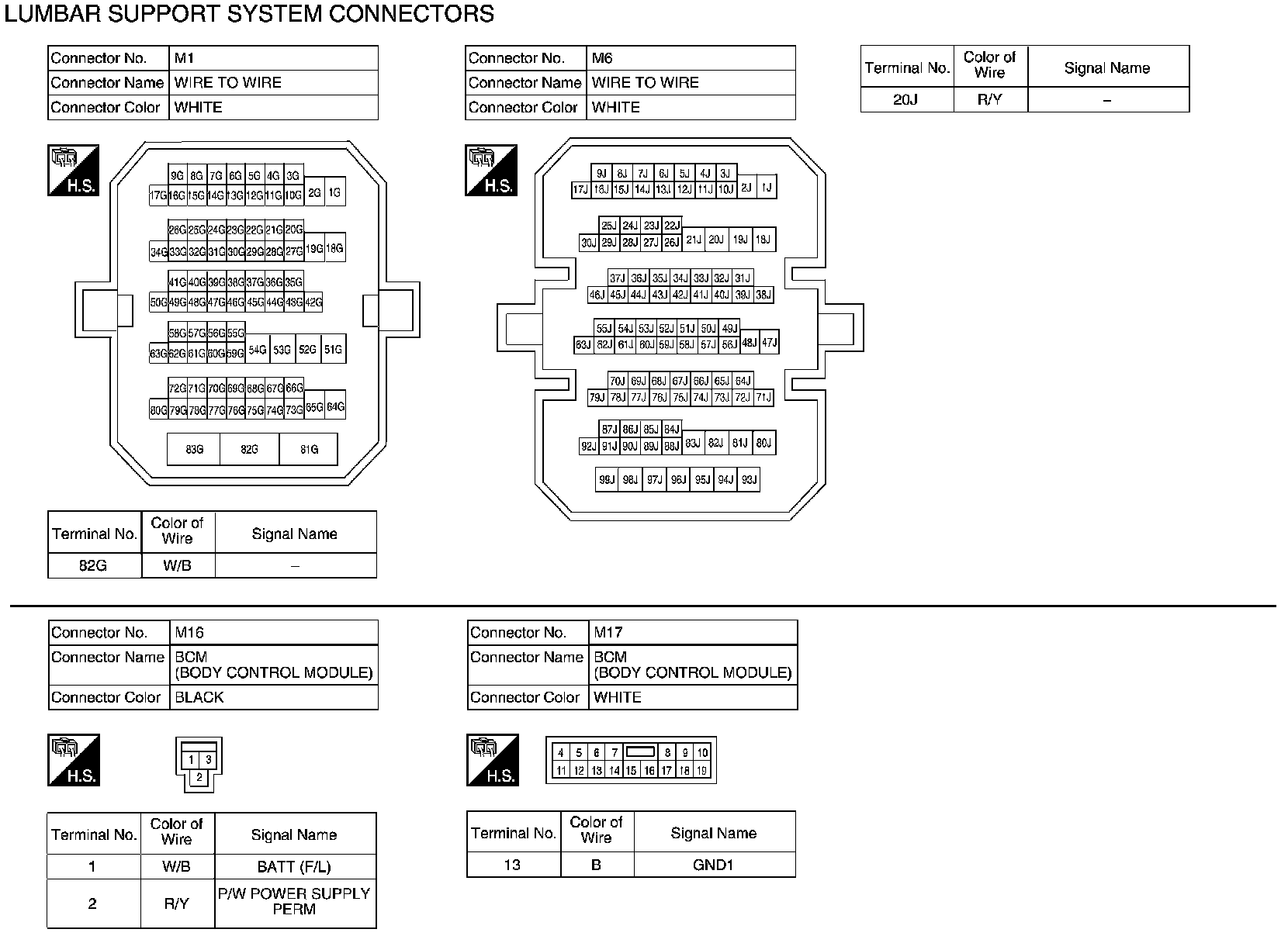

Wiring Diagram
