Removal and Installation

PARKING BRAKE CONTROL

Removal and Installation


REMOVAL

1.Remove rear wheel and tires using power tool.
2.Remove instrument lower panel (LH). Instrument Lower Panel LH.
3.Remove lower knee protector (LH). Exploded View.
4.Disconnect parking brake switch connector.

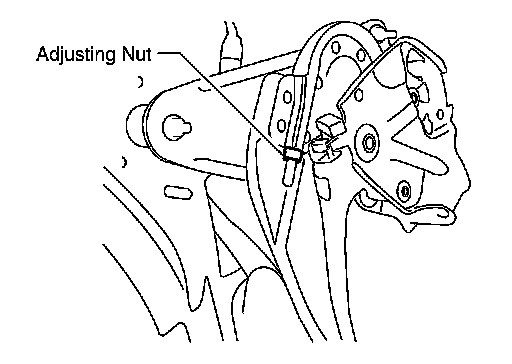

5.Remove adjusting nut and discard, then loosen the front cable.

CAUTION:
Do not reuse adjusting nut.
6.Remove parking brake pedal nuts and remove the parking brake pedal.
7.Remove center console. Removal And Installation.
8.Reposition the floor carpet aside.
9.Separate the LH and RH rear cables from the equalizer then remove the front cable.
10.Remove the front exhaust tube and the center exhaust tube. Removal And Installation.
11.Remove the exhaust center tube heat insulator.
12.Remove the rear brake disc rotors. Removal And Installation.
13.Disconnect the LH and RH rear cables from the toggle lever. Exploded View.
14.Remove the LH and RH rear cable bolts and nuts, then remove the LH and RH rear cables.

INSTALLATION

Installation is in the reverse order of removal.
- Exploded View for torque specifications.
- Adjust parking brake. Initial Inspection and Diagnostic Overview.

CAUTION:
Do not reuse adjusting nut.
