Replacement

BRAKE MASTER CYLINDER

Removal and Installation


CAUTION:
- Do not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
- Refill with new brake fluid.
- Never reuse drained brake fluid.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

REMOVAL

1.Remove the engine room cover.
2.Remove the air cleaner and air duct. Service and Repair.
3.Disconnect brake fluid level switch harness connector.
4.Disconnect master cylinder brake tubes, using a suitable tool.
5.Remove master cylinder nuts, master cylinder assembly and O-ring.

CAUTION:
Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

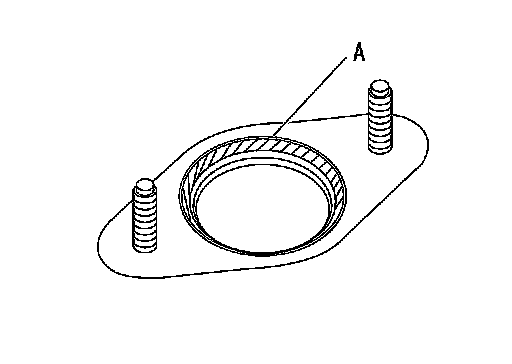

- Apply silicone grease to brake booster at position (A) as shown, be sure the O-ring is in proper position when installing master cylinder to brake booster.
- Do not reuse O-ring.
- Tighten brake tube flare nut to the specified torque using a suitable tool. Diagrams.
- Refill the brake hydraulic system with new brake fluid and bleed brake system. Service and Repair.
