Inspection Of Rotor

FRONT DISC BRAKE

DISC ROTOR : Inspection of Rotor


VISUAL

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace as necessary.

RUNOUT






1.Attach disc rotor to wheel hub using wheel nuts (at two or more positions).

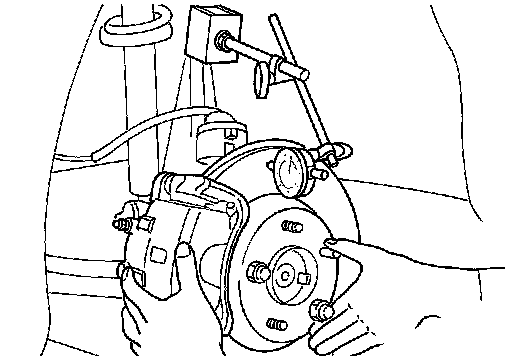

2.Inspect runout using a dial gauge placed at 10 mm (0.39 in)
inside the disc edge.
Runout limit: Front Disc Brake.
(with it attached to the vehicle)

NOTE:
Before measuring, make sure that wheel bearing axial end play is within the specification. Testing and Inspection.
3.When runout exceeds limit value, displace mounting positions of disc rotor by one hole. Then find a position of the minimum value for runout.
4.If runout is outside the specified value after performing the above operation, refinish disc rotor using Tool.
Tool number: 38-PFM-90.5

THICKNESS

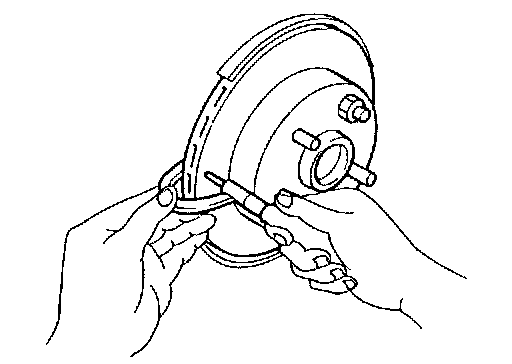

Check thickness of the disc rotor using a micrometer. Replace disc rotor if thickness is under the wear limit.
Standard thickness: Front Disc Brake.
Repair limit thickness: Front Disc Brake.
Thickness variation: Refer to "Front
(Measured at 8 positions)Disc Brake".
